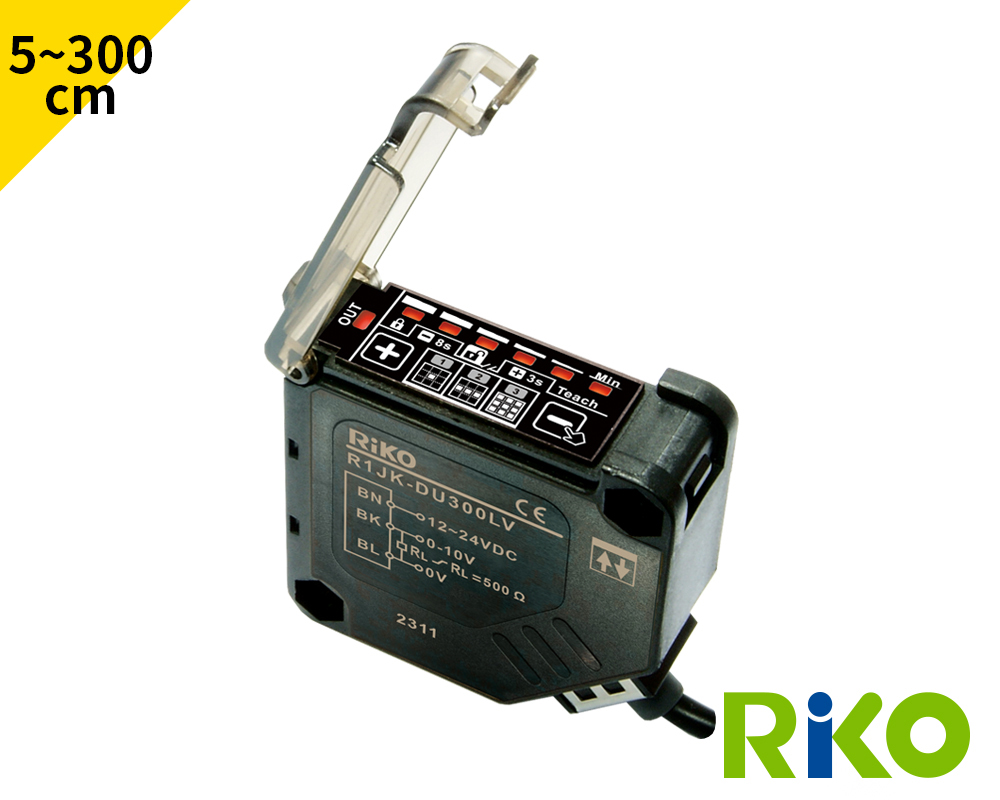

R1JK-DU300LV TOF Long Sensing Range Photo Sensor
• Three selectable receiving angles.
• Relay output.
• 0 ~ 10V linear output.
• 0 ~ 20 mA linear output.
• Suppression of the difference between colors of detecting objectives.
Description
Specification
| Model | TOF Long Sensing Range Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection / 擴散反射式 |
| Detection distance | 5 ~ 300 cm White paper 30 x 30 cm |
| Light Emitter | 940nm VCSEL Class |
| Operating voltage | DC12 ~ 24 V |
| Current consumption | 80 mA Max. |
| Load current | 25 mA Max. |
| Model / Type | 500Ω 0~10V |
| Response time | 15 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ ( No freezing allowed ) |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP 65 |
| Casing material | ABS |
| Wiring method | Pre-weird Ø4.2 x 2 M / 3-wires |
| Weight | 75g |
