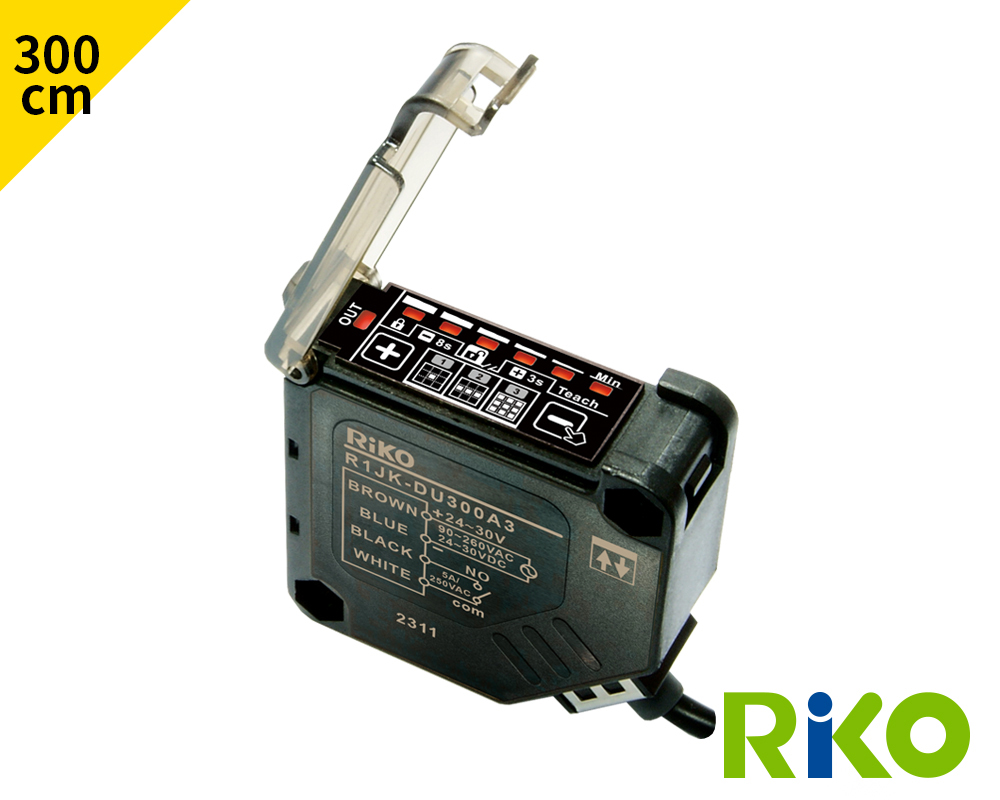

R1JK-DU300A3 TOF Long Sensing Range Photo Sensor
• Three selectable receiving angles.
• Relay output.
• 0 ~ 10V linear output.
• 0 ~ 20 mA linear output.
• Suppression of the difference between colors of detecting objectives.
Description
Specification
| Model | TOF Long Sensing Range Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection / 擴散反射式 |
| Detection distance | 300 cm White paper 30 x 30 cm |
| Light Emitter | 940nm VCSEL Class |
| Operating voltage | AC90 ~ 260V , DC24 ~ 30V |
| Current consumption | 30 mA Max. |
| Load current | Relay：DC30V 5A / AC250V 5A |
| Model / Type | Relay out：Com./NO. |
| Response time | 15 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ ( No freezing allowed ) |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP 65 |
| Casing material | ABS |
| Wiring method | Pre-weird Ø4.2 x 2 M / 4-wires |
| Weight | 75g |
