BR501-NV Analog output fiber Amplifier
• 0 ~ 10V / NPN L.on / D.on linear output.
• Numeric displays, interactive prompts.
• Surge suppression and overload protection.
• It could be setting to analog output between min.and max. working distance.
Description

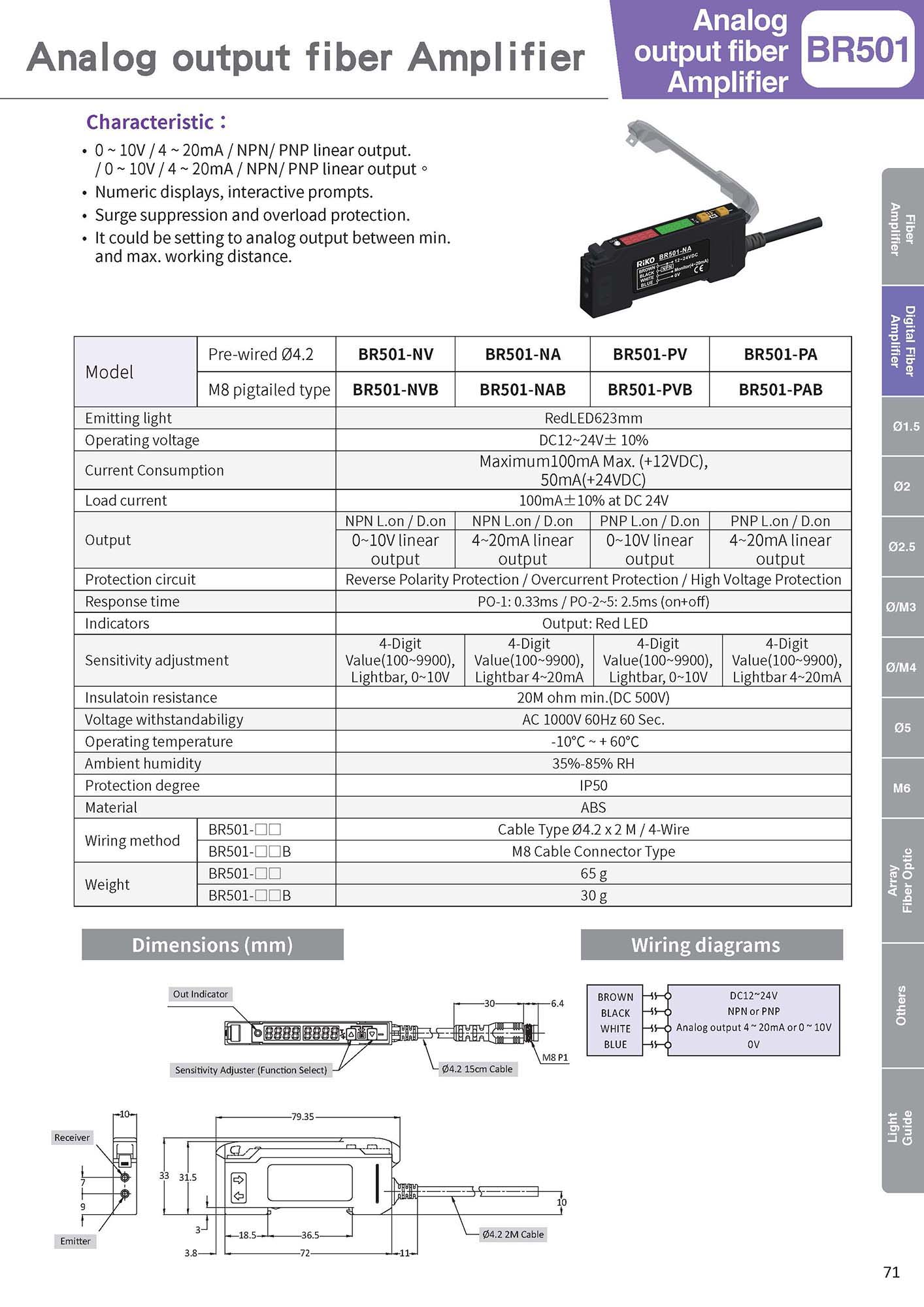

Specification
| Light Emitter | RED LED 623nm |
|---|---|
| Operating voltage | DC12 ~ 24 ± 10% |
| Current consumption | 100mA Max. (+12VDC),50mA(+24VDC) |
| Load current | 100mA ± 10% at DC 24V |
| Model / Type | NPN L.on / D.on, 0~10V Linear Output |
| Protection circuit | Reversed Supply circuit protection. |
| Reaction time | PO-1: 0.33ms / PO-2~5: 2.5ms (on+off) |
| Indictors | Red LED |
| Sensitivity adjustment | 4-digit value(100~9900),Lightbar, 0~10V |
| Insulation resistance | 20M Ω (DC500V) |
| Opera tetemperature | - 10 °C ~ + 60 °C |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP50 |
| Casing material | ABS |
| Wiring method | Cable Type Ø4.2 x 2 M / 4-Wire |
| Weight | 65 g |
