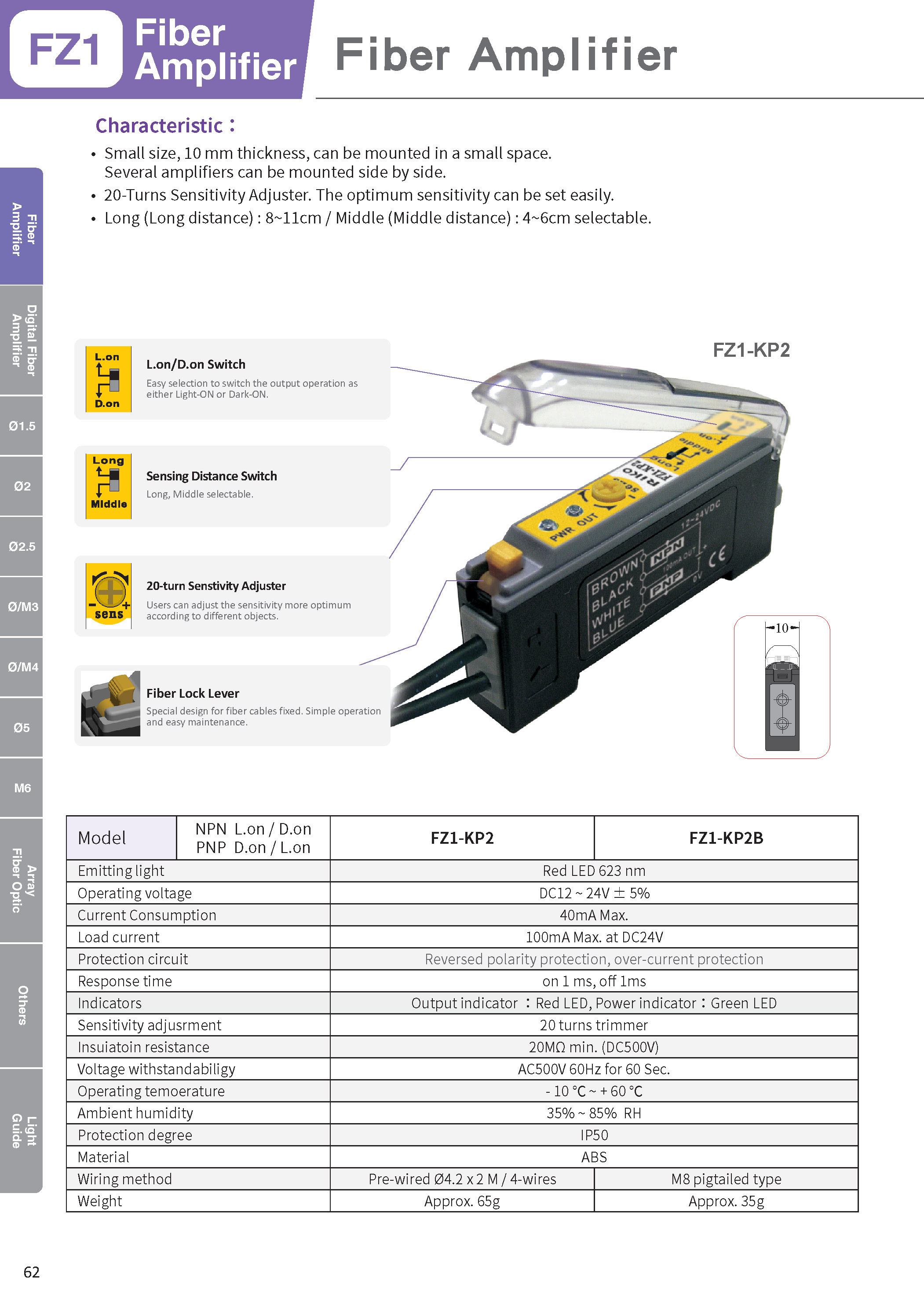

FZ1-KP2 Fiber Amplifier

• Small size, 10 mm thickness, can be mounted in a small space.
Several amplifiers can be mounted side by side.
• 20-Turns Sensitivity Adjuster. The optimum sensitivity can be set easily.
• Long (Long distance) : 8 - 11 cm / Middle (Middle distance) : 4 - 6cm selectable.

Description



Specification
Light Emitter Red LED 680nm
Operating voltage DC12 ~ 24V ± 5%
Current consumption 40mA Max.
Load current 100 mA Max. at DC 24 V
Protection circuit Reversed polarity protection , over - current protection.
Reaction time on 1 ms, off 1ms
Indictors Output indicator : Red LED , Power indicator : Green LED
Sensitivity adjustment 20 turns trimmer
Insulation resistance 20MΩ min. (DC500V)
Voltage withstandability AC500V 60Hz for 60 Sec.
Opera tetemperature - 10 ℃ ~ + 60 ℃
Operating temperature 35% ~ 85% RH
Protection degree IP50
Casing material ABS
Wiring method Pre-wired Ø4.2 x 2 M / 4-wires
Option FZ1 Bracket
Weight Approx. 65 g
