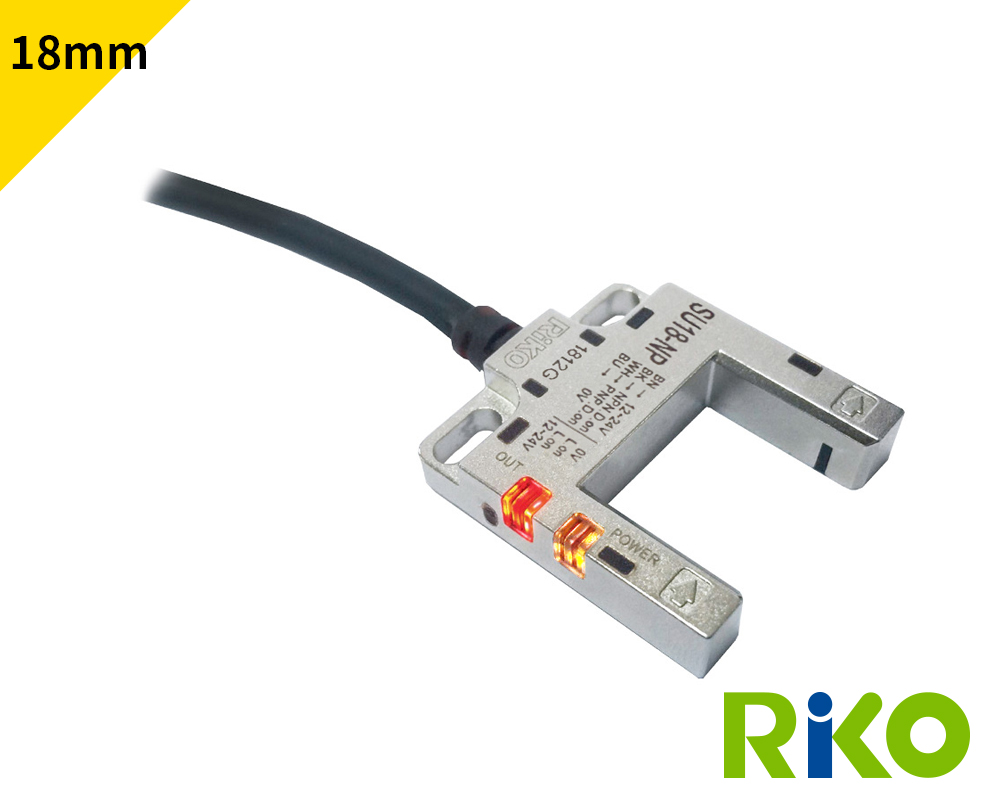

SU18-NP Photo Sensor
• Compact and durable.
• Wide vane, 18 mm (DC-light type).
• SU18 has a better prevention of outside light.
Description

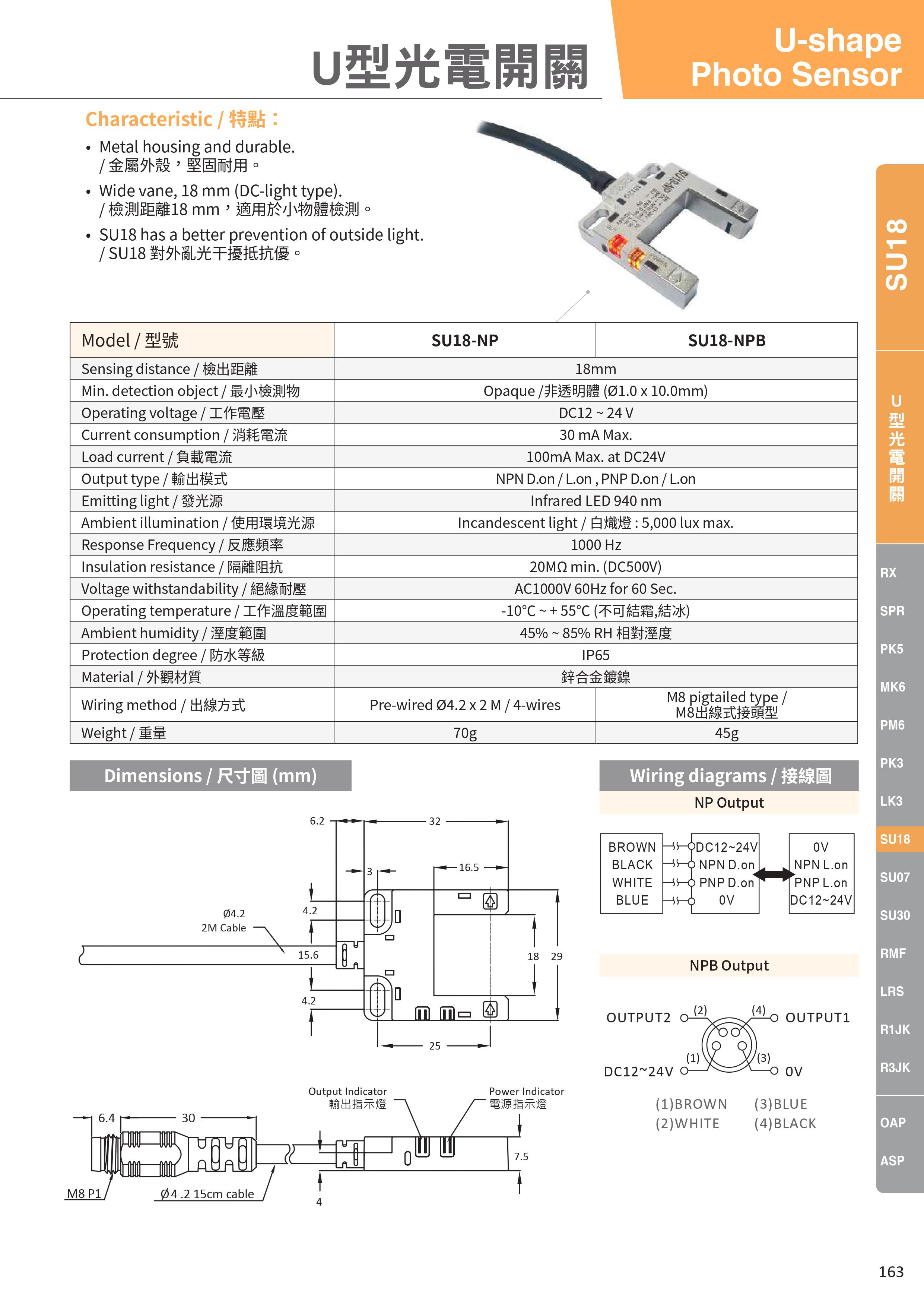

%E7%9B%AE%E9%8C%84%20(163).jpg)
Specification
| Model | U-shape Photo Sensor |
|---|---|
| Detection distance | 18mm |
| Minimum detectable object | Opaque ( Ø1.0 x 10.0mm ) |
| Light Emitter | Infrared LED 940 nm |
| Operating voltage | DC12 ~ 24 V |
| Current consumption | 30 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN D.on / L.on , PNP D.on / L.on |
| Response time | 1000 Hz |
| Ambient illumination | Incandescent light : 5,000 lux max. |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -10℃ ~ + 55℃ |
| Ambient humidity | 45% ~ 85% RH |
| Protection degree | IP65 |
| Casing material | 鋅合金鍍線 |
| Wiring method | Pre-wired Ø4.2 x 2 M / 4-wires |
| Weight | 70g |
