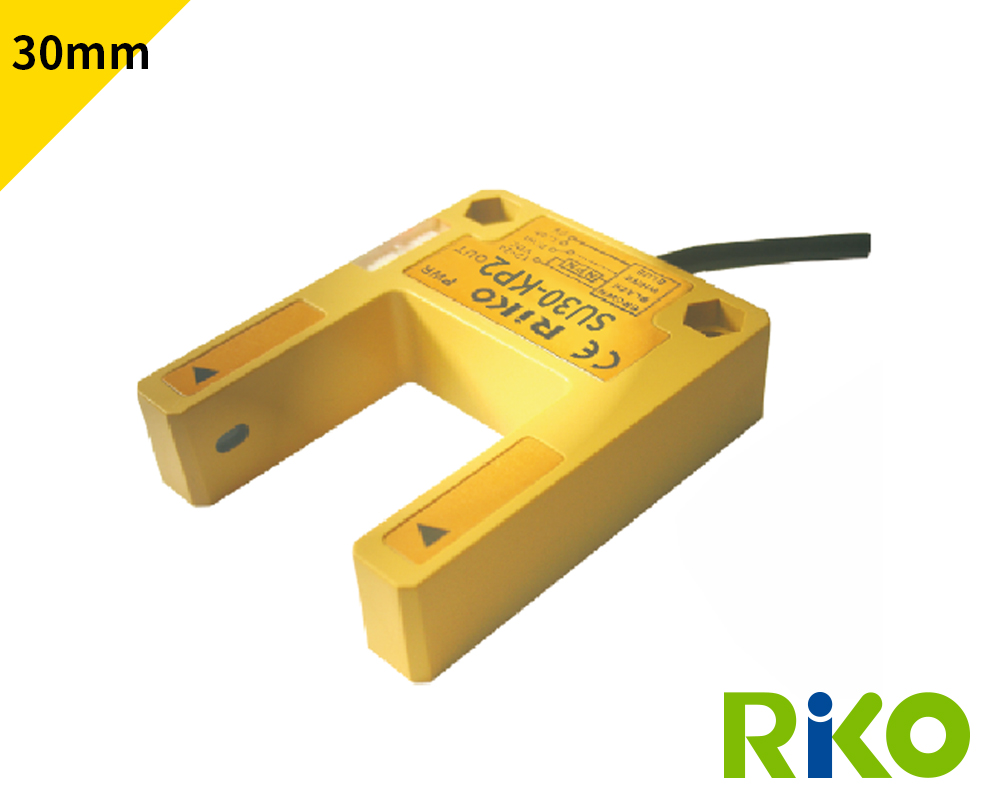

SU30-KP2 Photo Sensor

• Wide sensing range : 30 m.
• Two indicators (power/sensing). Easy to recognize.

Description

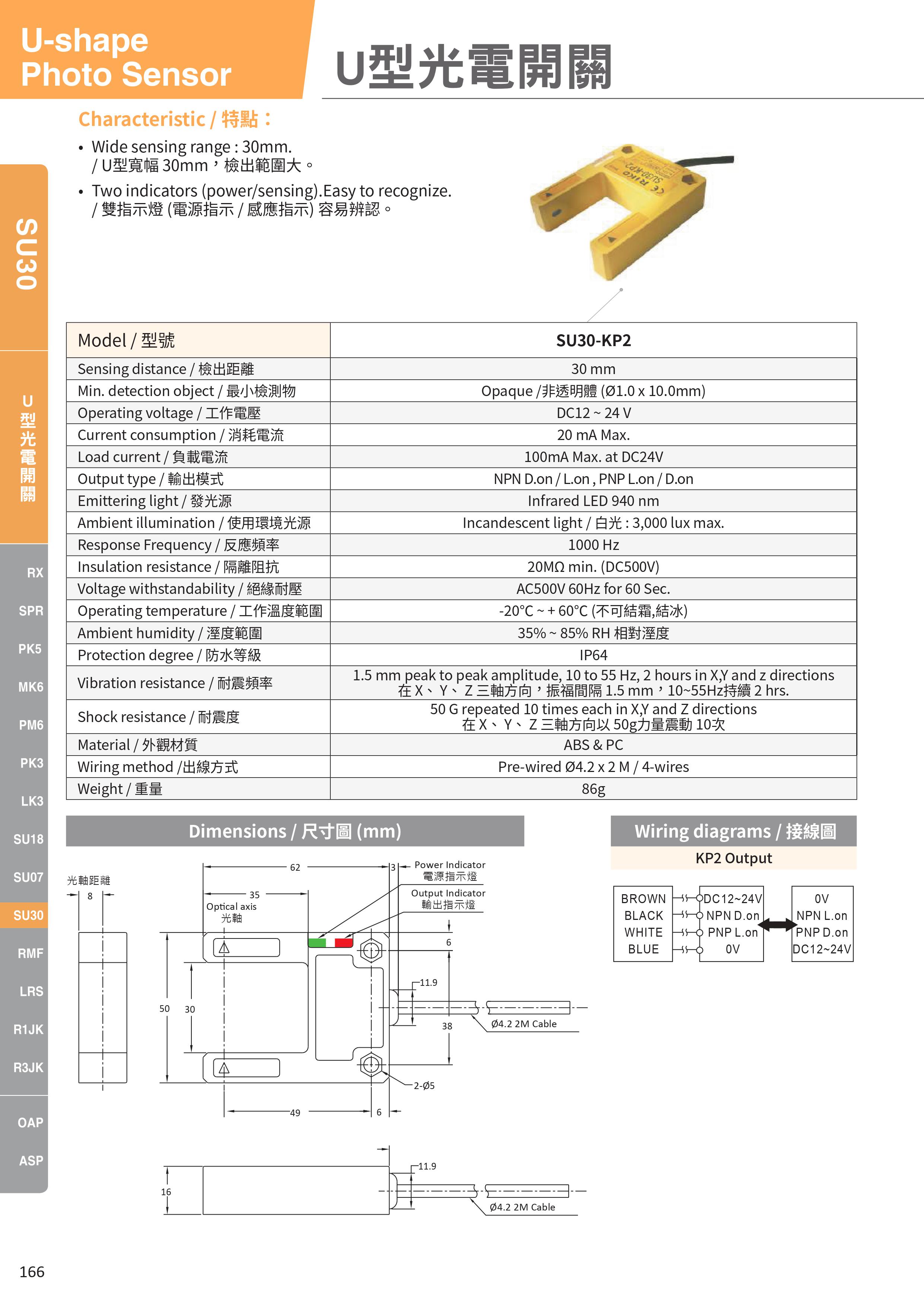

Specification
Model U-shape Photo Sensor
Sensing distance 30mm
Minimum detectable object Opaque ( Ø1.0 x 10.0mm )
Emitting light Infrared LED 940 nm
Operating voltage DC12 ~ 24V
Current consumption 20 mA Max.
Load current 100mA Max. at DC24V
Model / Type NPN L.on / D.on PNP L.on /D.on
Response time 1000 Hz
Ambient illumination Incandescent light : 3,000 lux max.
Insulation resistance 20MΩ min. (DC500V)
Voltage withstandability AC500V 60Hz for 60 Sec.
Opera tetemperature -20℃ ~ + 60℃
Ambient humidity 35% ~ 85% RH
Protection degree IP64
Vibration resistance 1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions
Shock resistance 50 G repeated 10 times each in X,Y and Z directions.
Casing material PC
Option M124R-PVC-2M
Wiring method Pre-wired Ø4.2 x 2M / 4-wires
Weight 86g
