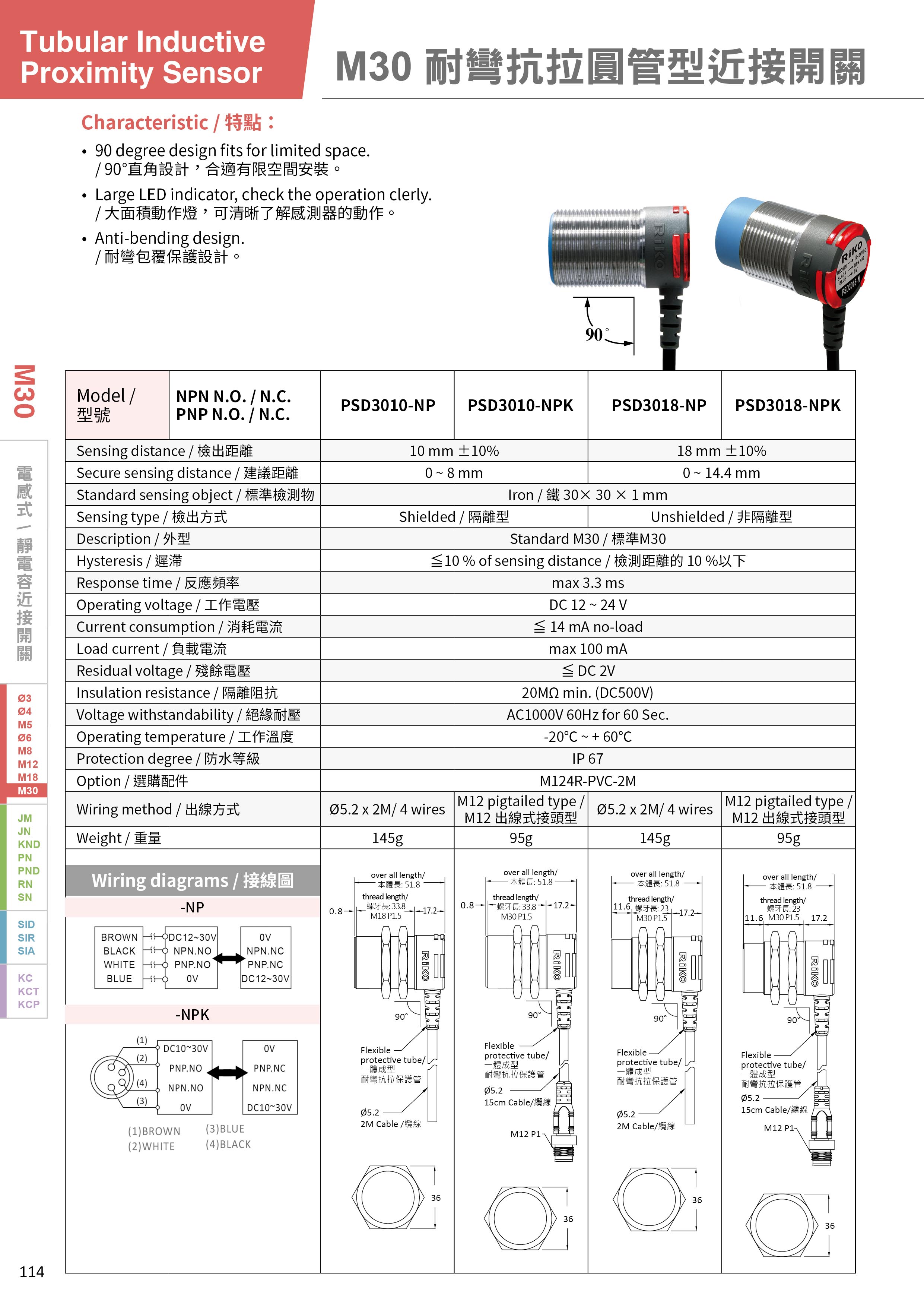

PSD3010-NPK Tubular Inductive Proximity Sensor
• 90 degree wiring saving space.
• Large LED indicator, check the operation clearly.
• Anti-bending connection design.
Description
.jpg)
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 10 mm ± 10% |
| Model / Type | NPN N.O. / N.C. PNP N.O. / N.C. |
| Secure sensing distance | 0 ~ 8 mm |
| Standard sensing object | Iron 30 x 30 x 1 mm |
| Sensing distance | Shielded |
| Description | Standard M30 |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | max 3.3 ms |
| Operating voltage | DC 12 ~ 24 V |
| Current consumption | ≦ 14 mA no-load |
| Load current | max 100 mA |
| Residual voltage | ≦ DC 2 V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Option | M124R-PVC-2M |
| Wiring method | M12 pigtailed type / M12 出線式接頭型 |
| Weight | 95g |
