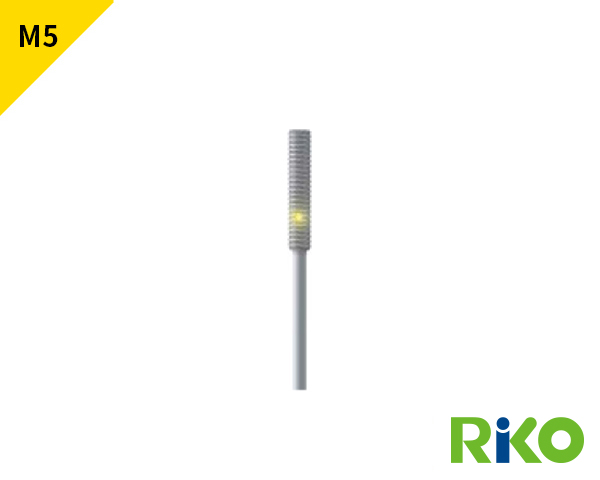

SC0501-N Proximity Sensor
• Miniature Dimensions Ø5mm x 26 mm.
• Integrated Amplifier, Three wires connection straight out.
• Stainless Housing, flexible cable (PUR).
• Short Circuit / Reverse Polarity Protected.
• Protection rating IP67.
Description
%E7%9B%AE%E9%8C%84%20(213).jpg)
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 0.8 mm |
| Secure sensing distance | 0.6 mm |
| Standard sensing object | Iron 5x5x1 mm |
| Sensing distance | Shielded |
| Description | Standard M5 |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 2000 Hz |
| Operating voltage | DC 10 ~30 V |
| Current consumption | ≦ 10 mA no-load |
| Load current | 200 mA Max. |
| Residual voltage | ≦ DC 1.5v (200 mA) |
| Voltage withstandability | AC 1000V 60Hz for 60 sec. |
| Opera tetemperature | -20℃ ~ + 70℃ |
| Protection degree | IP 67 |
| Wiring method | Ø3.1 x 2M / 3 wires |
| Weight | 26g |
