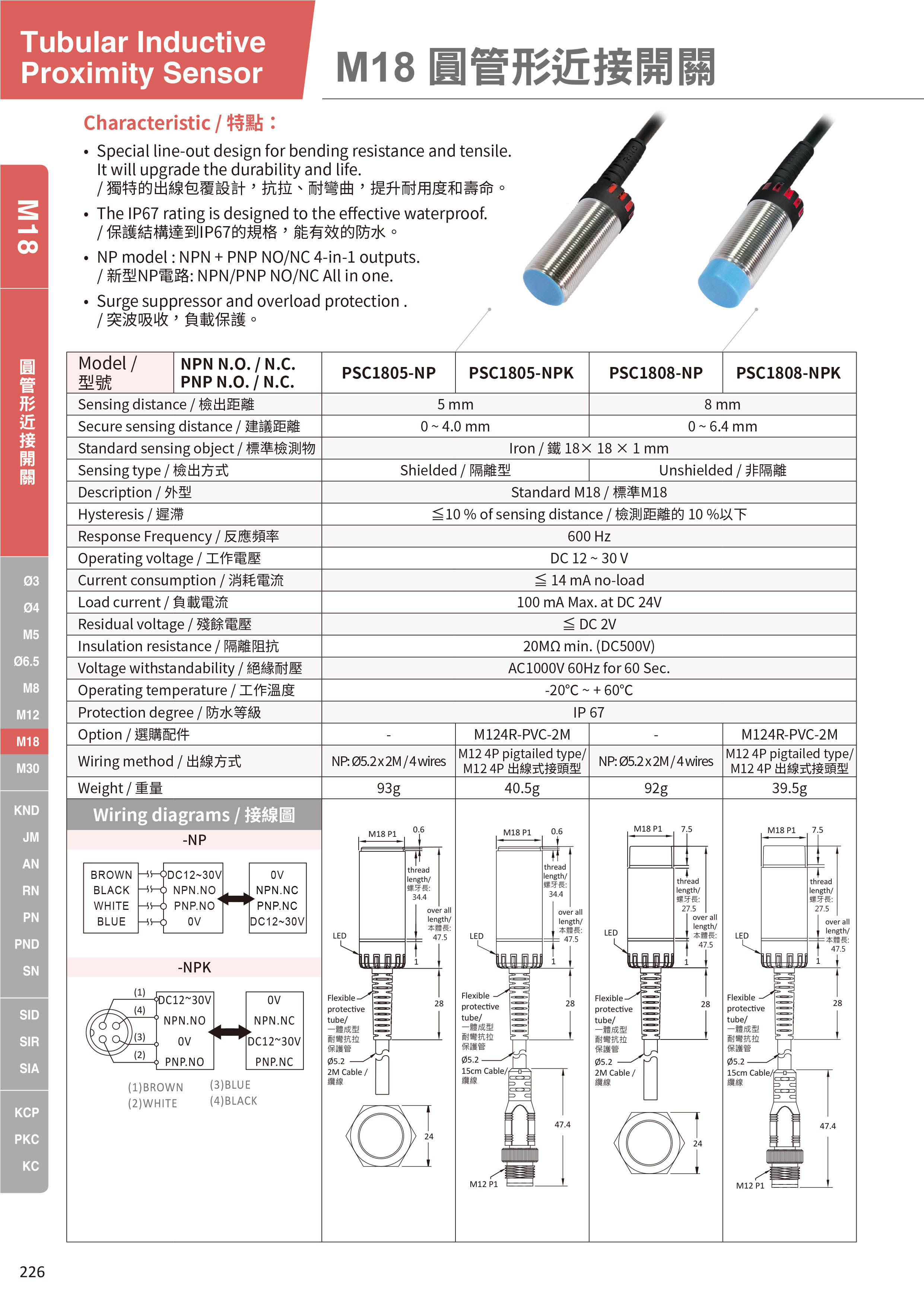

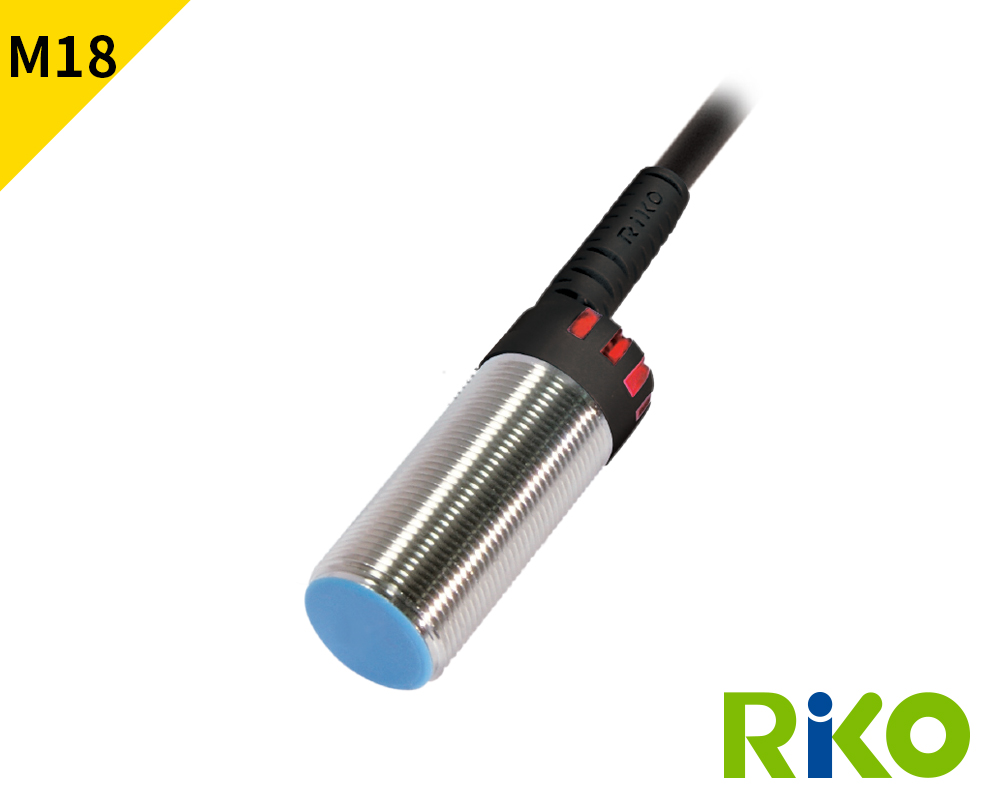

PSC1805-NP Tubular Inductive Proximity Sensor

• Special line-out design bending resistance and tensile it will upgrade the durability and life.
• The IP67 rating is designed to the effective waterproof.

Description

Specification
Model Tubular Inductive Proximity Sensor
Detection distance 5 mm ± 10%
Model / Type NPN N.O. / N.C. PNP N.O / N.C.
Secure sensing distance 0 ~ 4.0 mm
Standard sensing object Iron 18 x 18 x 1 mm
Sensing distance Shielded
Description Standard M18
Hysteresis ≦ 10 % of sensing distance
Response time max 2 ms
Operating voltage DC 12 ~ 24 V
Current consumption ≦ 14 mA no-load
Load current 100 mA Max. at DC 24V
Residual voltage ≦ DC 2V
Insulation resistance 20MΩ min. (DC500V)
Voltage withstandability AC1000V 60Hz for 60 Sec.
Opera tetemperature -20℃ ~ + 60℃
Protection degree IP 67
Option M124R-PVC-2M
Wiring method Ø5.2 x 2M / 4 wires
Weight 93g
