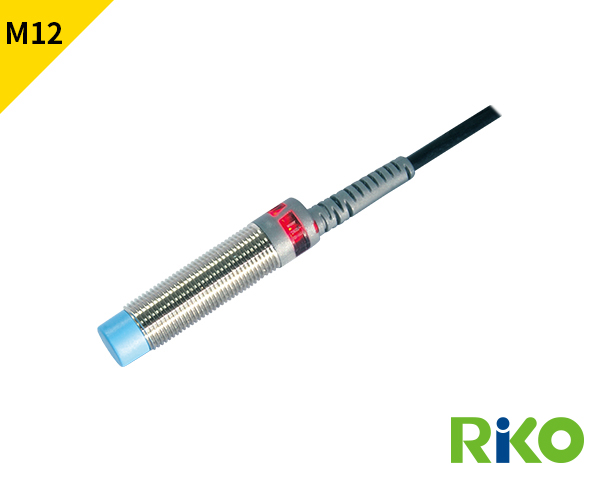

PSC1208-NP Tubular Inductive Proximity Sensor
• Special line-out design bending resistance and tensile it will upgrade the durability and life.
• Large LED indicator, check the operation clerly.
• Surge suppressor and overload protection.
Description
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 8 mm ± 10% |
| Secure sensing distance | 0 ~ 6.4 mm |
| Standard sensing object | Iron 12 x 12 x 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M12 |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 1000 Hz |
| Operating voltage | DC 12 ~ 24 V |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Wiring method | Ø4.2 x 2M / 4 wires |
| Weight | 66g |
