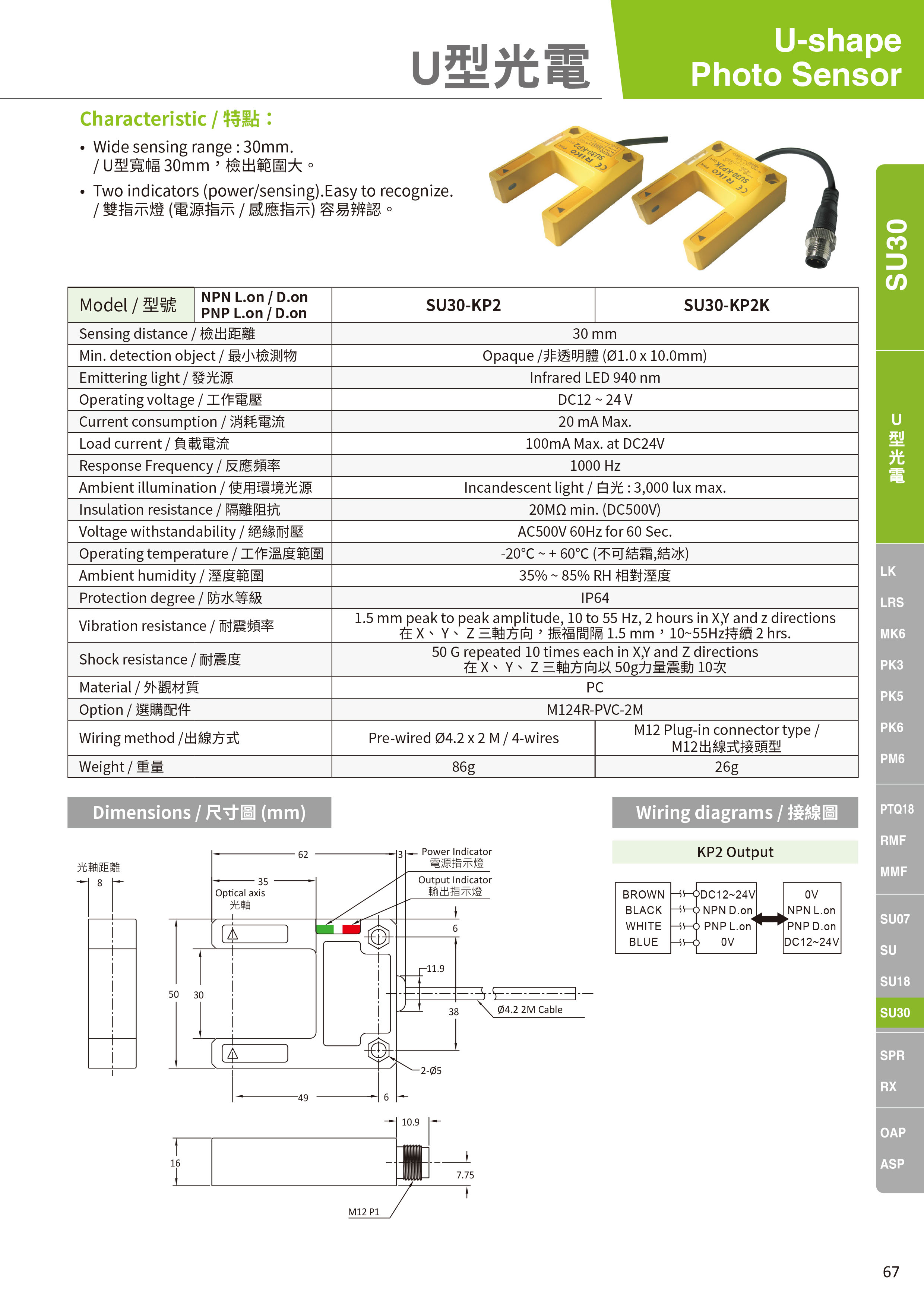

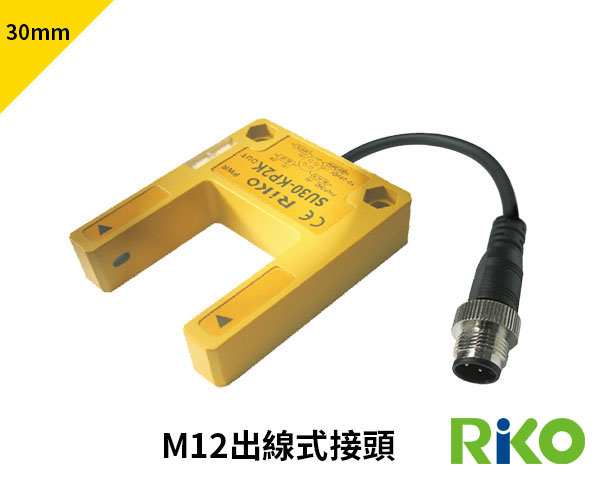

SU30-KP2K Photo Sensor
• Wide sensing range : 30 m.
• Two indicators (power/sensing). Easy to recognize.
Description
Specification
| Model | U-shape Photo Sensor |
|---|---|
| Detection distance | 30mm |
| Minimum detectable object | Opaque ( Ø1.0 x 10.0mm ) |
| Light Emitter | Infrared LED 940 nm |
| Operating voltage | DC12 ~ 24V |
| Current consumption | 20 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN L.on / D.on PNP L.on /D.on |
| Response time | 1000 Hz |
| Ambient illumination | Incandescent light / 白光 : 3,000 lux max. |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC500V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Ambient humidity | 35% ~ 85% RH |
| Protection degree | IP64 |
| Vibration resistance | 1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions |
| Shock resistance | 50 G repeated 10 times each in X,Y and Z directions. |
| Casing material | PC |
| Option | M124R-PVC-2M |
| Wiring method | M12 Plug-in connector type |
| Weight | 26g |
