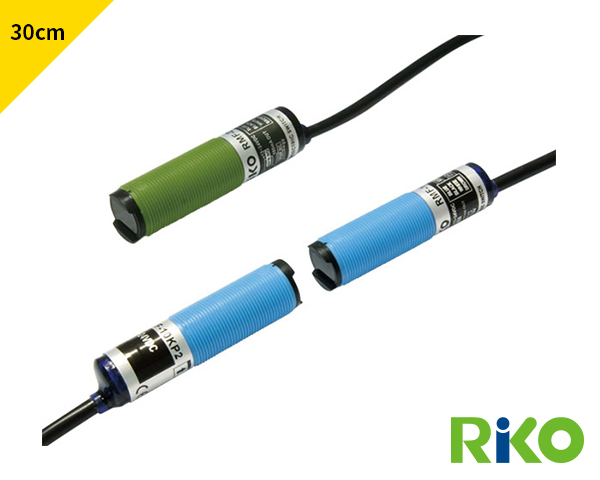

RMF-DU30KP2 Photo Sensor
• Standard M18 cylindrical metal tube.
• Threaded length = 35 mm.
• ABS barrel applied to factory environments.
Description
Specification
| Model | Tubular Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection |
| Detection distance | 30 cm，White paper 20 x 20 cm |
| Light Emitter | Infrared LED 875 nm |
| Operating voltage | DC12 ~ 24 V |
| Current consumption | 30 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN L.on / D.on PNP D.on / L.on |
| Response time | 650 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -25℃ ~ + 60℃ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP66 |
| Casing material | ABS |
| Wiring method | Pre-wired Ø4.2 x 2M / 4-wires |
| Option | M124R-PVC-2M / Bracket : MF-01 |
| Weight | 80g |
