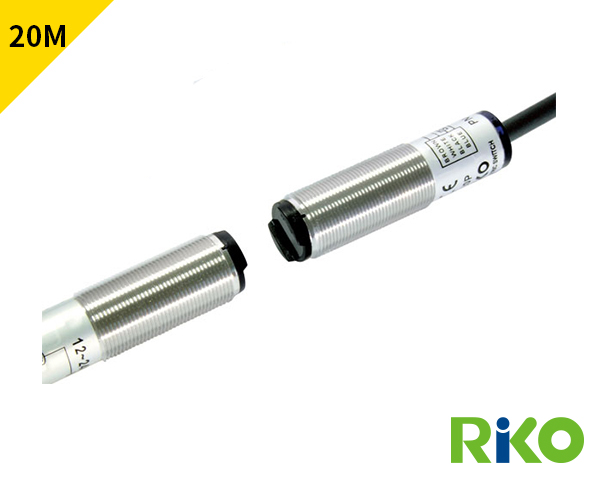

• Standard M18 cylindrical metal tube.
• Threaded length 35mm.
• Solid and durable.
Model | Thbular Photo Sensor |
---|---|
Sensing distance | Through beam |
Detection distance | 20M |
Light Emitter | Infrared LED 850 nm |
Operating voltage | DC12 ~ 24V |
Current consumption | 45 mA Max. |
Load current | 100mA Max. at DC24V |
Model / Type | NPN L.on / D.on |
Response time | 650 Hz |
Insulation resistance | 20MΩ min. (DC500V) |
Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
Opera tetemperature | -20℃ ~ + 60℃ (No freezing allowed) |
Operating temperature | 35% ~ 85% RH |
Protection degree | IP66 |
Casing material | Nickel plated brass |
Wiring method | (Receiver) Ø5.2 x 2M / 4-wires , (Emitter) Ø5.2 x 2M / 2-wires |
Option | M124R-PVC-2M , Bracket : MF-01 |
Weight | 210g |
