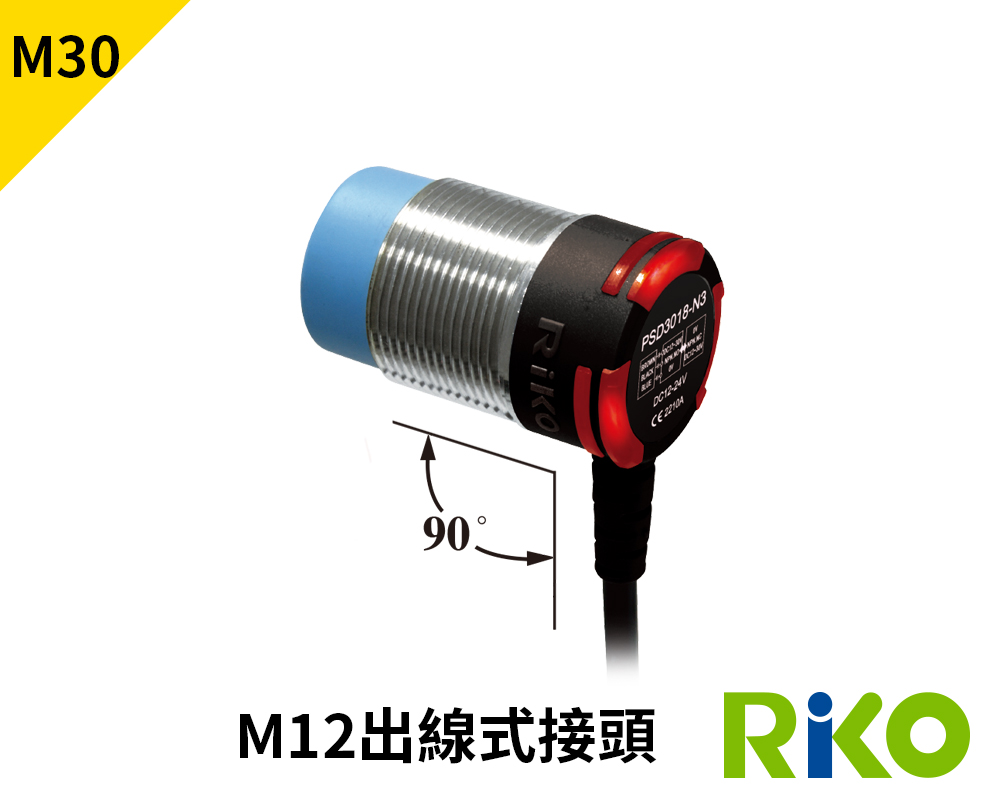

PSD3018-NPK Tubular Inductive Proximity Sensor
• 90 degree design fits for limited space.
•Large LED indicator, check the operation clearly.
•Anti-bending design.
•NP model : NPN + PNP NO/NC 4-in-1 outputs.
•Surge suppressor and overload protection .
Description
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 18 mm |
| Model / Type | NPN N.O. / N.C. PNP N.O. / N.C. |
| Secure sensing distance | 0 ~ 14.4 mm |
| Standard sensing object | Iron 30 x 30 x 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M30 |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 300Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 14 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2 V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Option | M124R-PVC-2M |
| Wiring method | M12 4P pigtailed type /M12 4P出線式接頭型 |
| Weight | 95g |
