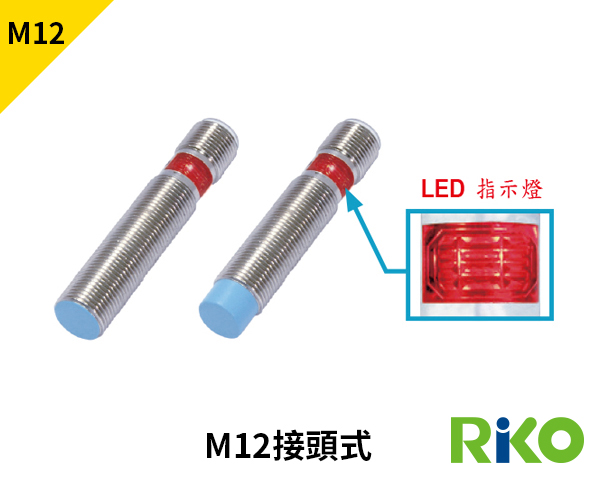

• Large LED indicator, check the operation clearly.
• M12 4pin connector model available.
• N3 / P3 model : NPN N.O. / N.C. & PNP N.O. / N.C. 2-in-1 outputs.
• Surge suppressor and overload protection.

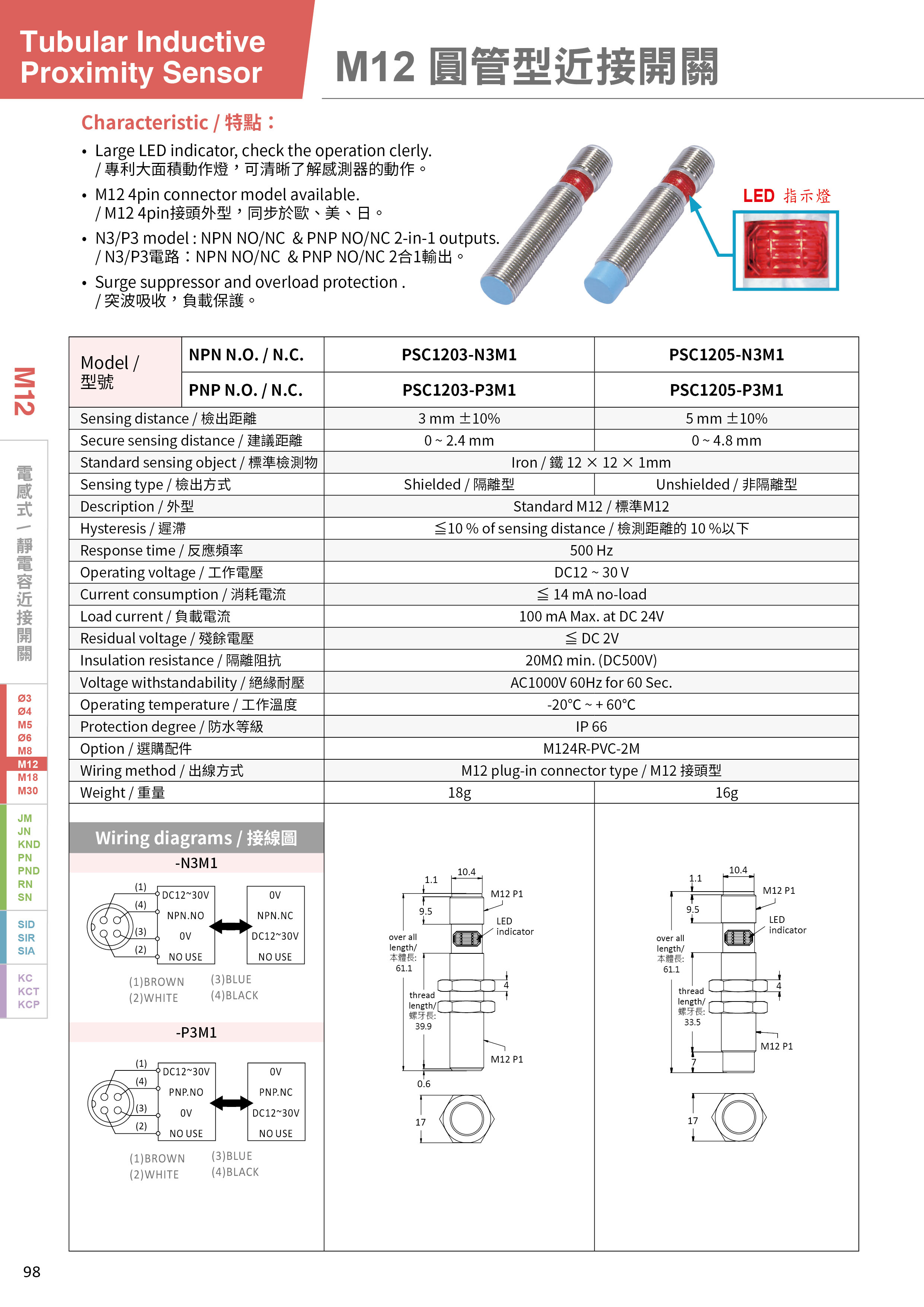

Model | Tubular Inductive Proximity Sensor |
---|---|
Detection distance | 5 mm ± 10% |
Secure sensing distance | 0 ~ 4.8 mm |
Standard sensing object | Iron / 鐵 12 x 12 x 1 mm |
Sensing distance | Unshielded |
Description | Standard M12 |
Hysteresis | ≦ 10 % of sensing distance |
Response time | 500 Hz |
Operating voltage | DC 12 ~ 30 V |
Current consumption | ≦ 14 mA no-load |
Load current | 100 mA Max. at DC 24V |
Residual voltage | ≦ DC 2V |
Insulation resistance | 20MΩ min. (DC500V) |
Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
Opera tetemperature | -20℃ ~ + 60℃ |
Protection degree | IP 66 |
Option | M124R-PVC-2M |
Wiring method | M12 plug-in connector type |
Weight | 16g |
