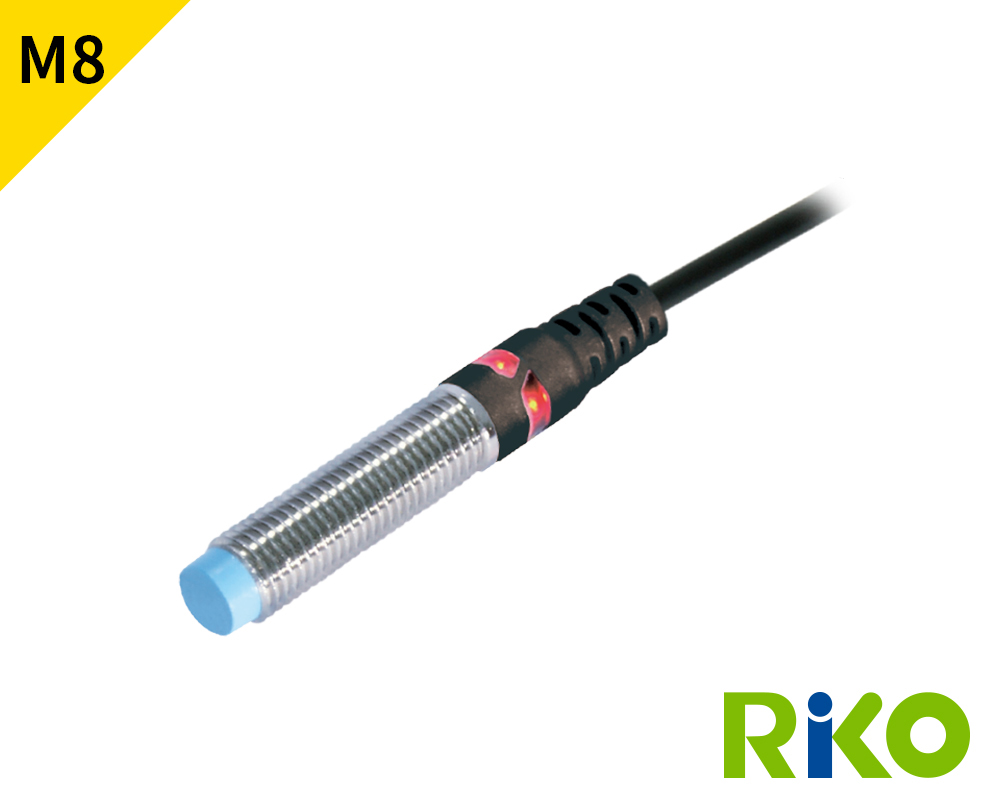

PSC0802-NP Tubular Inductive Proximity Sensor
•Special line-out design for bending resistance and tensile. It will upgrade the durability and life.
•The IP67 rating is designed to the effective waterproof.
•NP model : NPN + PNP NO/NC 4-in-1 outputs.
•Surge suppressor and overload protection.
Description
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 2 mm |
| Secure sensing distance | 0 ~ 1.6 mm |
| Standard sensing object | Iron 8 x 8 x 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M8 |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 500 Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 14 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Option | |
| Wiring method | Ø3 x 2M / 4 wires |
| Weight | 30g |
