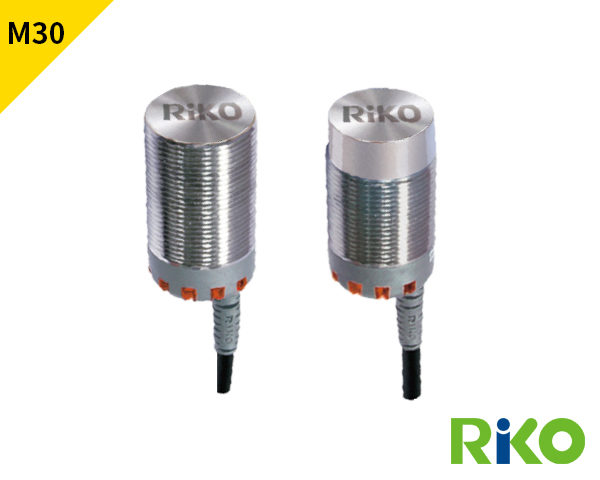

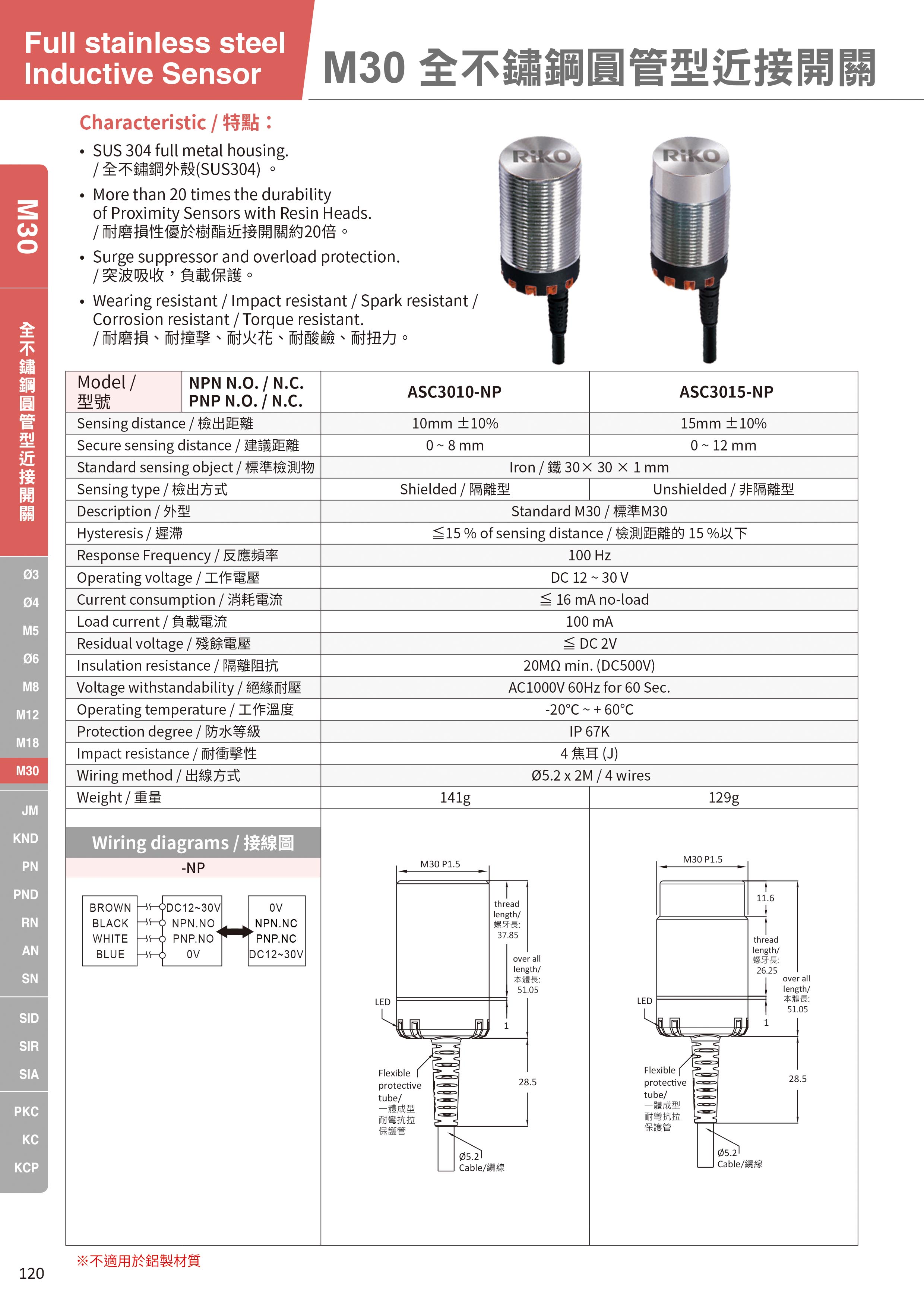

ASC3015-NP Tubular Inductive Proximity Sensor
• SUS304 stainless steel
• Wear-resistant/Impact-resistant/Spark-resistant/Acid and alkali-resistant/Torsion-resistant
• NP 4-in-1 output
• Surge absorption, load protection
Description
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 15 mm ± 10% |
| Standard sensing object | Iron 30 x 30 x 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M30 |
| Hysteresis | ≦ 15 % of sensing distance |
| Response time | 100 Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 8 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67K |
| Option | M84R-2M-PVC / M84RL-2M PVC |
| Wiring method | Ø5.2 x 2M / 4 wires PVC |
