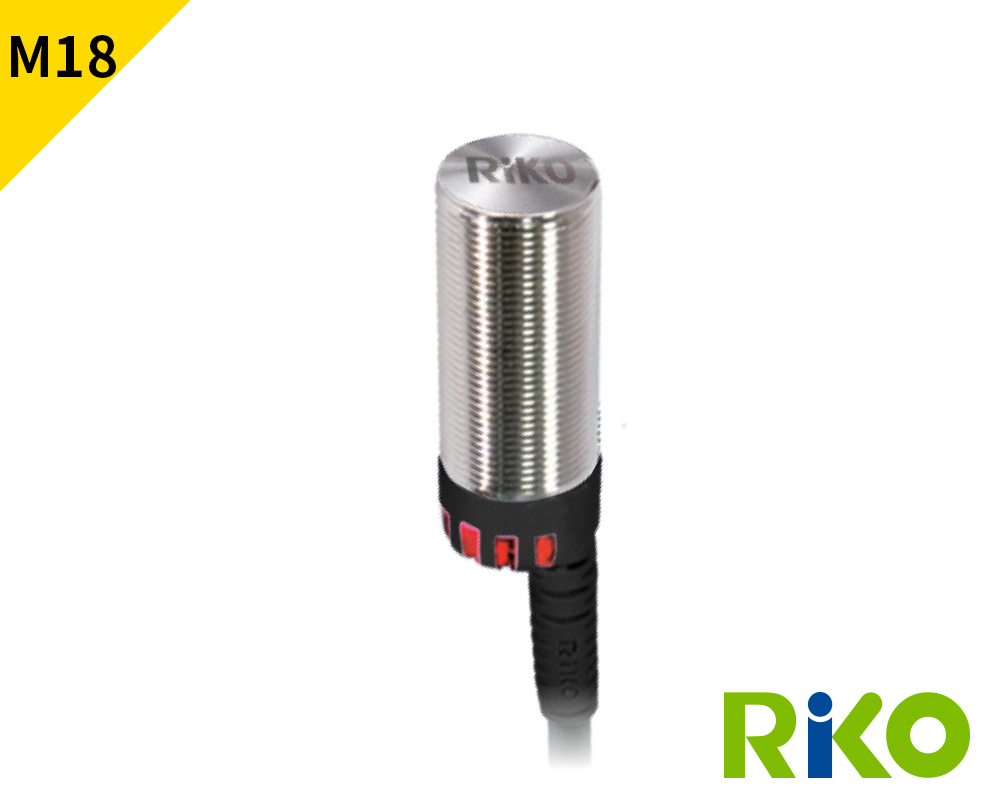

ASC1805-NP Tubular Inductive Proximity Sensor
• SUS 304 full metal housing
• More than 20 times the durability of Proximity Sensors with Resin Heads
• NP model : NPN + PNP NO/NC 4-in-1 outputs
• Surge suppressor and overload protection
• Wearing resistant / Impact resistant / Spark resistant / Corrosion resistant / Torque resistant
Description

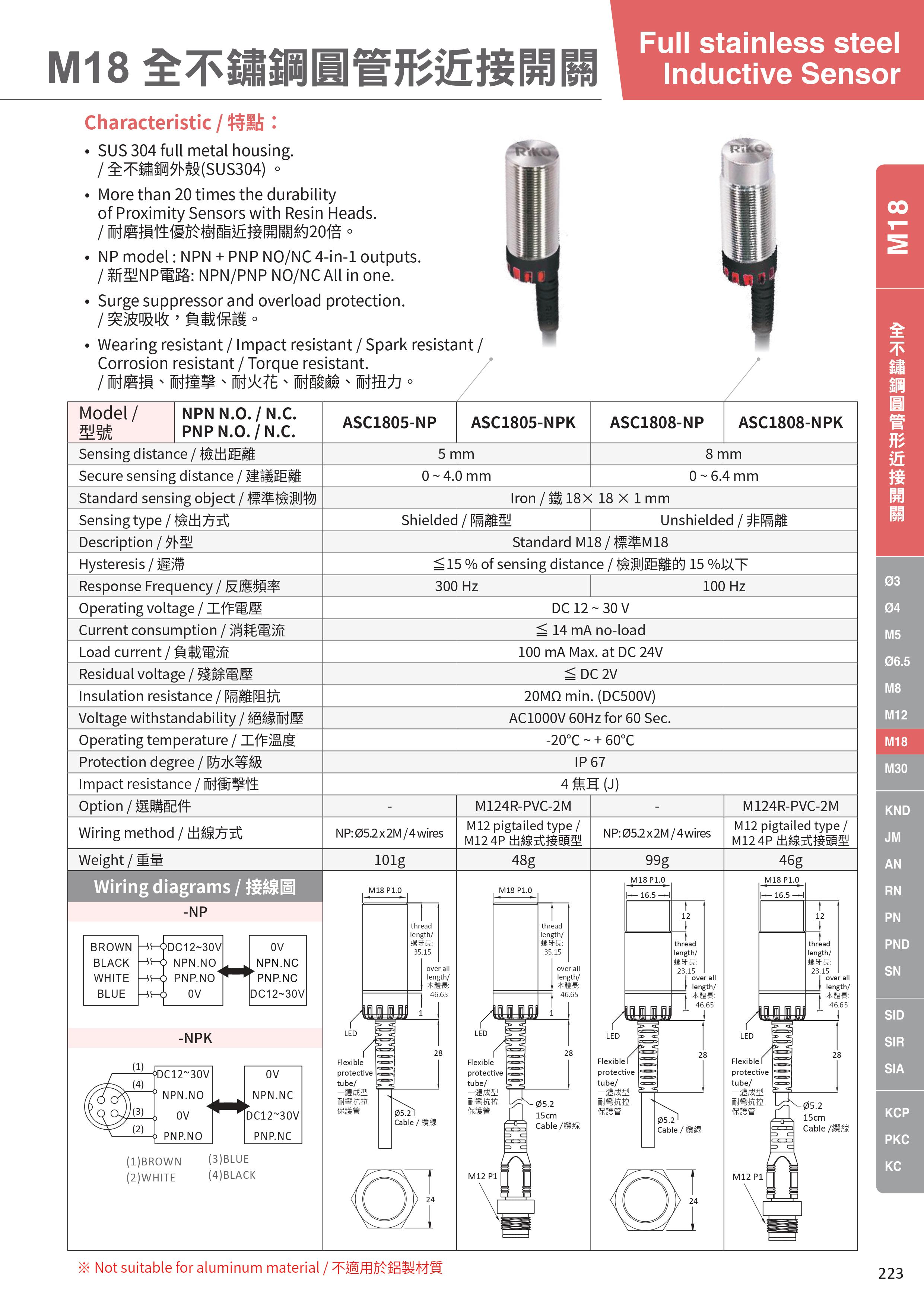

%E7%9B%AE%E9%8C%84%20(223).jpg)
%E7%9B%AE%E9%8C%84%20(235).jpg)
%E7%9B%AE%E9%8C%84%20(236).jpg)
Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 5 mm |
| Secure sensing distance | 0 ~ 4.0 mm |
| Standard sensing object | Iron 18 x 18 x 1 mm |
| Sensing distance | Shielded |
| Description | Standard M18 |
| Hysteresis | ≦ 15 % of sensing distance |
| Response time | 300 Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 8 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Wiring method | NP: Ø5.2 x 2M / 4 wires |
| Weight | 101g |
