• Universal/standard ring proximity switch.
• Magnetic metal detection in general environment.
Model | Inductive Ring Sensor |
---|---|
Model / Type | NPN N.O. / N.C.. |

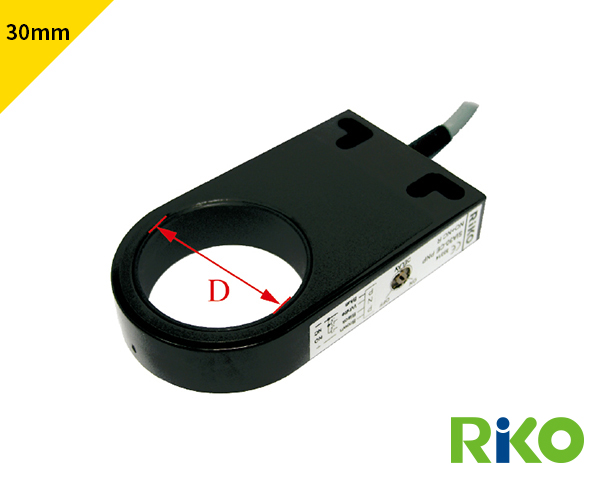

Sensing hole diameter | D = 30mm |
Minimum detectable object | 3 mm min. |
Operating voltage | DC 10 ~ 30V |
Current consumption | 15 mA |
Load current | 100 mA Max. at DC 24V |
Opera tetemperature | -20℃ ~ + 60℃ |
Protection degree | IP 65 |
Wiring method | Ø4.2 x 2M / 4 wirs |
Application power supply unit | ST-1 . ST-T2 |
Weight | 100g |
