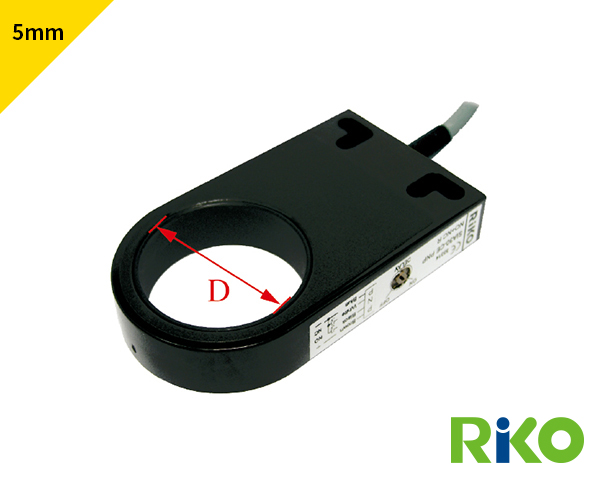

SIA05-N Inductive Proximity Sensor

• Universal/standard ring proximity switch.
• Magnetic metal detection in general environment.

Description

Specification
Model Inductive Ring Sensor
Model / Type NPN N.O. / N.C..
Sensing hole diameter D = 5mm
Minimum detectable object 0.7 mm min.
Operating voltage DC 10 ~ 30V
Current consumption 15 mA
Load current 100 mA Max. at DC 24V
Opera tetemperature -20℃ ~ + 60℃
Protection degree IP 65
Wiring method Ø4.2 x 2M / 4 wirs
Application power supply unit ST-1 . ST-T2
Weight 100g
Download
