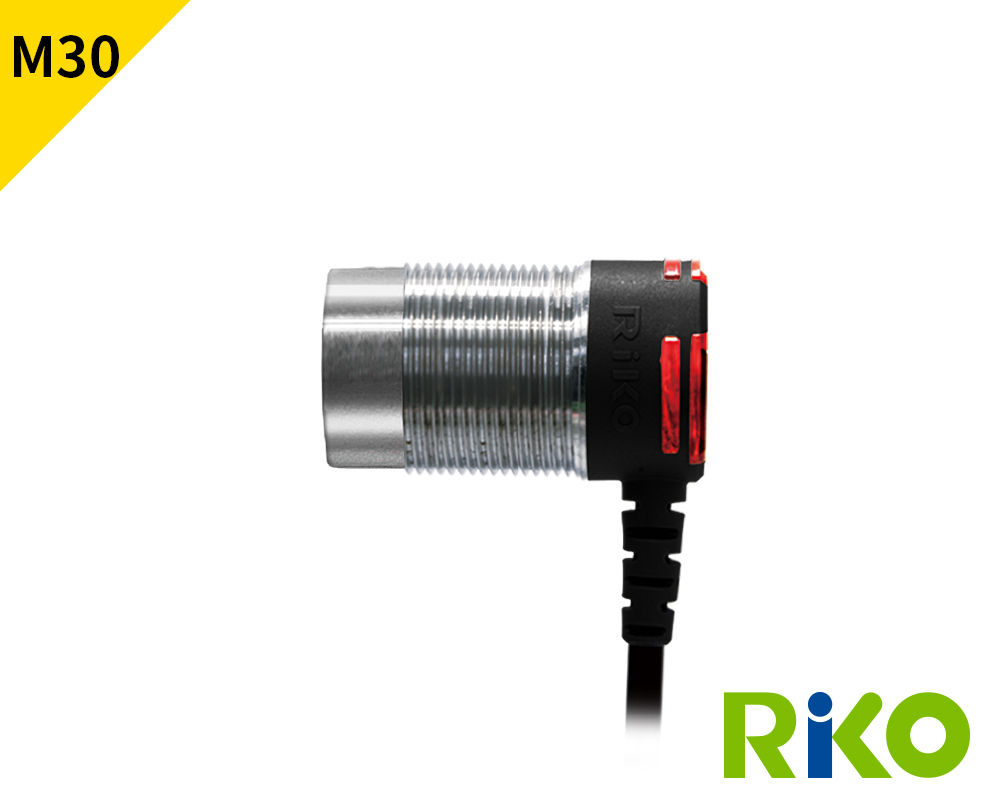

ASD3015-NP Full stainless steel Inductive Sensor
• 90 degree design fits for limited space.
• Large LED indicator, check the operation clearly.
• Anti-bending design.
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
• Wearing resistant / Impact resistant / Spark resistant /Corrosion resistant / Torque resistant.
Description

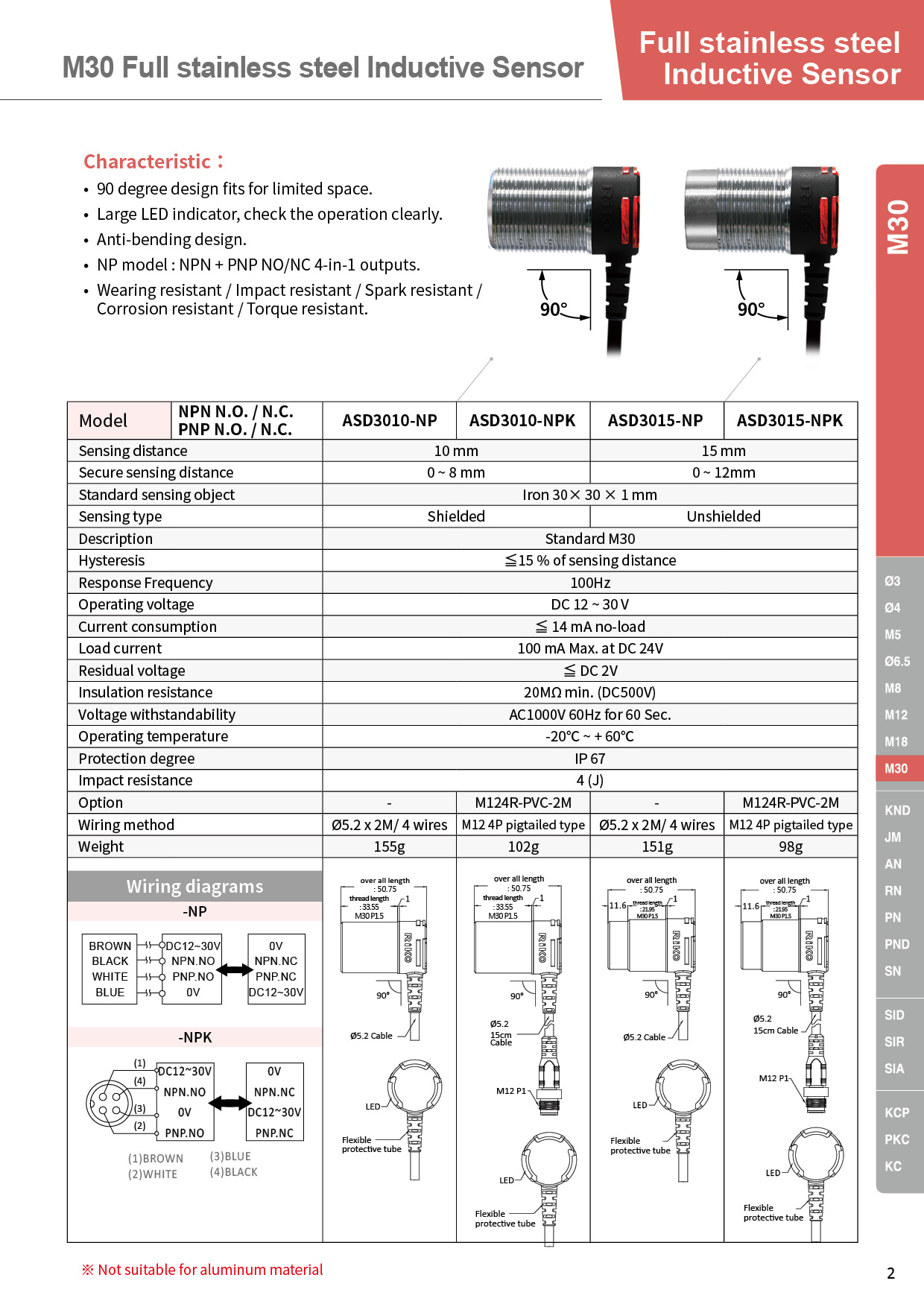

Specification
| Model | Full stainless steel Inductive Sensor |
|---|---|
| Detection distance | 15 mm |
| Secure sensing distance | 0 ~ 12 mm |
| Standard sensing object | Iron 30 x 30 x 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M30 |
| Hysteresis | ≦ 15 % of sensing distance |
| Response time | 100 Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 14 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000 V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 67K |
| Impact resistance | 4 (J) |
| Option | |
| Wiring method | Ø5.2 x 2M/ 4 wires |
| Weight | 151g |
