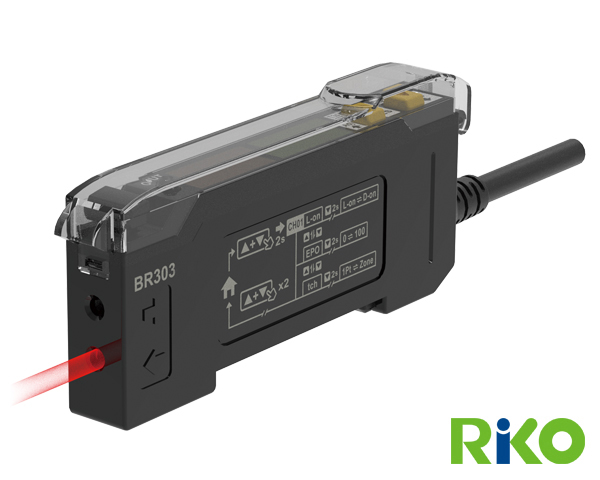

BR303-2N Digital Fiber Amplifier
• It can Be selected to two output mode, each of including 1Pt and Zone mode.
• 5 Power rate selections (PO1~PO5).
• Emitter power (EPO) 0~100 steps individual adjustment.
• Zone mode is suitable for detecting marks, or when using foreground background masking at the same time.

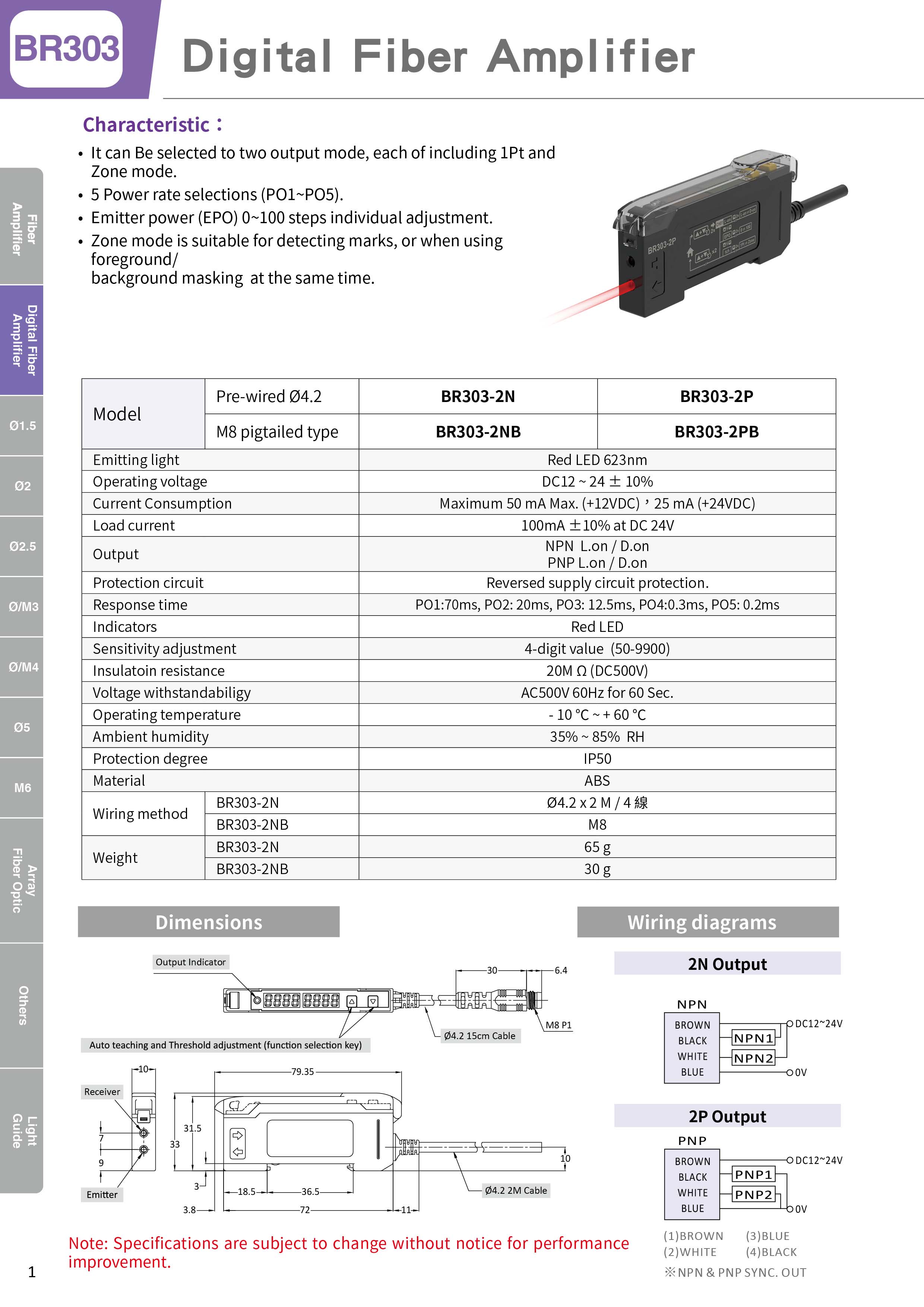

Description
Specification
| Light Emitter | RED LED 623nm |
|---|---|
| Operating voltage | DC12 ~ 24 ± 10% |
| Current consumption | 50 mA Max. (+12VDC)，25 mA (+24VDC) |
| Load current | 100mA ± 10% at DC 24V |
| Model / Type | NPN L.on / D.on PNP L.on/ D.on |
| Protection circuit | Reversed Supply circuit protection. |
| Reaction time | PO-1,PO-2 : 2ms / PO-3, PO-4, PO-5 : 0.33ms : (on+off) |
| Indictors | Red LED |
| Sensitivity adjustment | 4-digit value (18 - 9970) |
| Insulation resistance | 20M Ω (DC500V) |
| Voltage withstandability | AC500V 60Hz for 60 Sec. |
| Opera tetemperature | - 10 °C ~ + 60 °C |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP50 |
| Casing material | ABS |
| Wiring method | Cable Type Ø4.2 x 2 M / 4 線 |
| Weight | 65 g |
