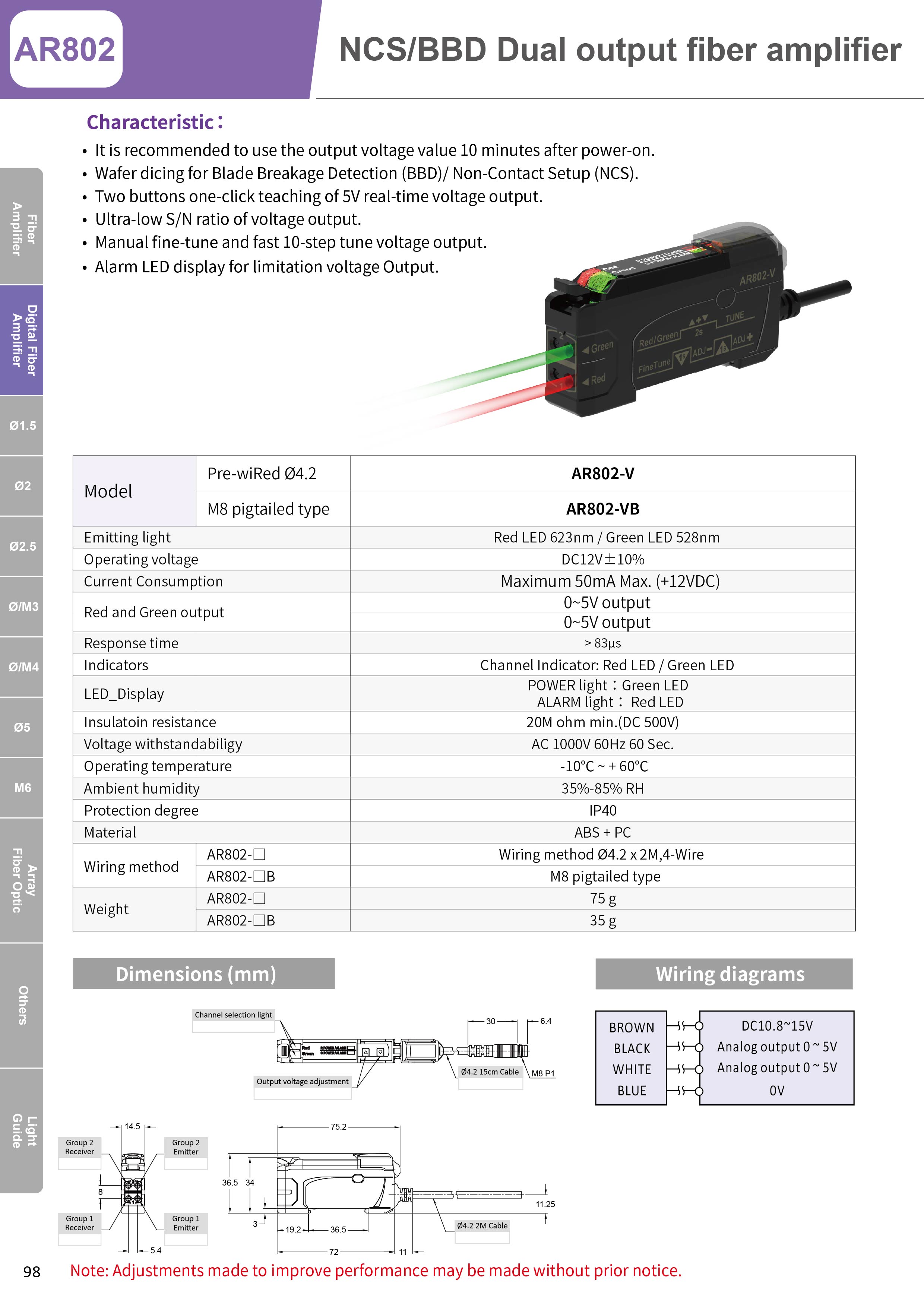

AR802-VB NCS/BBD Dual output fiber amplifier
• It is recommended to use the output voltage value 10 minutes after power-on.
• Wafer dicing for Blade Breakage Detection (BBD)/ Non-Contact Setup (NCS).
• Two buttons one-click teaching of 5V real-time voltage output.
• Ultra-low S/N ratio of voltage output.
• Manual fine-tune and fast 10-step tune voltage output.
• Alarm LED display for limitation voltage Output.
Description
Specification
| Light Emitter | Red LED 623nm / Green LED 528nm |
|---|---|
| Operating voltage | DC12V±10% |
| Current consumption | Maximum50mA Max. (+12VDC) |
| Model / Type | 0~5V linear output |
| Insulation resistance | 20M ohm min.(DC 500V) |
| Voltage withstandability | AC 1000V 60Hz 60 Sec |
| Opera tetemperature | - 10 ℃ ~ + 60 ℃ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP40 |
| Casing material | ABS+PC |
| Wiring method | M8 Outgoing Cable Connector Type |
| Weight | 35 g |
| Reaction time | > 83μs |
| Indictors | Channel indicator lights: Red LED / Green LED |
