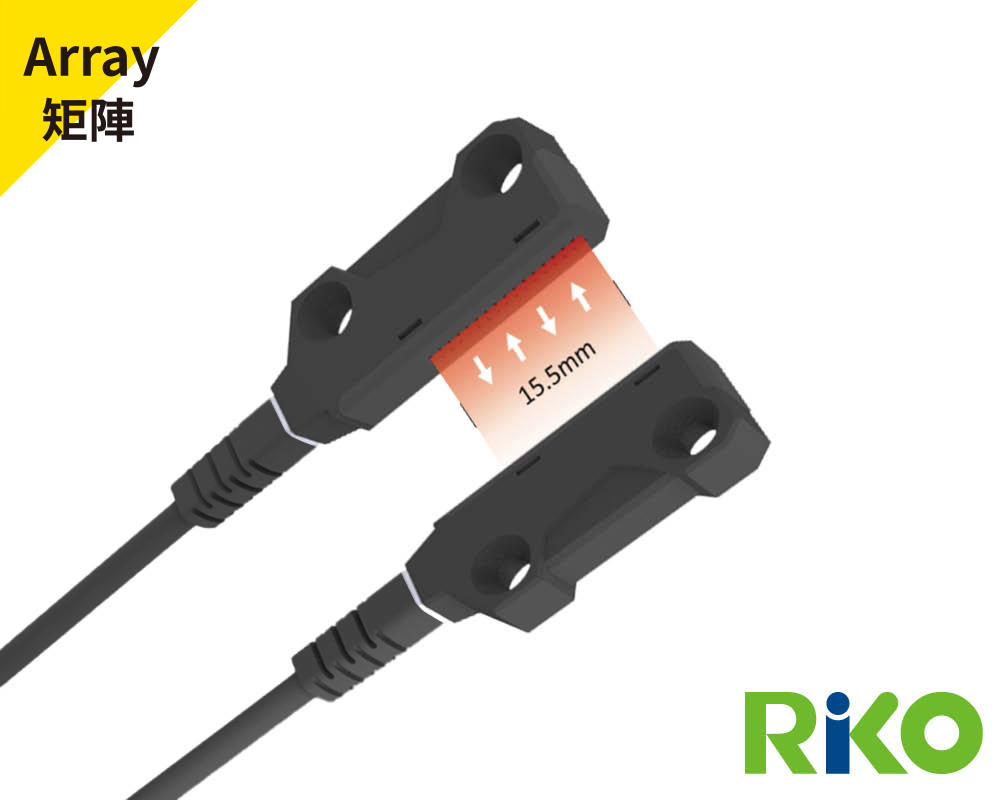

PT-A11-20 Array Fiber optics
• Fiber Type：Array Fiber optics Sensor
• Mini.bending radius : R60
Description
Specification
| Model | Thrubeam Array Fiber optics |
|---|---|
| Fiber diameter | OD=Ø2.8 ; ID=Ø0.265x32 |
| SD | 300mm |
| Sensing width* | 15.5mm |
| Opera tetemperature | -55℃~+70℃ |
| Mini.bending radius | R60 |
| Light angle | 60° |
