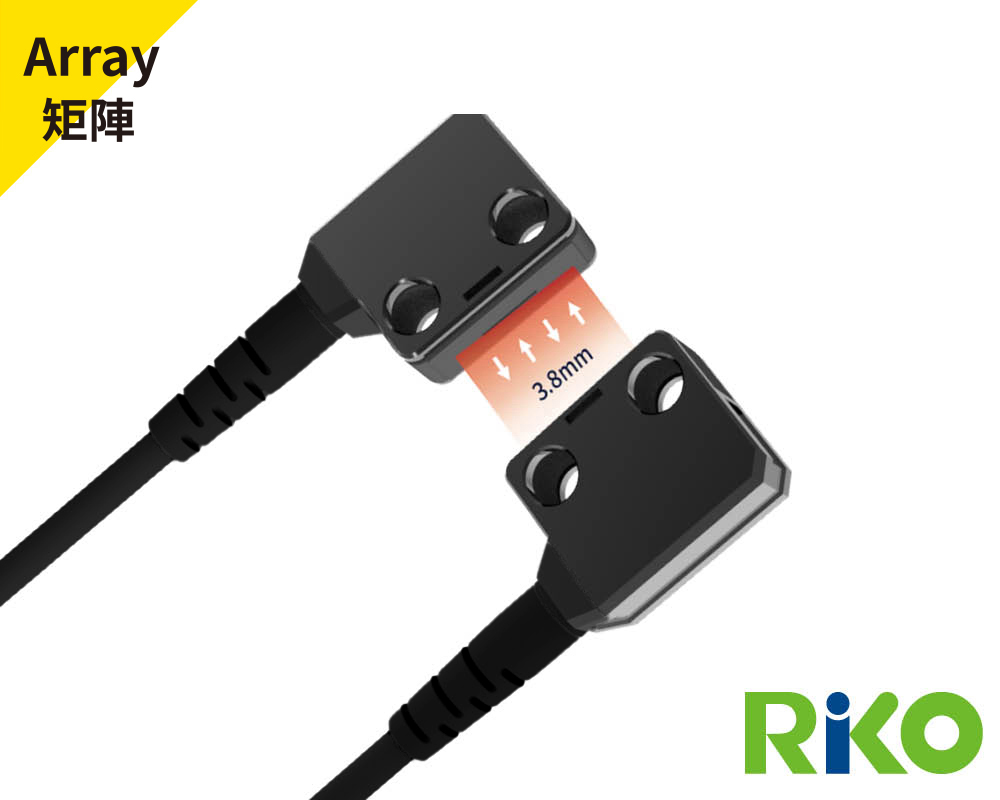

PT-012ML-20 Array Fiber optics
• Fiber Type：Lens built in Array Fiber optics Sensor
• Mini.bending radius : R25
Description
Specification

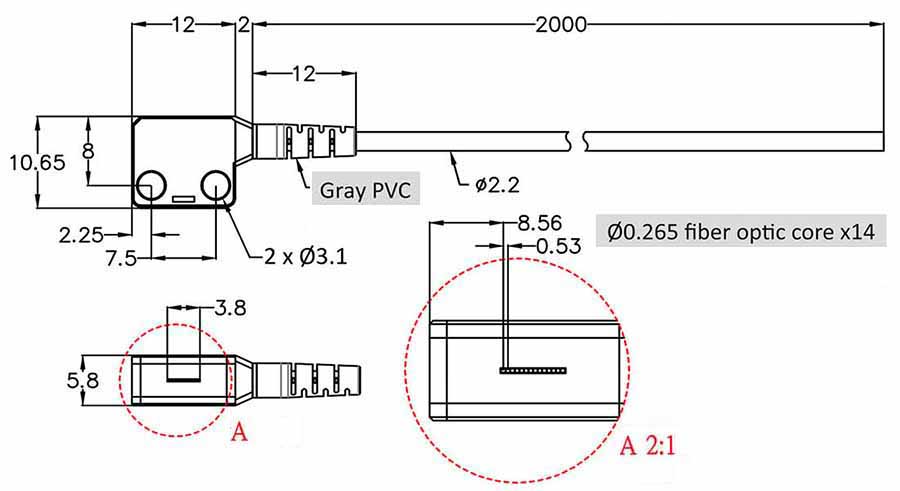

| Model | Reflective Array Fiber optics |
|---|---|
| Fiber diameter | OD=Ø2.2 ; ID=Ø0.265x14 |
| SD | 300mm |
| Sensing width* | 3.8mm |
| Opera tetemperature | -55℃~+70℃ |
| Mini.bending radius | R25 |
| Light angle | 60° |
