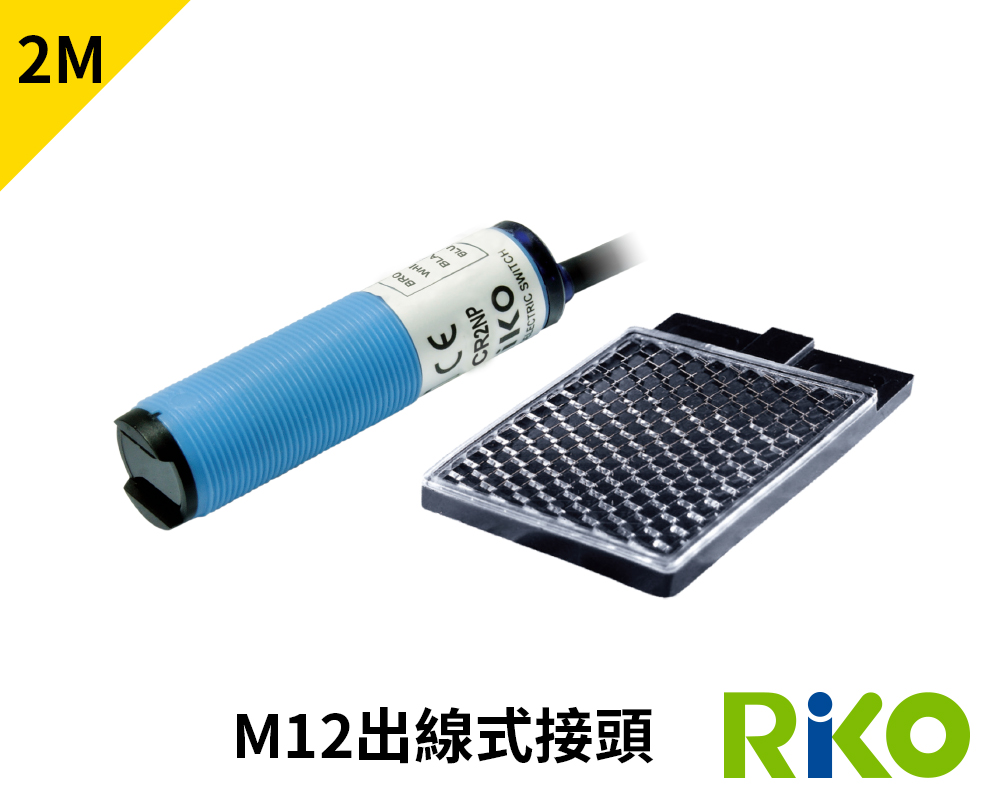

RMF-CR2NPK Photo Sensor
• Standard M18 cylindrical metal tube.
• Threaded length = 35 mm.
• ABS barrel applied to factory environments.
Description
%E7%9B%AE%E9%8C%84%20(169).jpg)
Specification
| Model | Tubular Photo Sensor |
|---|---|
| Sensing distance | Retroreflective |
| Detection distance | 2M |
| Light Emitter | Infrared LED 940 nm |
| Operating voltage | DC12 ~ 24 V |
| Current consumption | 25 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN D.on/ L.on PNP D.on/ L.on |
| Response time | 650 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP66 |
| Casing material | ABS |
| Wiring method | M12 pigtailed connector type / M12 接頭15cm電線式 |
| Option | M124R-PVC-2M / Bracket : MF-01 |
| Weight | 35g |
