PK3-DU150NP TOF Miniature Photo Sensor
ㆍ0 ~ 10V / 0 ~ 20 mA linear output.
ㆍLightweight size (W12xH31xD20mm), saving space.
ㆍ1Pnt single-point setting automatic teaching function.
ㆍInspection regardless of color.
Description

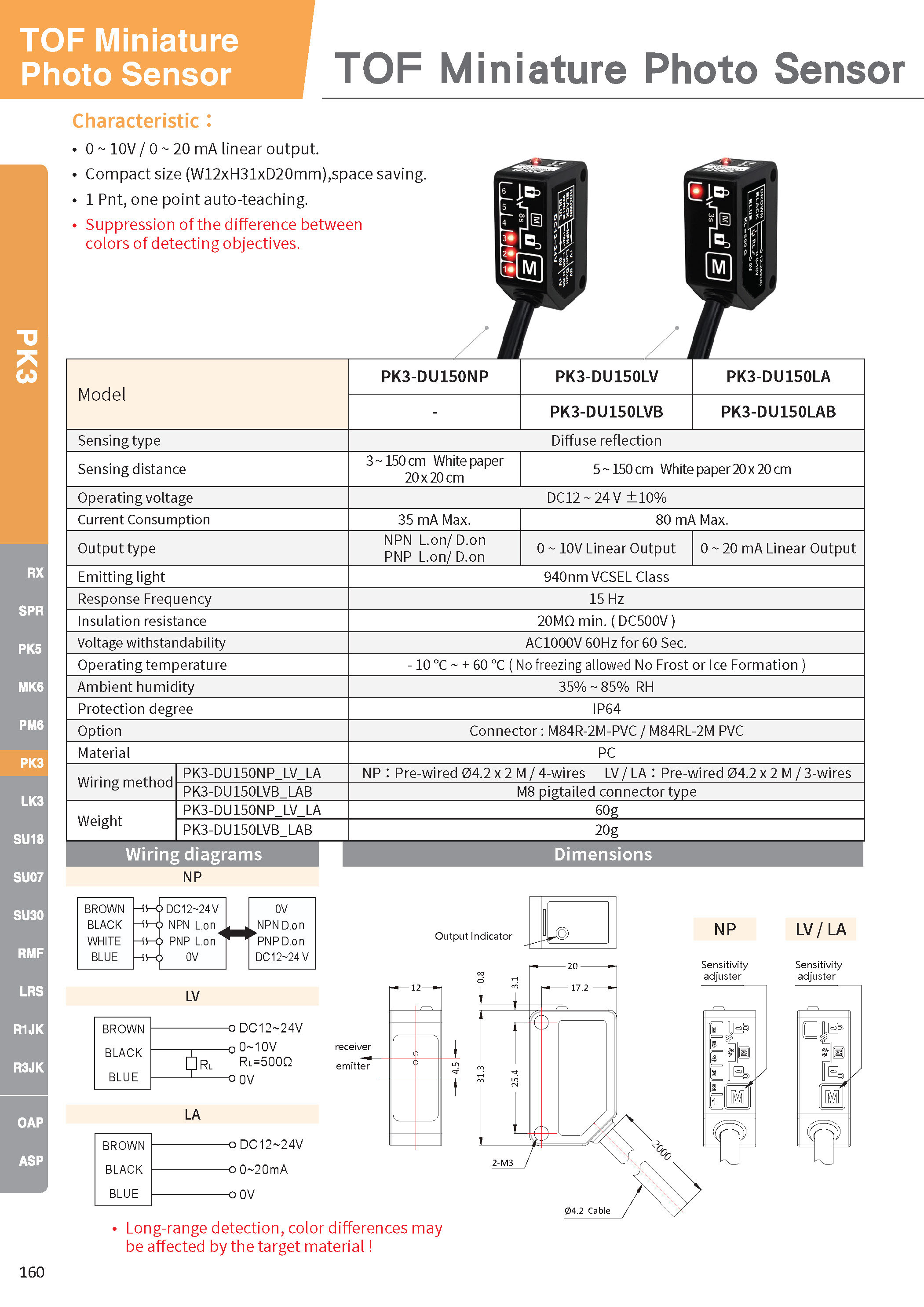

%E7%9B%AE%E9%8C%84%20(160).jpg)

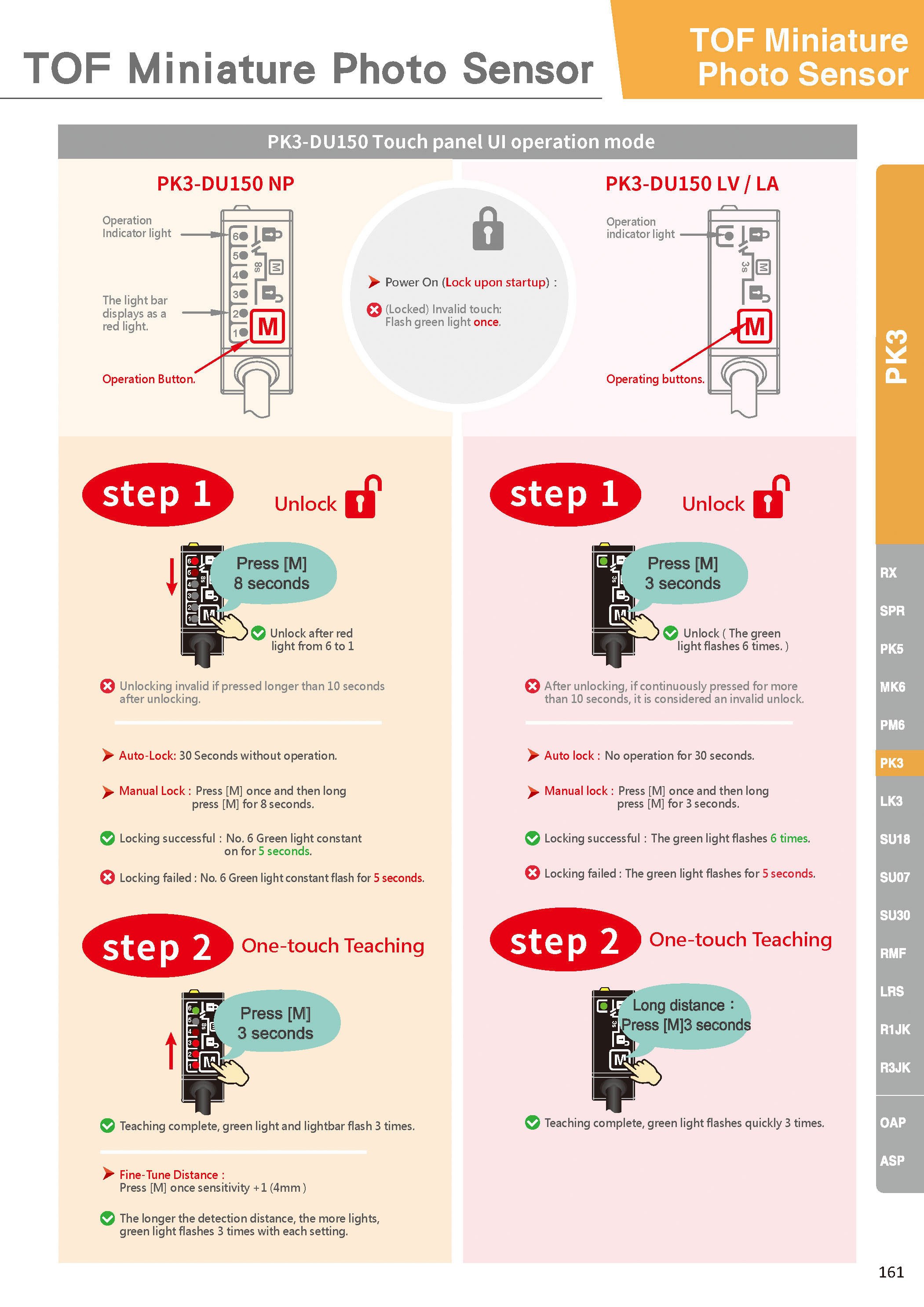

%E7%9B%AE%E9%8C%84%20(161).jpg)
Specification
| Sensing distance | Diffuse reflection |
|---|---|
| Detection distance | 3~150cm, White paper 20x20cm |
| Light Emitter | 940nm VCSEL Class |
| Operating voltage | DC12~24V+10% |
| Current consumption | 35 mA Max. |
| Model / Type | NPN L.on/ D.on PNP L.on/ D.on |
| Response time | 15 Hz |
| Insulation resistance | 20MΩ min. ( DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -10C〜+60C(No freezingallowed ) |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP64 |
| Casing material | PC |
| Wiring method | Pre-wired Ø4.2 x 2 M / 4-wires |
| Weight | 60g |
