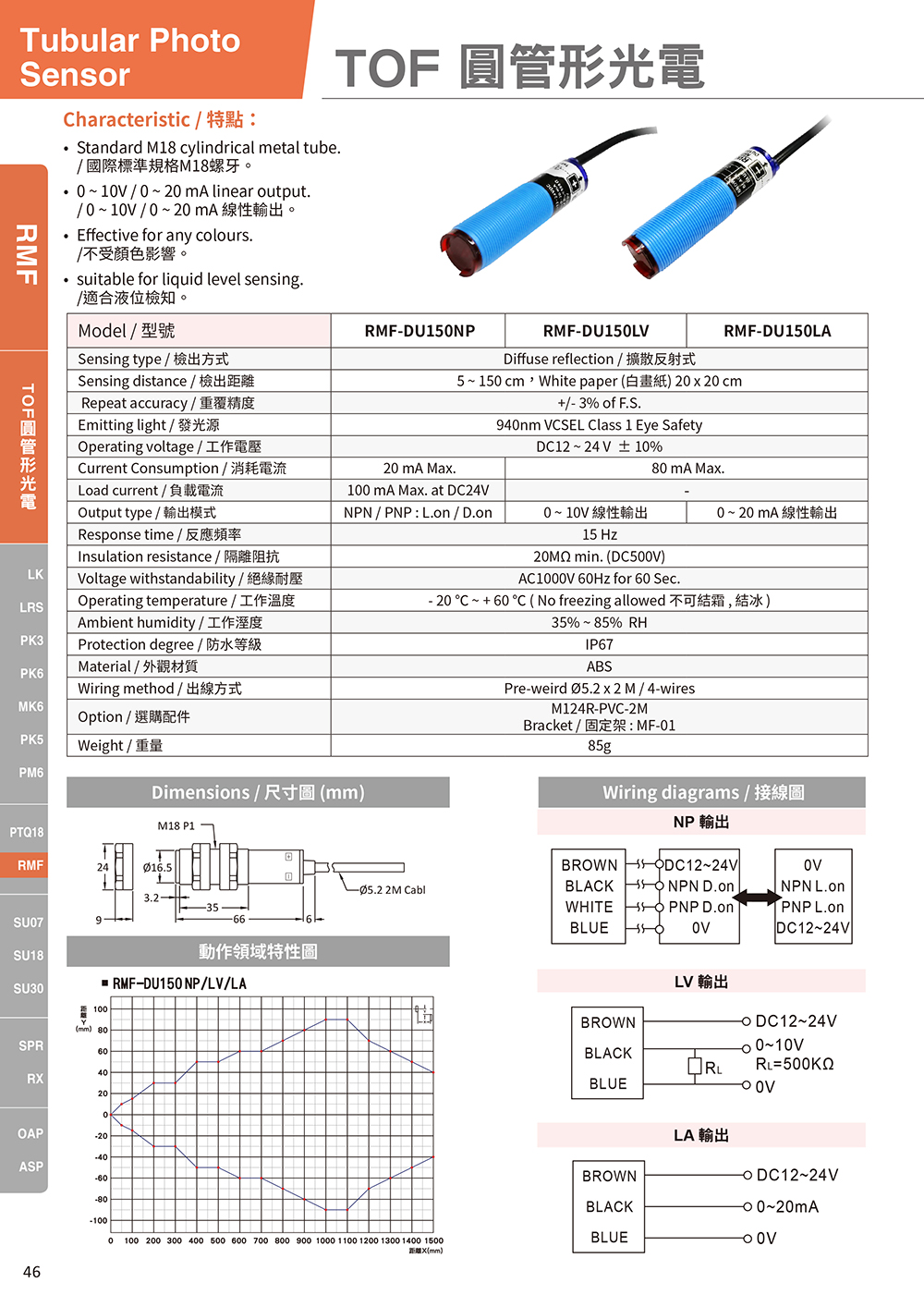

RMF-DU150LA Tubular Photo Sensor
ㆍStandard M18 cylindrical metal tube.
ㆍ0~ 10V/ 0 ~20 mA linear output.
ㆍEffective for any colours.
ㆍSuitable for liquid level detection.
Description
Specification
| Sensing distance | Diffuse reflection / 擴散反射式 |
|---|---|
| Detection distance | 5~150cm , White paper 20x20cm |
| Shortest distance | 150mm |
| Repeat accuracy | +/- 3% of F.S. |
| Accuracy | 3% |
| Light source | 650nm |
| Light Emitter | 940nm VCSEL class 1 Eye Safety |
| Operating voltage | DC12 ~ 24 V ± 10% |
| Current consumption | 80 mA Max. |
| Model / Type | 0 ~ 20 mA Linear output |
| Reaction time | 1~200mm：66ms ‧ 201~1500mm：33ms |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ (不可結霜,結冰) |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP67 |
| Casing material | ABS |
| Wiring method | Pre-weird Ø5.2 x 2 M / 4-wires |
| Option | M124R-PVC-2M Bracket / 固定架 : MF-01 |
| Weight | 85g |
