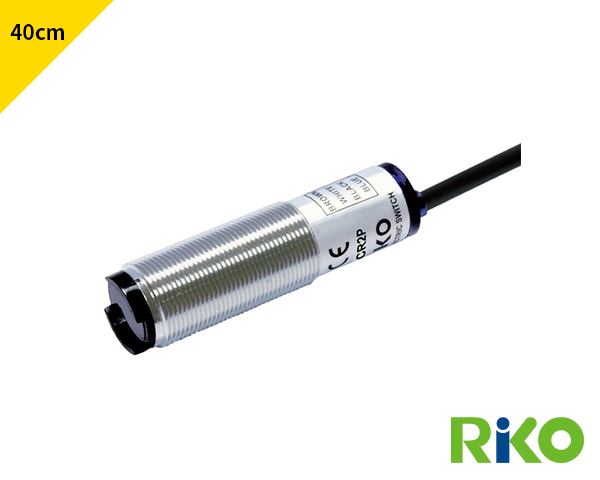

MMF-DU40N Photo Sensor
• Standard M18 cylindrical metal tube.
• Threaded length 35mm.
• Solid and durable.
Description
Specification
| Model | Thbular Photo Sensor |
|---|---|
| Detection distance | Diffuse reflection |
| Light Emitter | Infrared LED 875 nm |
| Operating voltage | DC12 ~ 24V |
| Current consumption | 25 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN L.on / D.on |
| Response time | 650 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ (No freezing allowed) |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP66 |
| Casing material | Nickel plated brass |
| Wiring method | Pre-weird Ø5.2 x 2M / 4-wires |
| Option | M124R-PVC-2M , Bracket : MF-01 |
| Weight | 105g |
