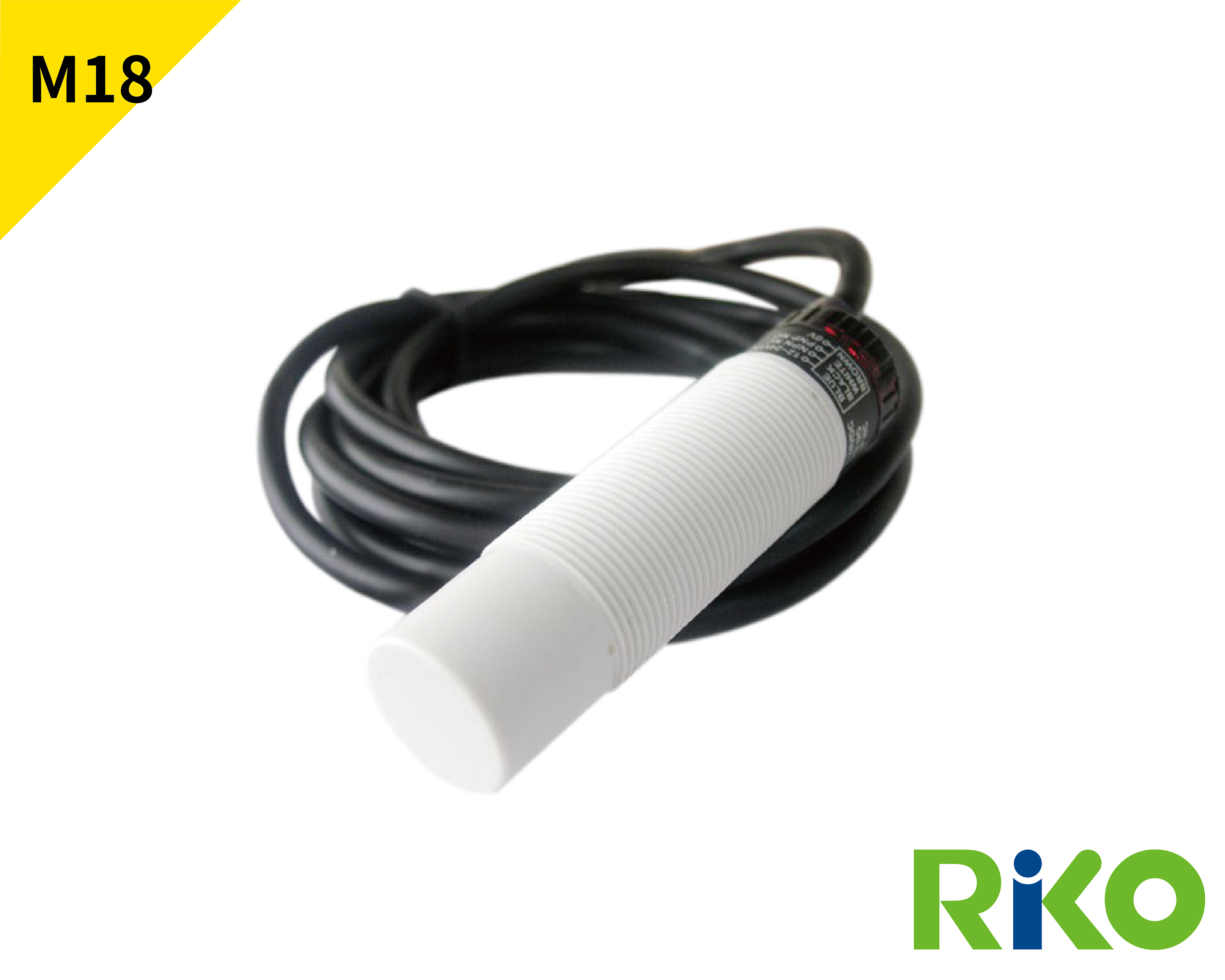

SCP1810-NP Tubular Inductive Proximity Sensor
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
• The IP67 rating is designed to the effective
• waterproof.
• Surge suppressor and overload protection .
• Large LED indicator, check the operation clerly.
Description

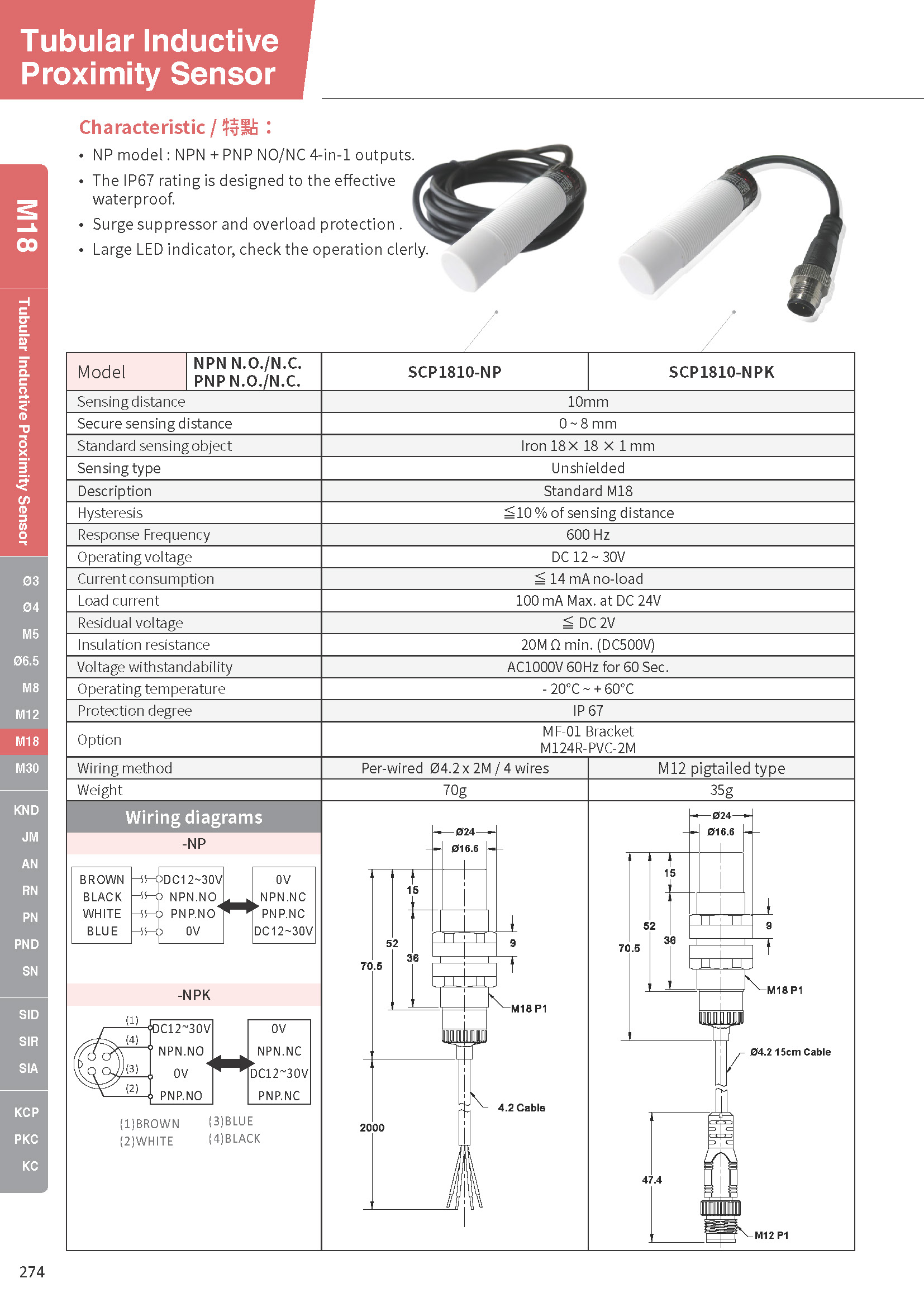

Specification
| Model | Tubular Inductive Proximity Sensor |
|---|---|
| Detection distance | 10mm |
| Model / Type | NPN N.O./N.C. / PNP N.O./N.C. |
| Secure sensing distance | 0 ~ 8 mm |
| Standard sensing object | Iron 18× 18 × 1 mm |
| Sensing distance | Unshielded |
| Description | Standard M18 |
| Hysteresis | ≦10 % of sensing distance 10 %以下 |
| Reaction time | 600 Hz |
| Operating voltage | DC 12 ~ 30 V |
| Current consumption | ≦ 14 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Insulation resistance | 20M Ω min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | - 20℃ ~ + 60℃ |
| Protection degree | IP 67 |
| Option | MF-01 Bracket ; M124R-PVC-2M |
| Wiring method | Per-wired Ø4.2 x 2M / 4 wires |
| Weight | 70g |
