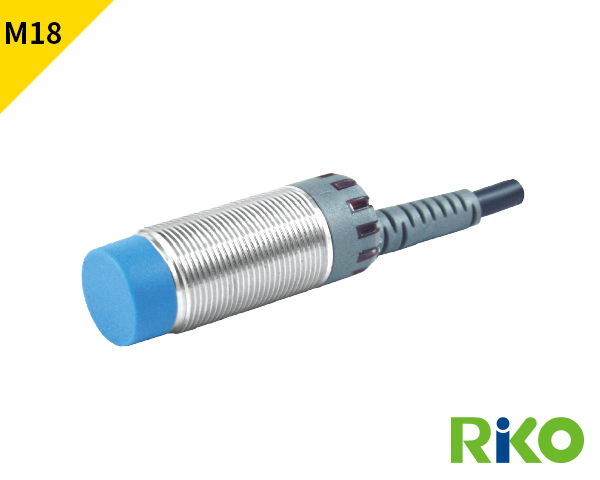

PSC1808-LV03 Inductive Proximity Sensor
• Good linear output for machine stably control.
• Applications : RPM and displacement control.
• Anti-bending design.
• Two outputs models : 0 ~ 10 / 4 ~ 20 mA.
Description
Specification
| Model | Linear Analog Output Inductive Proximity Sensor |
|---|---|
| Model / Type | Linear 0 ~ 10 V |
| Detection distance | 8 mm ± 10% |
| Standard sensing object | Iron 18 x 18 x 1 mm |
| Ripple factor | ≦ 20% |
| Operating voltage | DC 15 ~ 24V |
| Current consumption | 35 ｍＡ Max. |
| Load resistance | > 10KΩ 0 ~ 10V |
| Output protection | Input power polarity reversal protection / Output power short-circuit protection |
| No-load supply current | ≦ 10 mA |
| emperature deviation | ≦ 15% Sr |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ +60℃ |
| Protection degree | IP67 |
| Wiring method | Pre-wired Ø5.2 x 2M / 3 wires |
| Weight | 93g |
