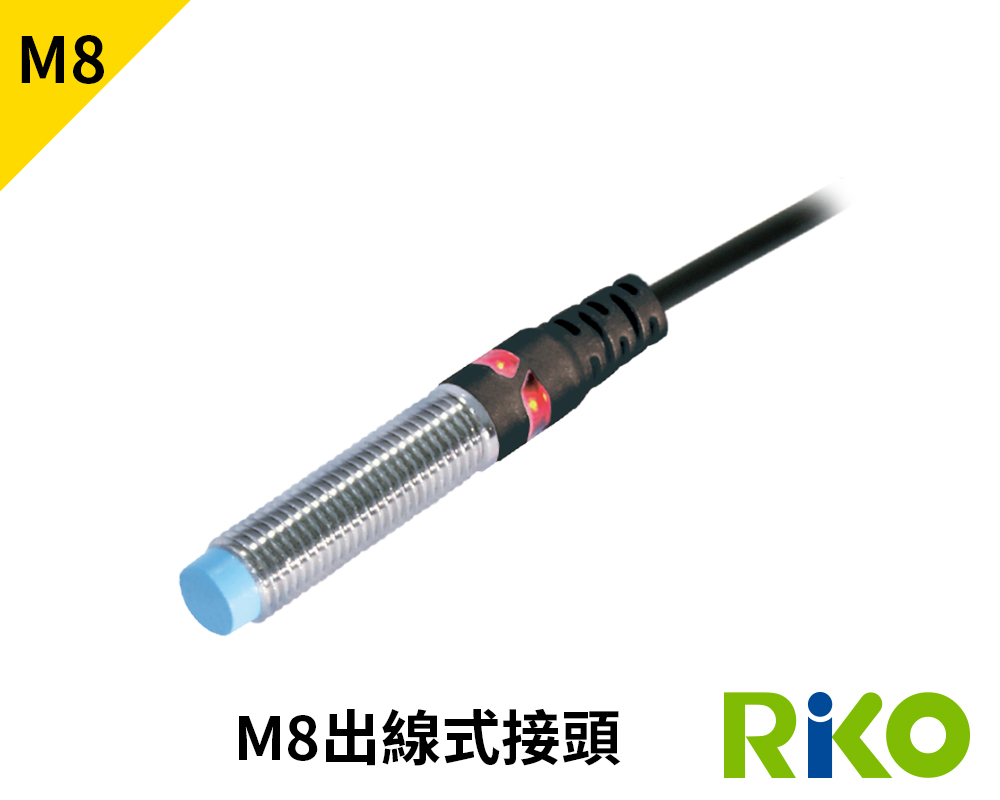

PSC0802-P3B Tubular Inductive Proximity Sensor

• Special line-out design bending resistance and tensile it will upgrade the durability and life.
• The IP67 rating is designed to the effective waterproof.
• N3 / P3 model : NPN N.O. / N.C. & PNP N.O. / N.C. 2-in-1 outputs.
• Surge suppressor and overload protection.

Description

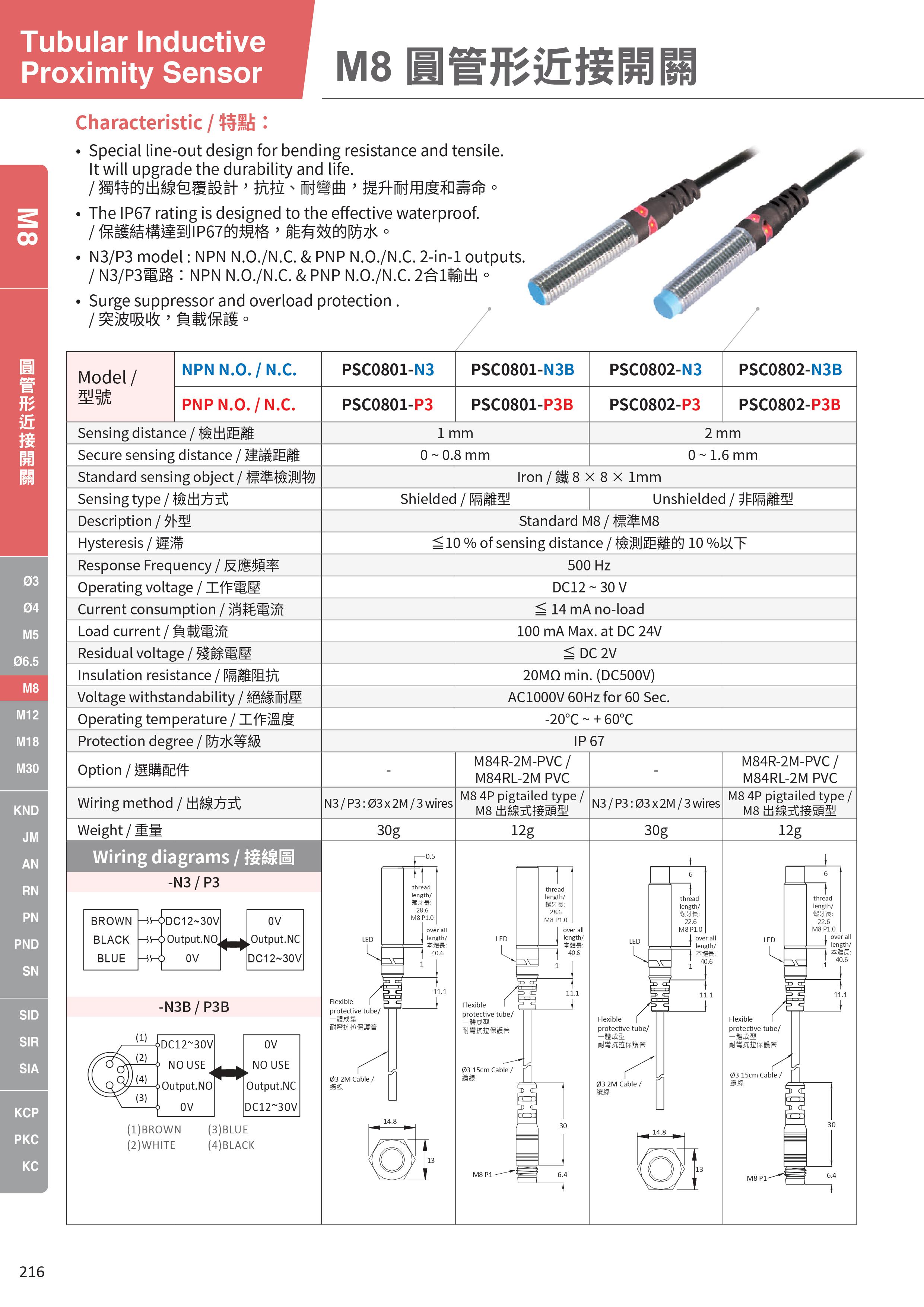

Specification
Model Tubular Inductive Proximity Sensor
Detection distance 2 mm ± 10%
Secure sensing distance 0 ~ 1.6 mm
Standard sensing object Iron 8 x 8 x 1 mm
Sensing distance Unshielded
Description Standard M8
Hysteresis ≦ 10 % of sensing distance
Response time 500 Hz
Operating voltage DC 12 ~ 30 V
Current consumption ≦ 8 mA no-load
Load current 100 mA Max. at DC 24V
Residual voltage ≦ DC 2V
Insulation resistance 20MΩ min. (DC500V)
Voltage withstandability AC 1000 V 60Hz for 60 Sec.
Opera tetemperature -20℃ ~ + 60℃
Protection degree IP 67
Option M84R-2M-PVC / M84RL-2M PVC
Wiring method Ø3 x 2M / 3 wires
Weight 30g
