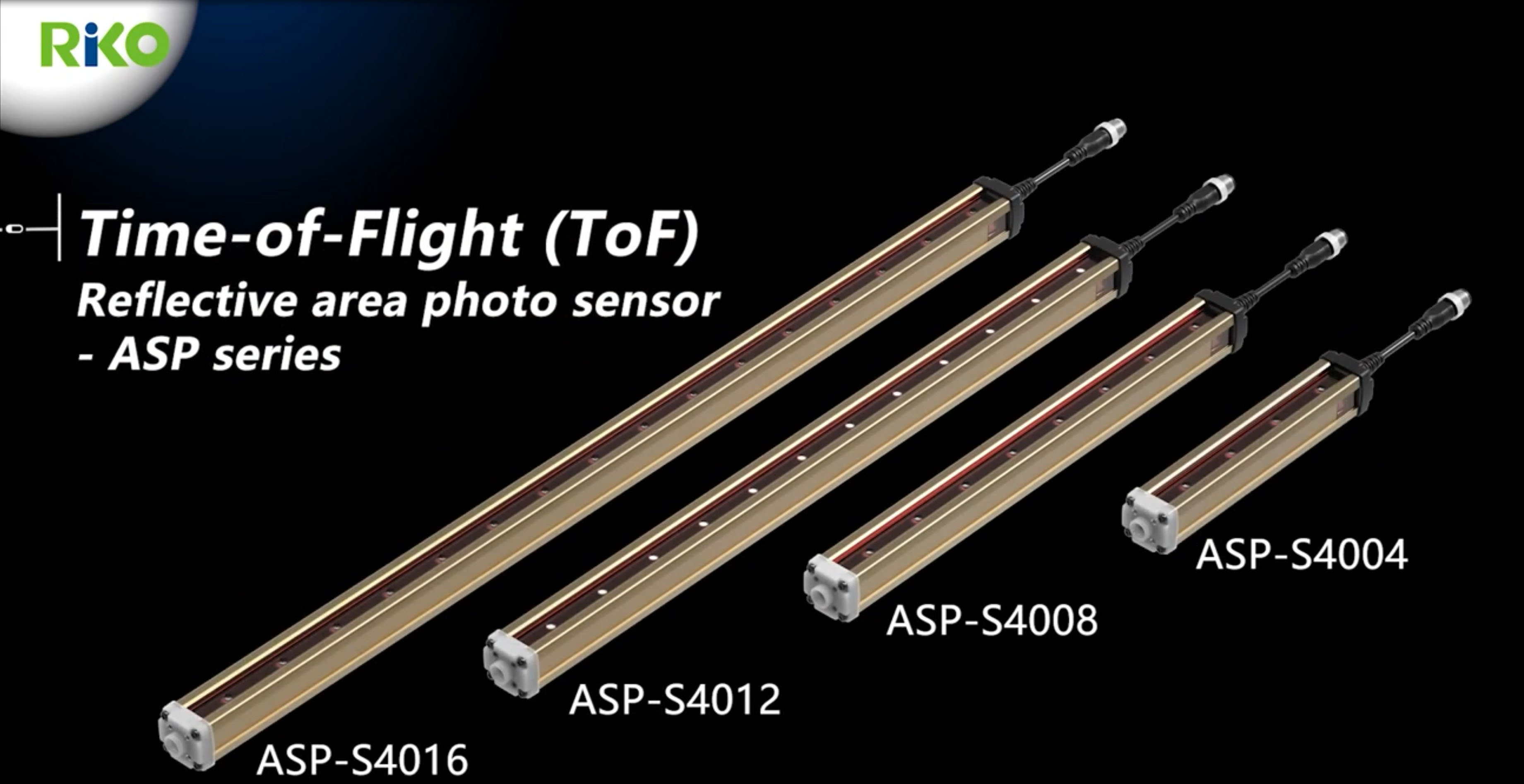

Exclusive Patent Design - Reflective Area Photo Sensor

In the realm of modern industrial control sensing, safety and efficiency are paramount. The ASP Reflective Area Photo Sensor, with its exclusive patent design, offers comprehensive safety protection and operational convenience. This light curtain is engineered to simplify installation and adjustment to the greatest extent, adapting to various work environments and requirements.

Product Highlights

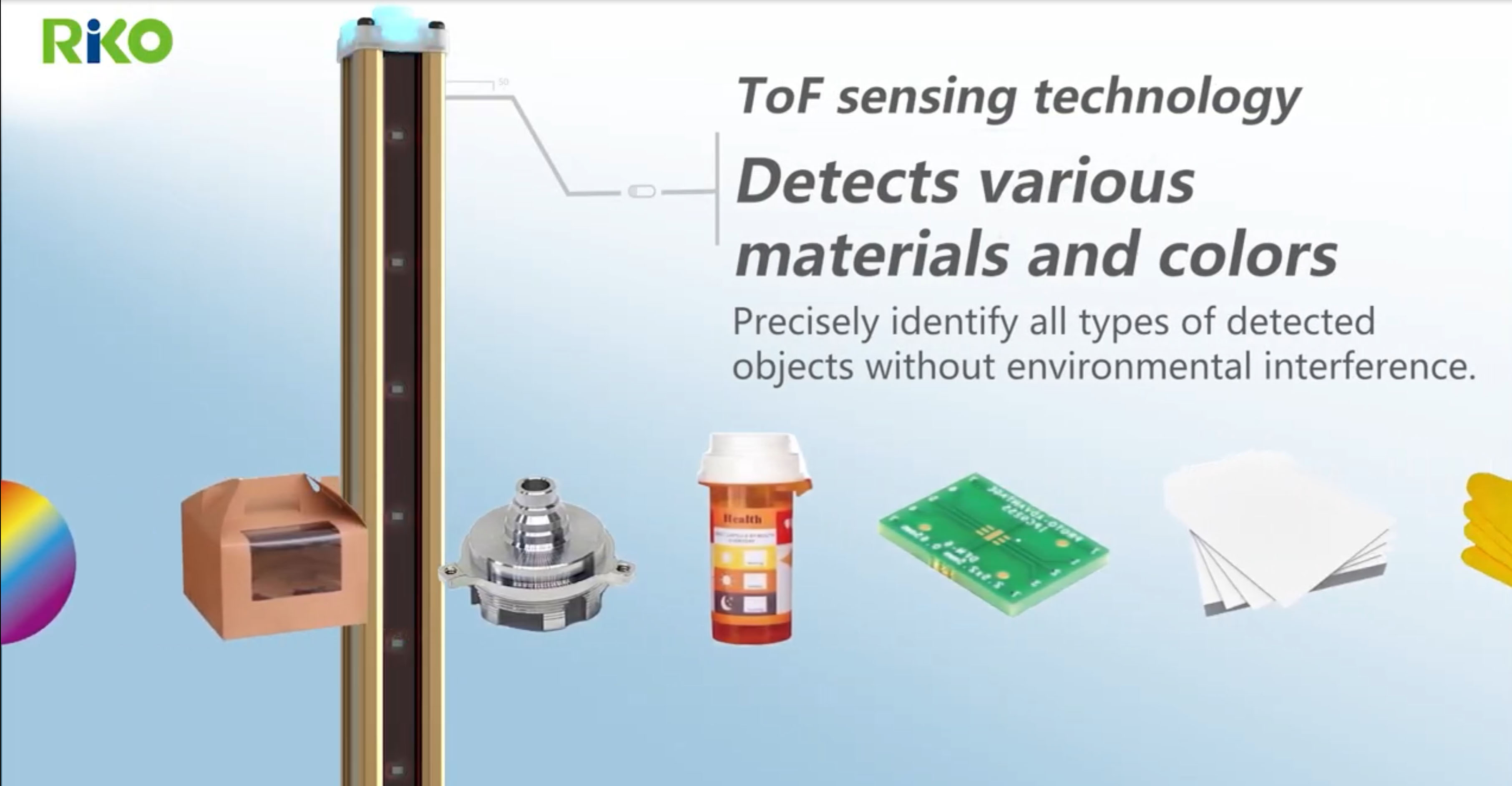

1. ToF Technology: Unaffected by Object Type and Color

The ASP Reflective Area Photo Sensor utilizes advanced Time of Flight (ToF) technology. ToF technology measures the time it takes for a light beam to travel from the emitter to the object and back to determine the position and distance of the object. This allows the light curtain to accurately detect different types and colors of objects, including metal, plastic, transparent, and reflective surfaces. Whether on high-speed production lines or in complex industrial environments, ToF technology provides stable and reliable sensing performance, ensuring smooth workflow.

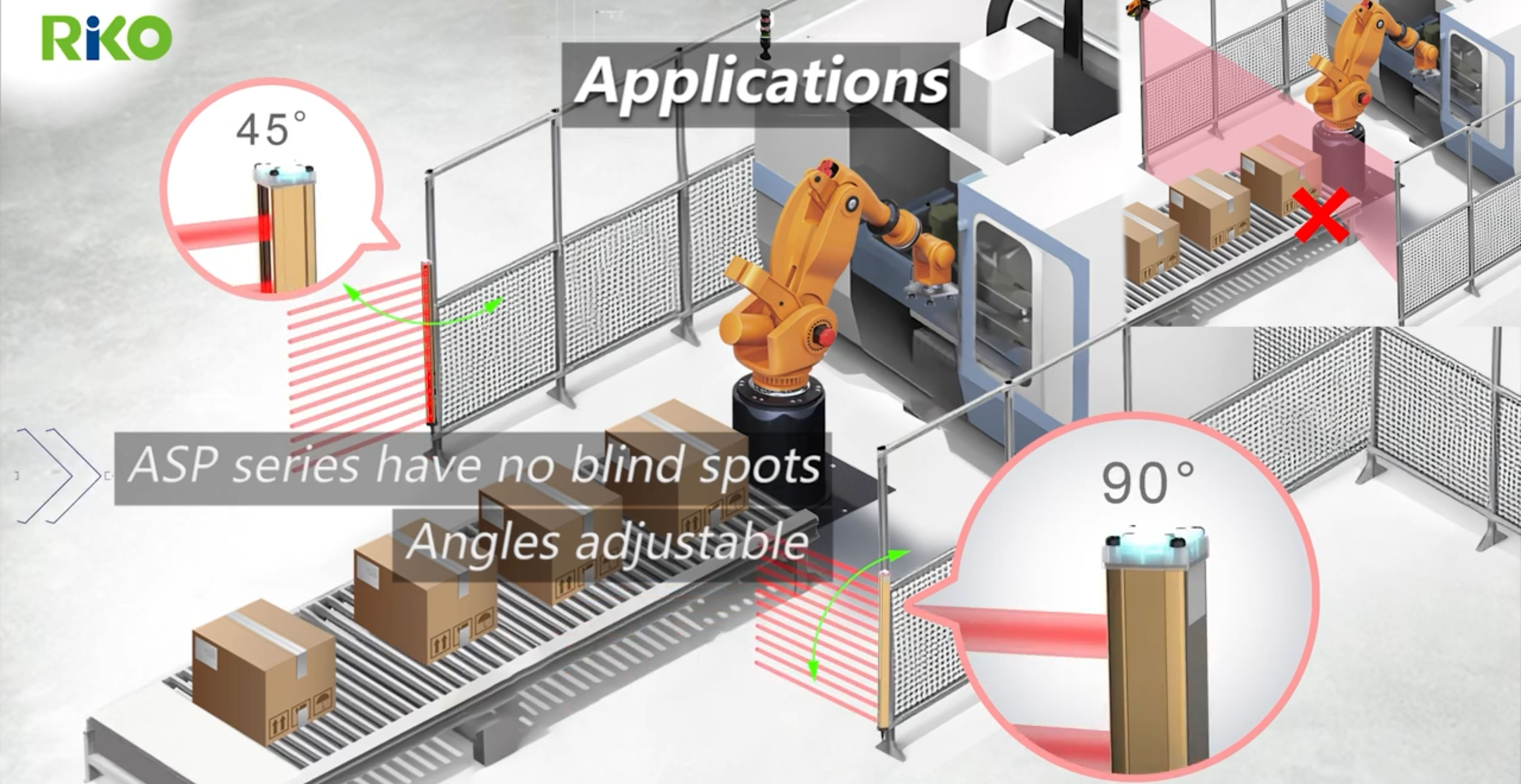

2. Flexible Angle Adjustment, Easier Installation

Traditional through-beam light curtains require precise alignment of the emitter and receiver units, leading to cumbersome adjustment processes and installation challenges. The ASP Reflective Area Photo Sensor eliminates this issue. Due to its reflective design, you only need to install one emitter/receiver unit and a reflector. There’s no need for precise alignment of two separate units. This not only greatly simplifies the installation process but also allows for more flexible sensor angle adjustments, accommodating various installation environments, and saving valuable time and labor costs.

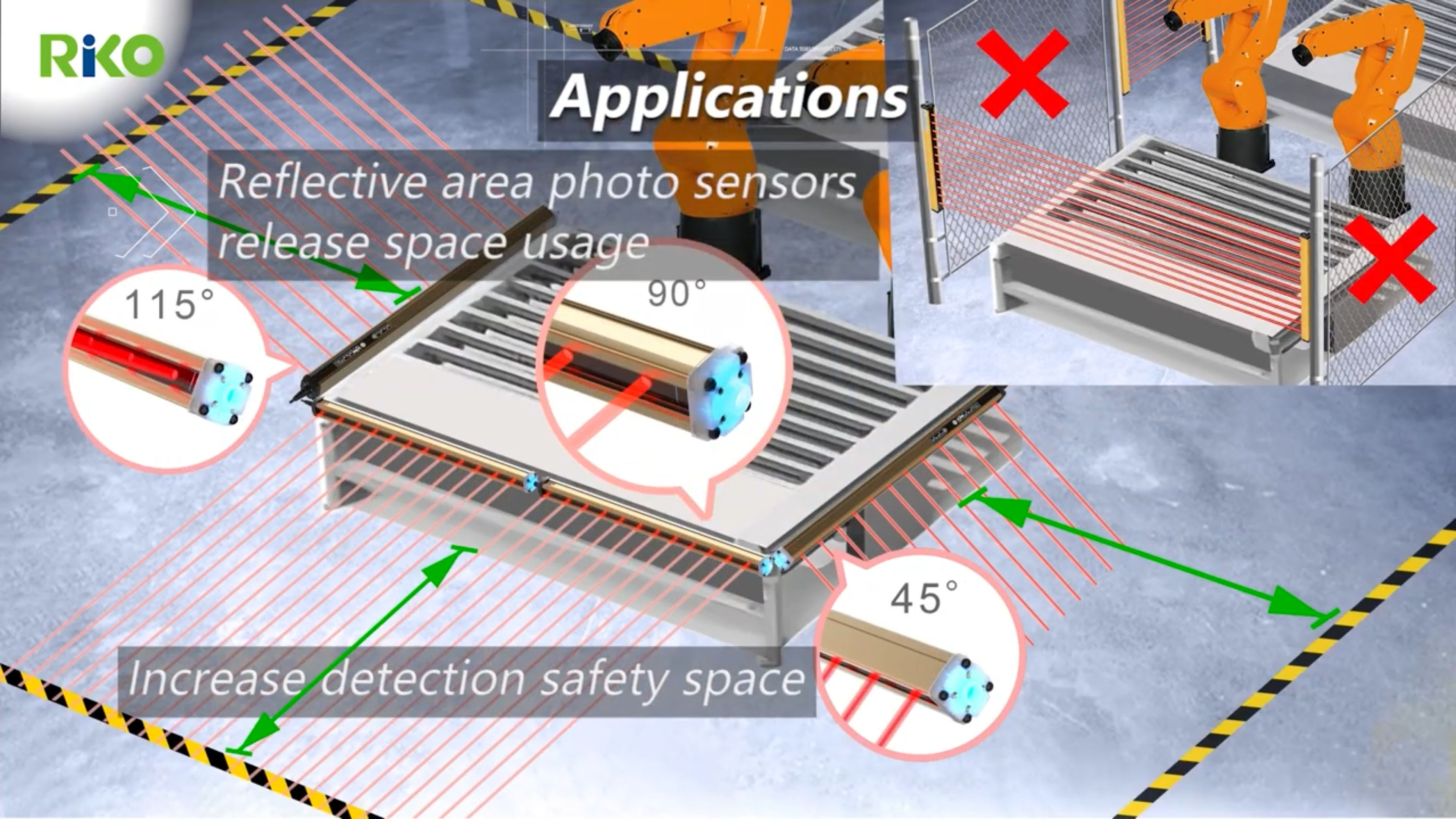

3. Increased Space Utilization

Another significant advantage of the ASP Reflective Area Photo Sensor is its efficient space utilization. Traditional through-beam light curtains often face space constraints, requiring a straight line between the emitter and receiver units, which can occupy a lot of space. The reflective light curtain, however, only requires a reflector installation, freeing up more space. This flexibility in setup maximizes the use of the work area, thereby improving overall production efficiency.

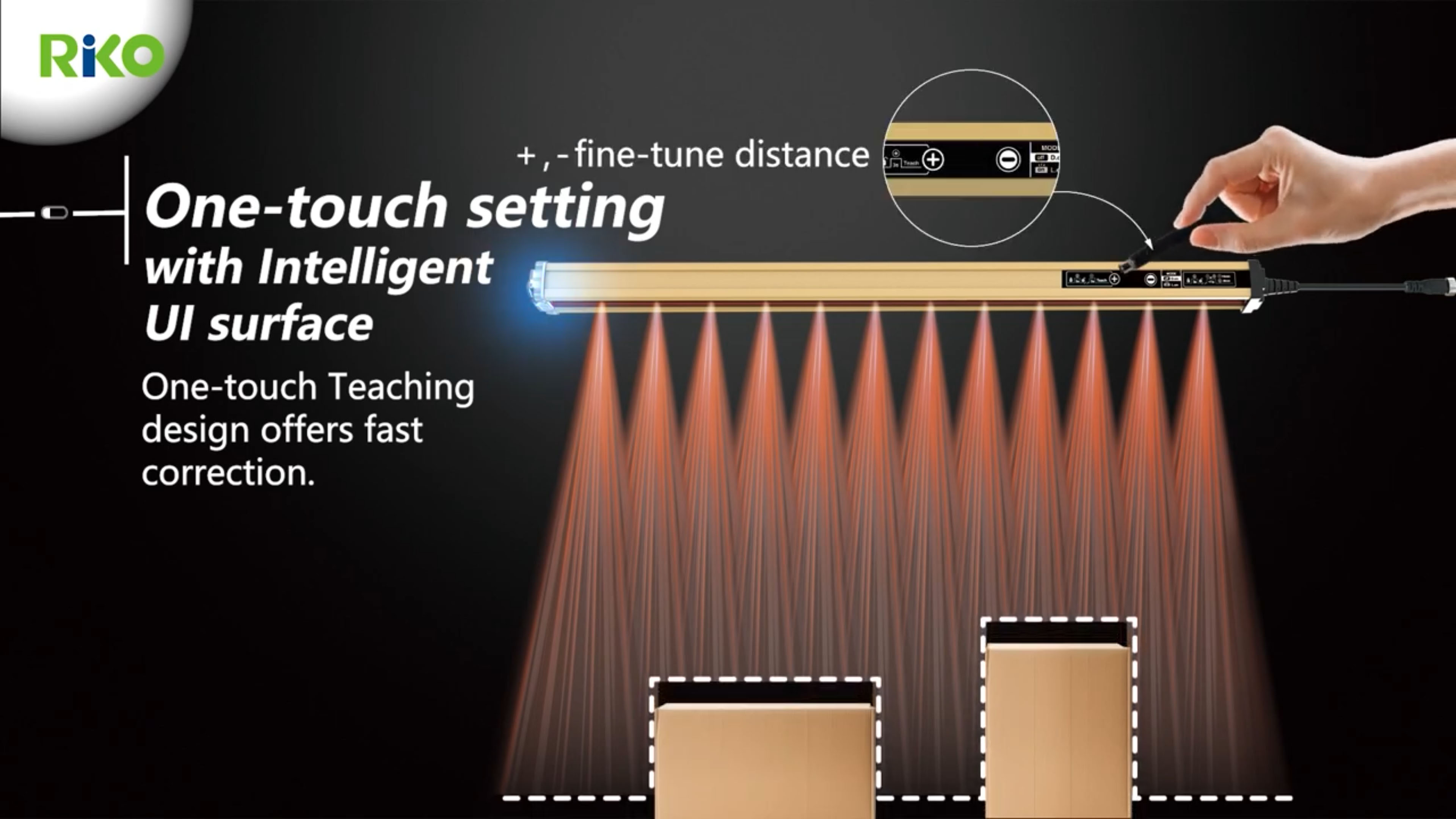

4. Configurable Sensing Area and Adjustable Detection Distance

The ASP Reflective Area Photo Sensor offers advanced sensing area configuration capabilities. Users can set the sensing coverage area according to their needs, including obstacle avoidance in specific areas or focusing on detecting certain zones only. After configuring the sensing area, the detection distance can also be fine-tuned to ensure optimal detection performance. This feature allows the light curtain to flexibly respond to various complex environments, providing precise safety protection.

Technical Advantages

Advantages Over Through-Beam Light Curtains

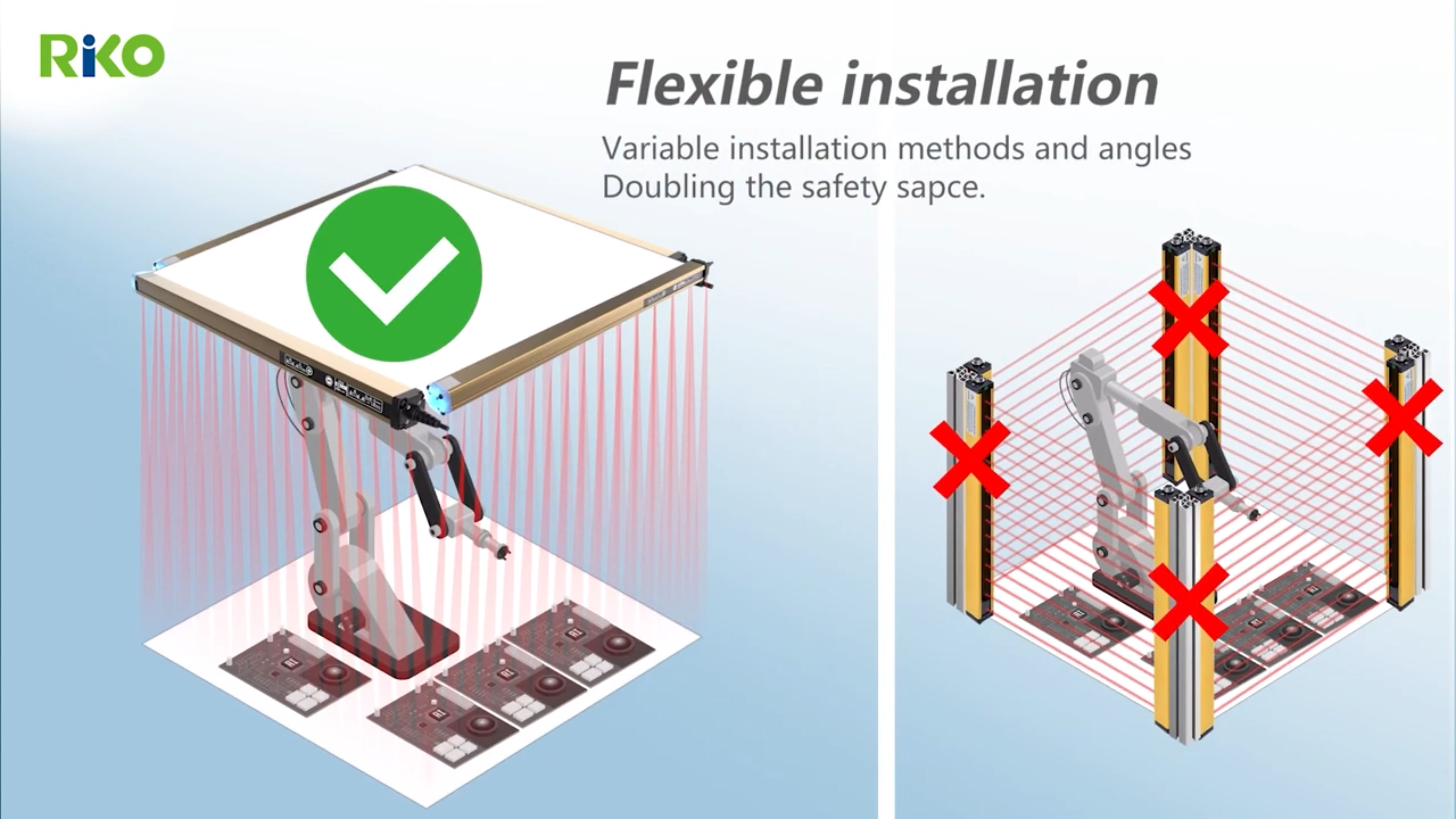

1. Spatial Flexibility: Traditional through-beam light curtains require straight-line alignment between the emitter and receiver units, limiting spatial flexibility. The ASP Reflective Area Photo Sensor only needs a reflector, offering more flexible installation positions suitable for various complex environments.

2. Simplified Installation: The installation process for through-beam light curtains is cumbersome, needing precise alignment of the emitter and receiver units. The reflective light curtain simplifies this process, requiring only the installation of an emitter/receiver unit and a reflector, with no need for precise alignment, thus saving installation time and costs.

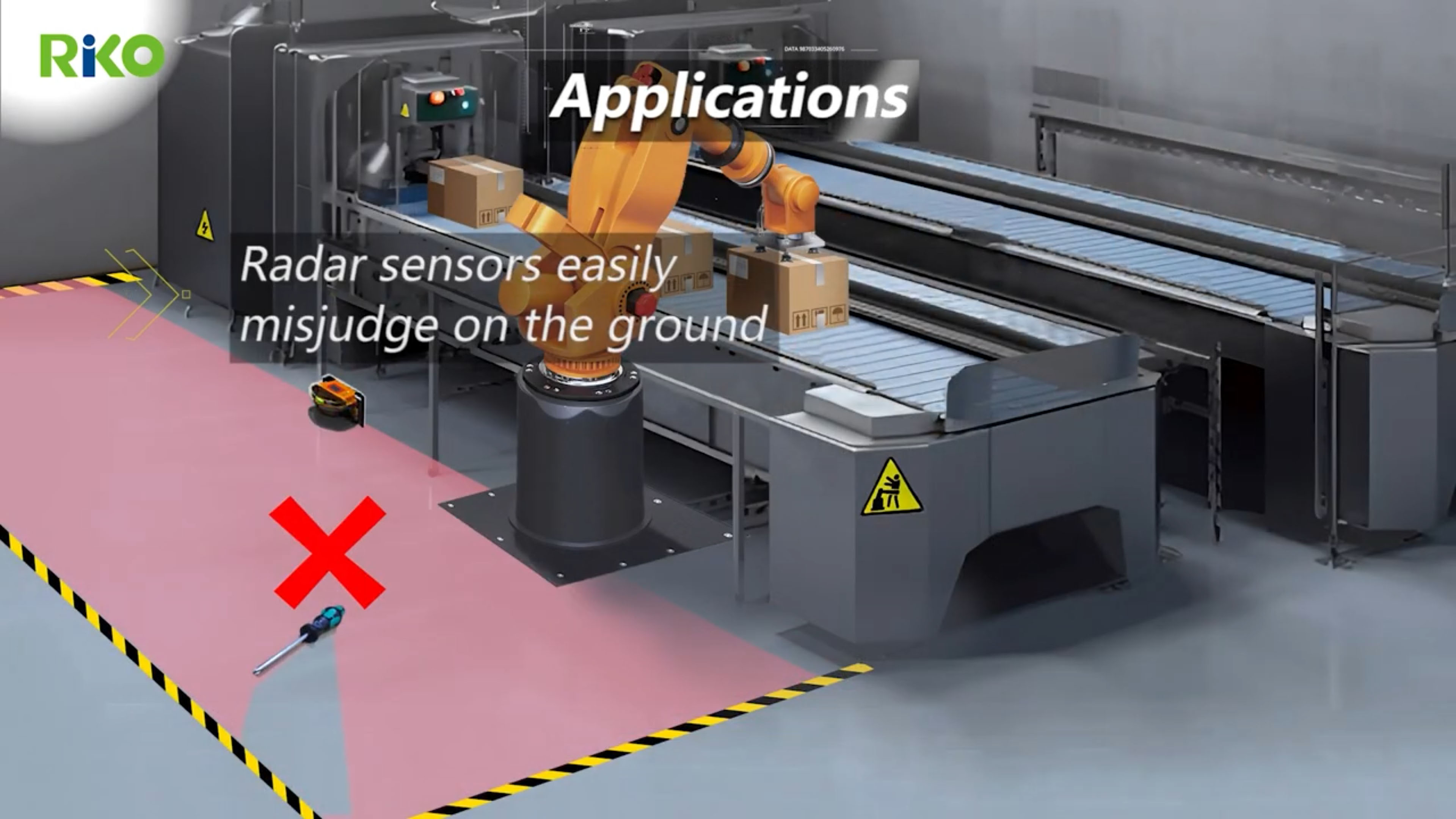

Advantages Over Ground-Based Radar Sensors

1. Flexible Installation Position: Radar sensors need to be installed on the ground, making them susceptible to ground conditions and obstacles. The ASP Reflective Light Curtain can be installed at any height and angle, avoiding ground obstacles and offering more flexible installation options.

2. No Ground Proximity Required: Radar sensors need to be installed close to the ground, potentially being limited by the ground environment. The reflective light curtain can be installed at higher positions, avoiding ground interference, and providing more stable sensing performance.

   By choosing the ASP Reflective Area Photo Sensor, you will experience the safety protection and operational convenience brought by the latest technology. Whether you are enhancing work efficiency or ensuring operational safety, this light curtain will be the ideal choice in the field of industrial control sensing.

For more information, please visit our detailed specifications.
