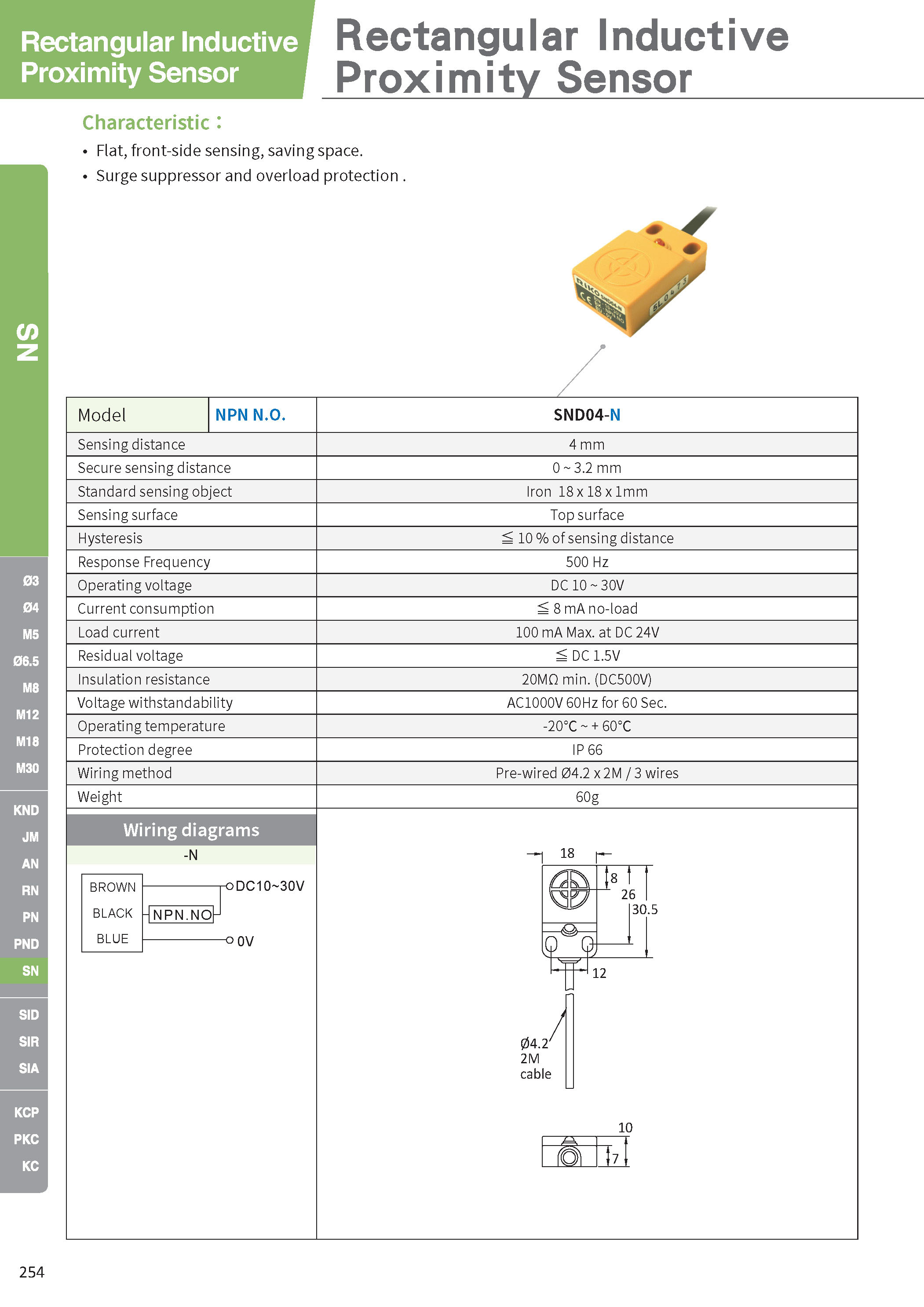

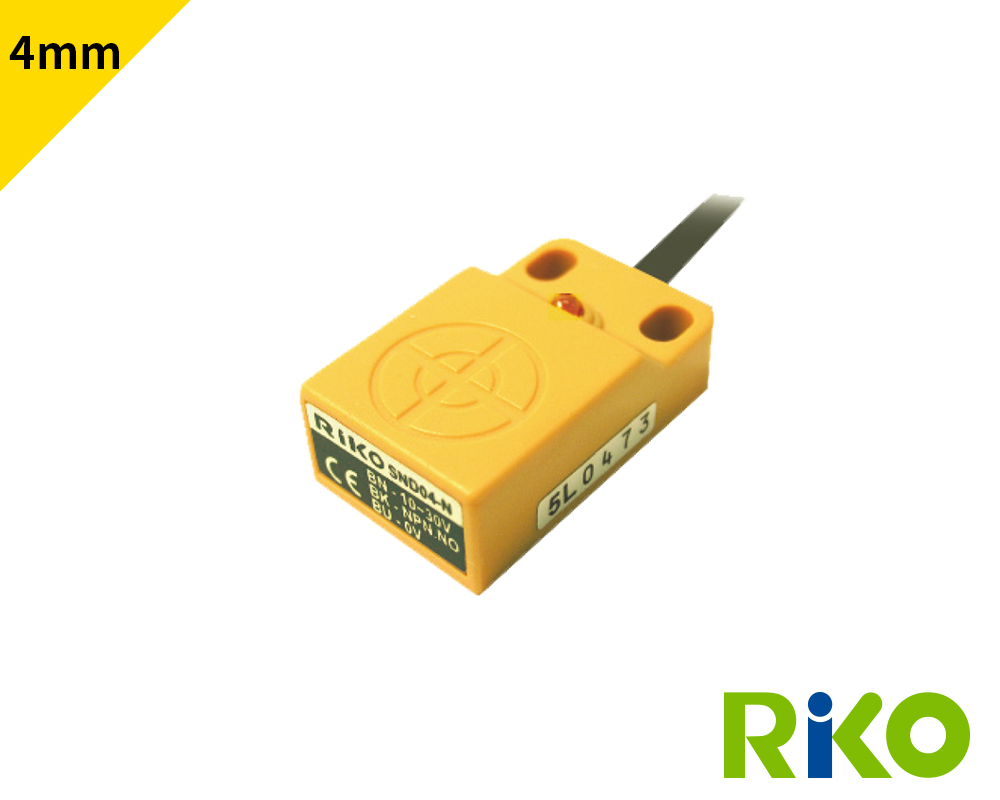

SND04-N Rectangular Inductive Proximity Sensor
• Flat, front-side sensing, saving space.
• Surge suppressor and overload protection .
Description
Specification
| Model | Rectangular Inductive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. |
| Detection distance | 4 mm |
| Secure sensing distance | 0 ~ 3.2 mm |
| Standard sensing object | Iron 18 × 18 × 1 mm |
| Detection direction | Top surface |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 500 Hz |
| Operating voltage | DC 10 ~ 30V |
| Current consumption | ≦ 8 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 66 |
| Wiring method | Pre-wired Ø4.2 x 2M / 3 wires |
| Weight | 60g |
