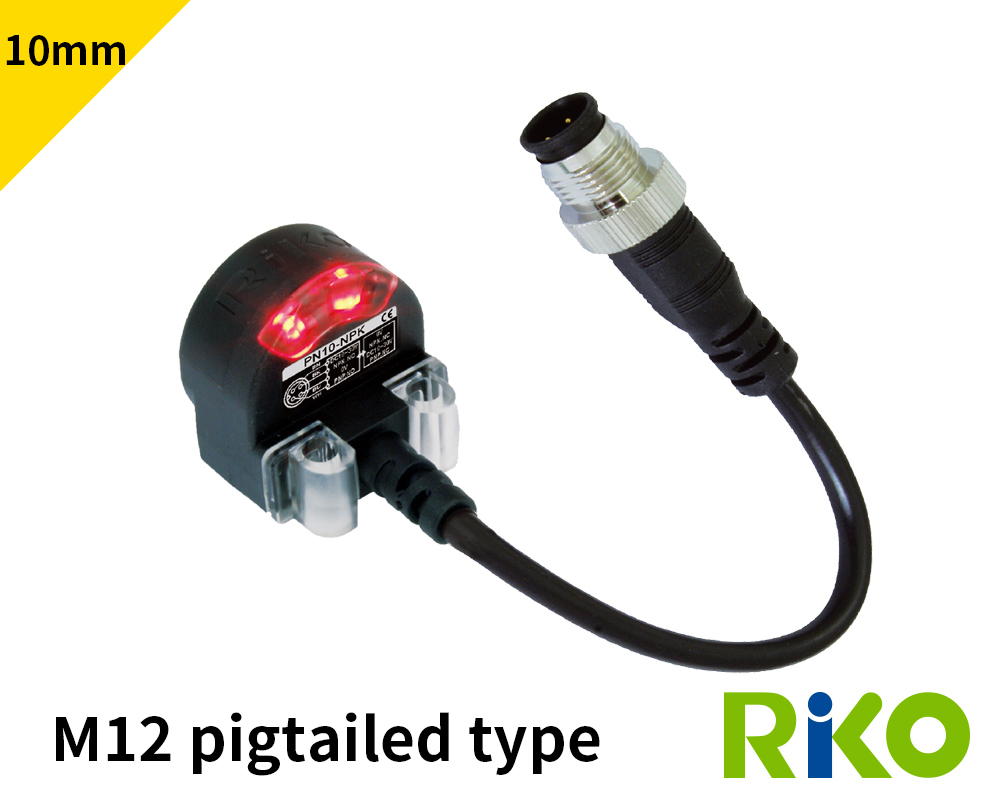

PN10-NPK Rectangular Inductive Proximity Sensor
• 1/2 smaller dimension than old models.
• Dual LED motion indicators.
• Surge suppressor and overload protection .
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
Description
Specification
| Model | Rectangular Inductive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. / N.C. PNP N.O. / N.C. |
| Detection distance | 10 mm |
| Secure sensing distance | 0 ~ 8 mm |
| Standard sensing object | Iron 30 x 30 x 1mm |
| Detection direction | Front surface |
| Hysteresis | ≦10% of sensing distance |
| Response time | 300 Hz |
| Operating voltage | DC 12 ~ 30V |
| Current consumption | ≦ 16 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP67 |
| Option | 1. Bracket：PN10-M001 / PN10-M002 2. M124R-PVC-2M Only connector type available for purchase |
| Wiring method | M12 pigtailed type |
| Weight | 40g |
