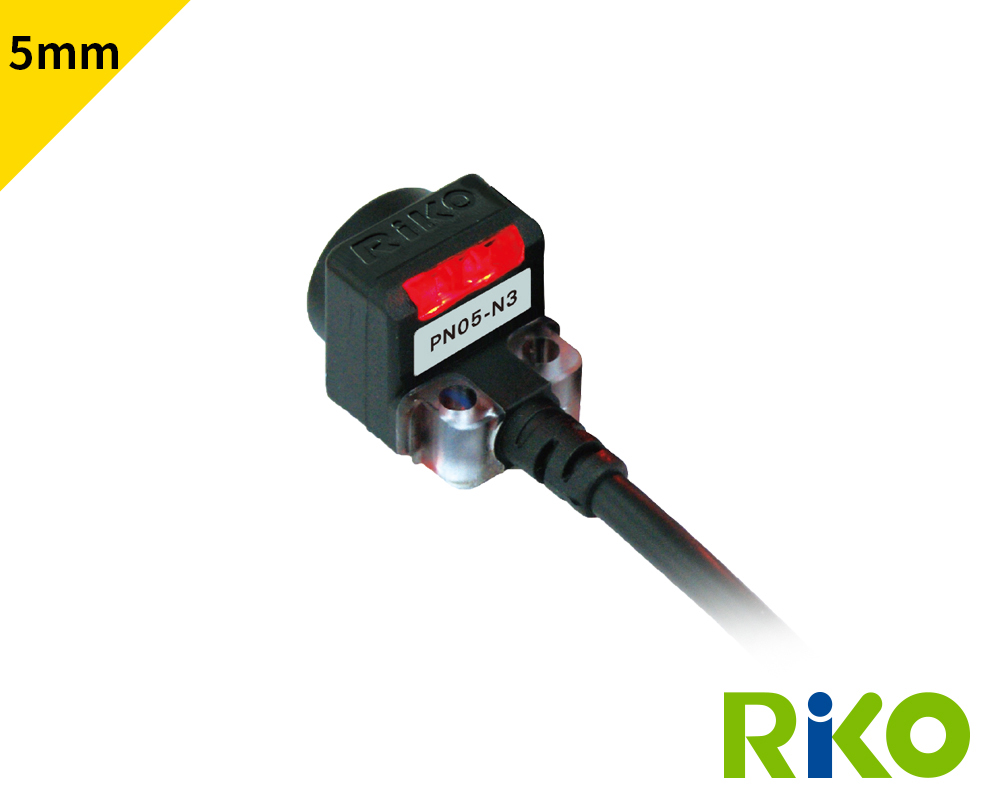

PN05-N3 Rectangular Inductive Proximity Sensor
• 1/2 smaller dimension than old models.
• Dual LED motion indicators.
• Surge suppressor and overload protection .
• N3/P3 model : NPN N.O./N.C. & PNP N.O./N.C. 2-in-1 outputs.
Description

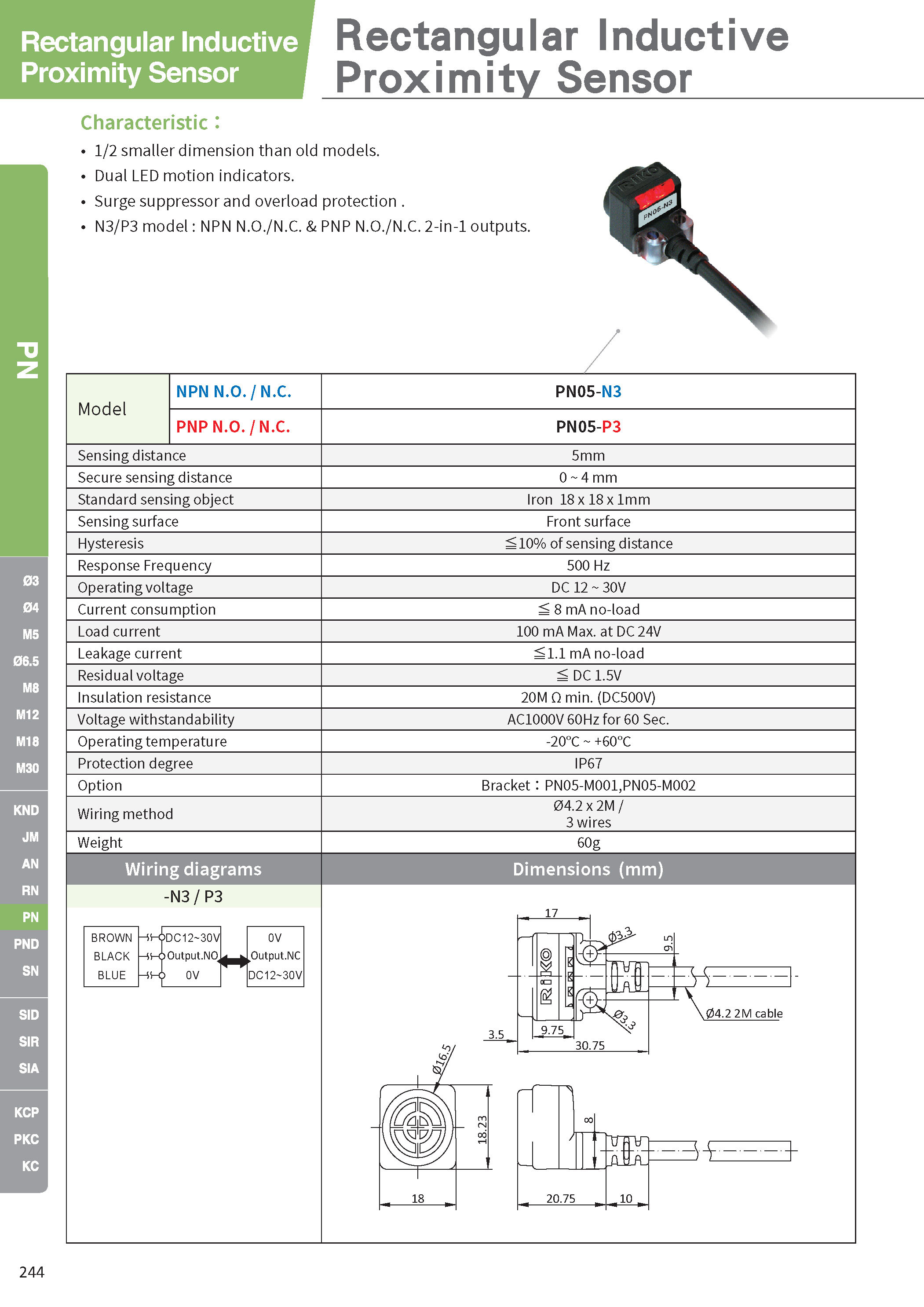

Specification
| Model | Rectangular Inductive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. / N.C. |
| Detection distance | 5mm |
| Secure sensing distance | 0 ~ 4 mm |
| Standard sensing object | Iron 18 × 18 × 1 mm |
| Detection direction | Front surface |
| Hysteresis | ≦10% of sensing distance |
| Response time | 500 Hz |
| Operating voltage | DC 12 ~ 30V |
| Current consumption | ≦ 8 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Leakage current | ≦ 1.1 mA no-load |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP67 |
| Option | Bracket ：PN05-M001,PN05-M002 |
| Wiring method | Ø4.2 x 2M / 3 wires |
| Weight | 60g |
