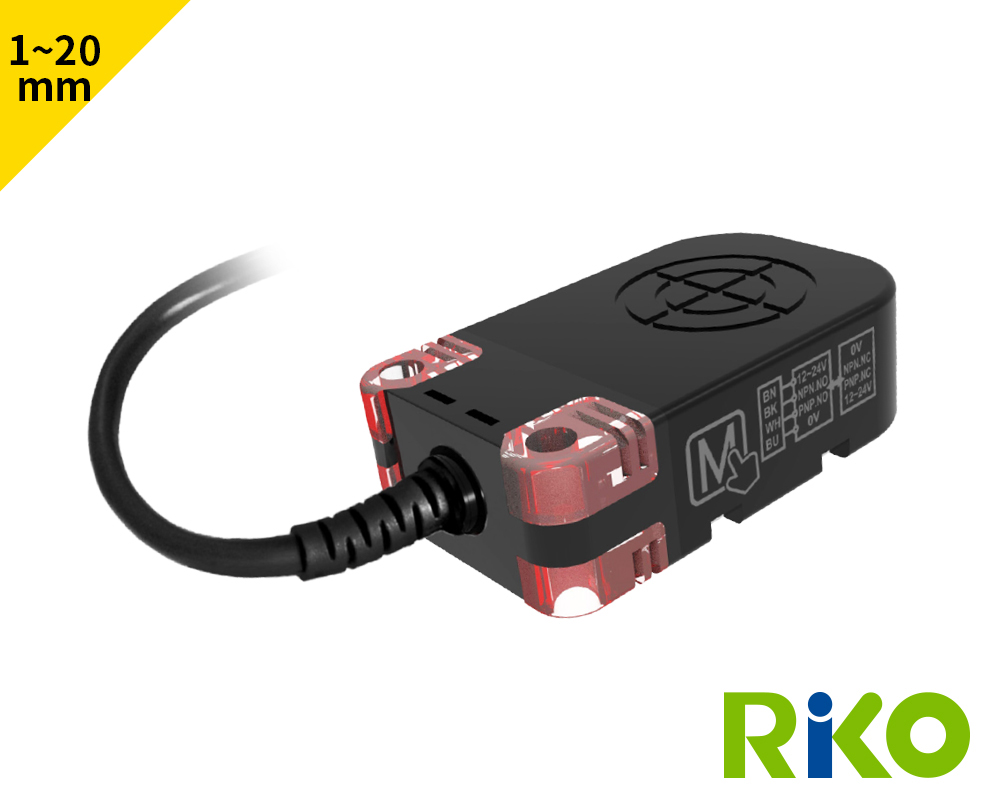

KCP20-NP Rectangular Capacitive Proximity Sensor
• Detectable: Non-metallic objects such as water, oil, glass, and plastic.
• New NP circuit: NPN/PNP NO/NC All in one.
Description

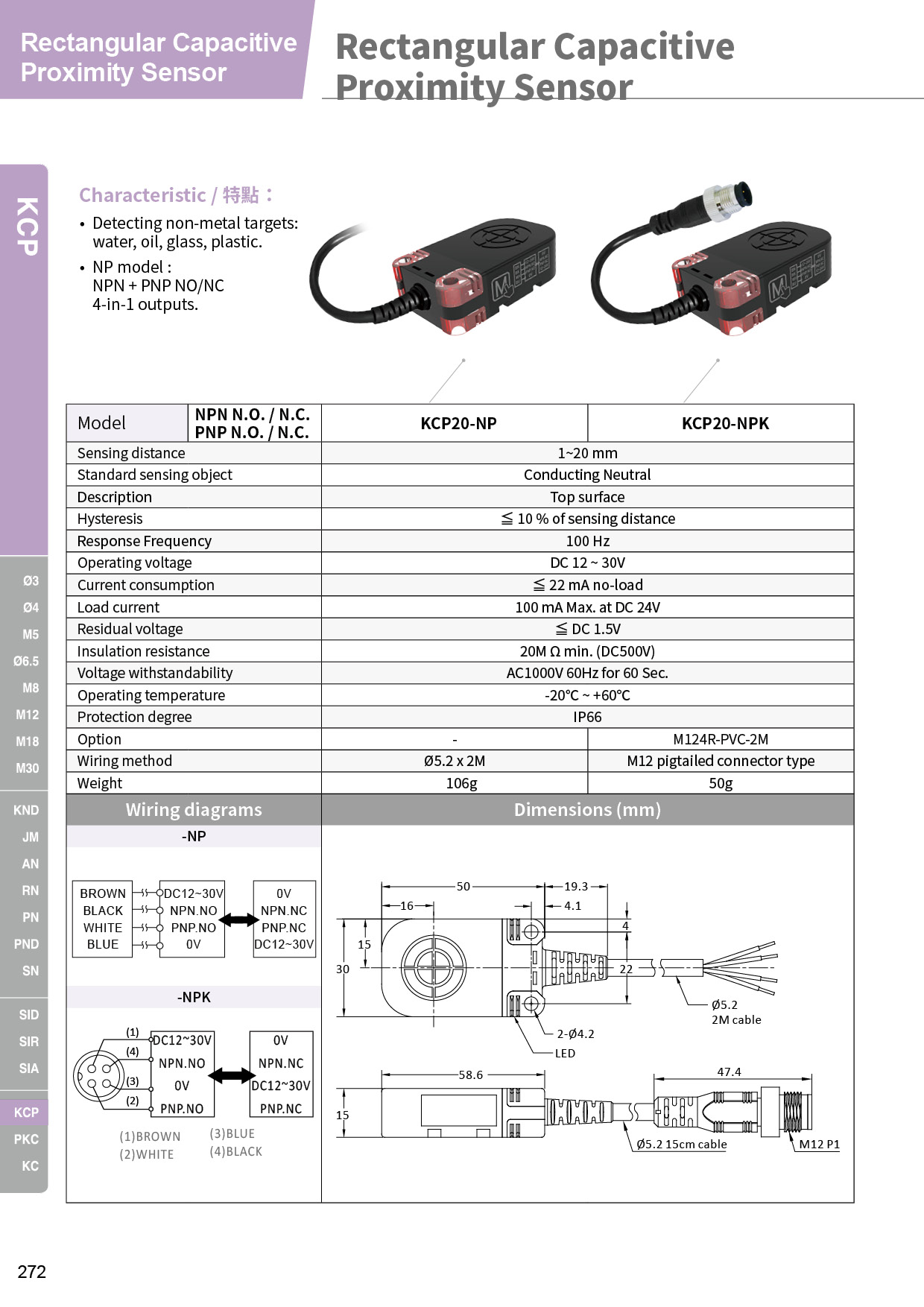

Specification
| Model | Rectangular Capacitive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. / N.C. PNP N.O. / N.C. |
| Detection distance | 1~20 mm |
| Standard sensing object | Conducting Neutral |
| Description | Top surface |
| Hysteresis | ≦ 10 % of sensing distance |
| Response time | 100 Hz |
| Operating voltage | DC 12 ~ 30V |
| Current consumption | ≦ 22 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ +60℃ |
| Protection degree | IP 66 |
| Wiring method | Ø5.2 x 2M |
| Weight | 106g |
