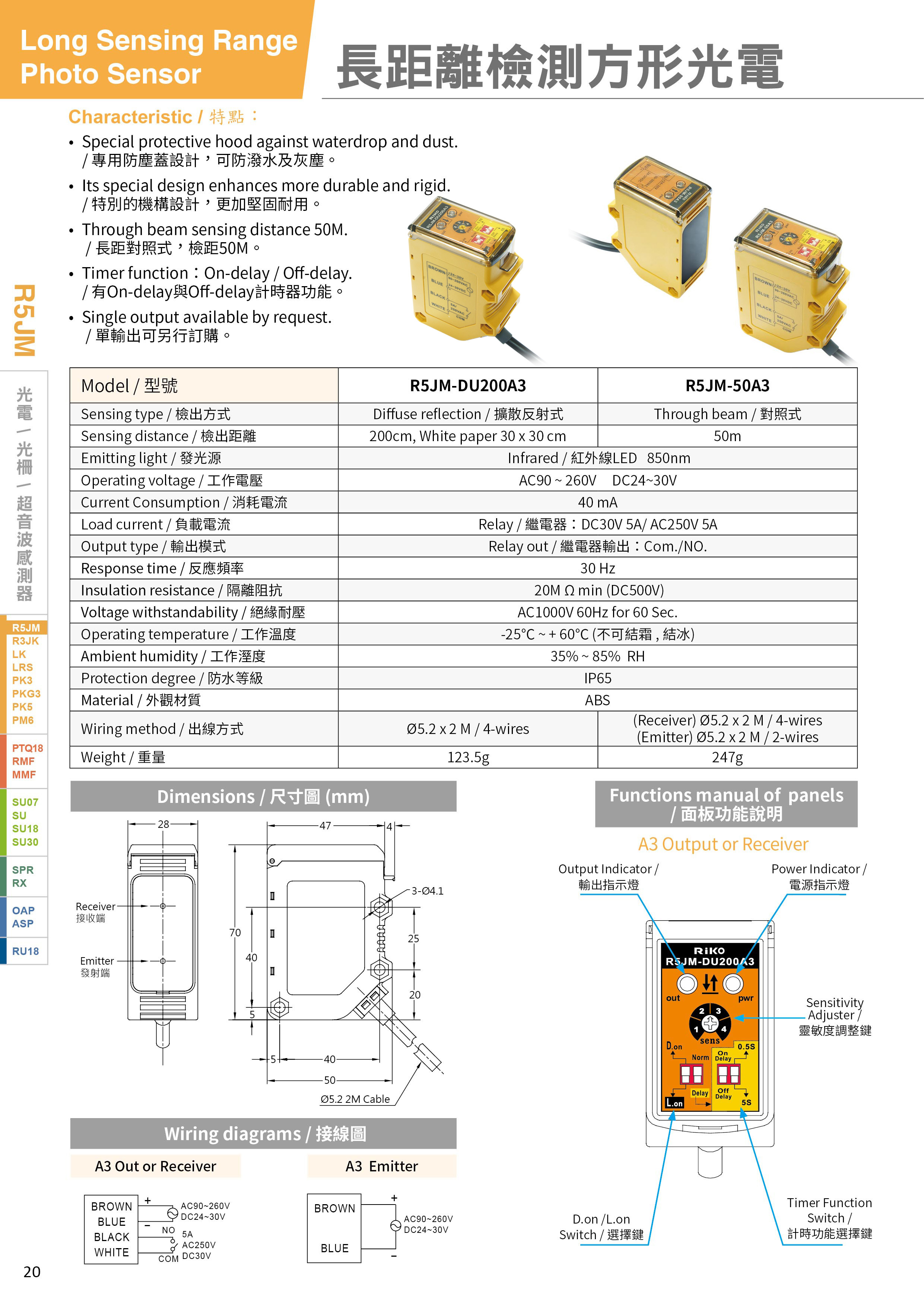

R5JM-DU200A3 Photo Sensor

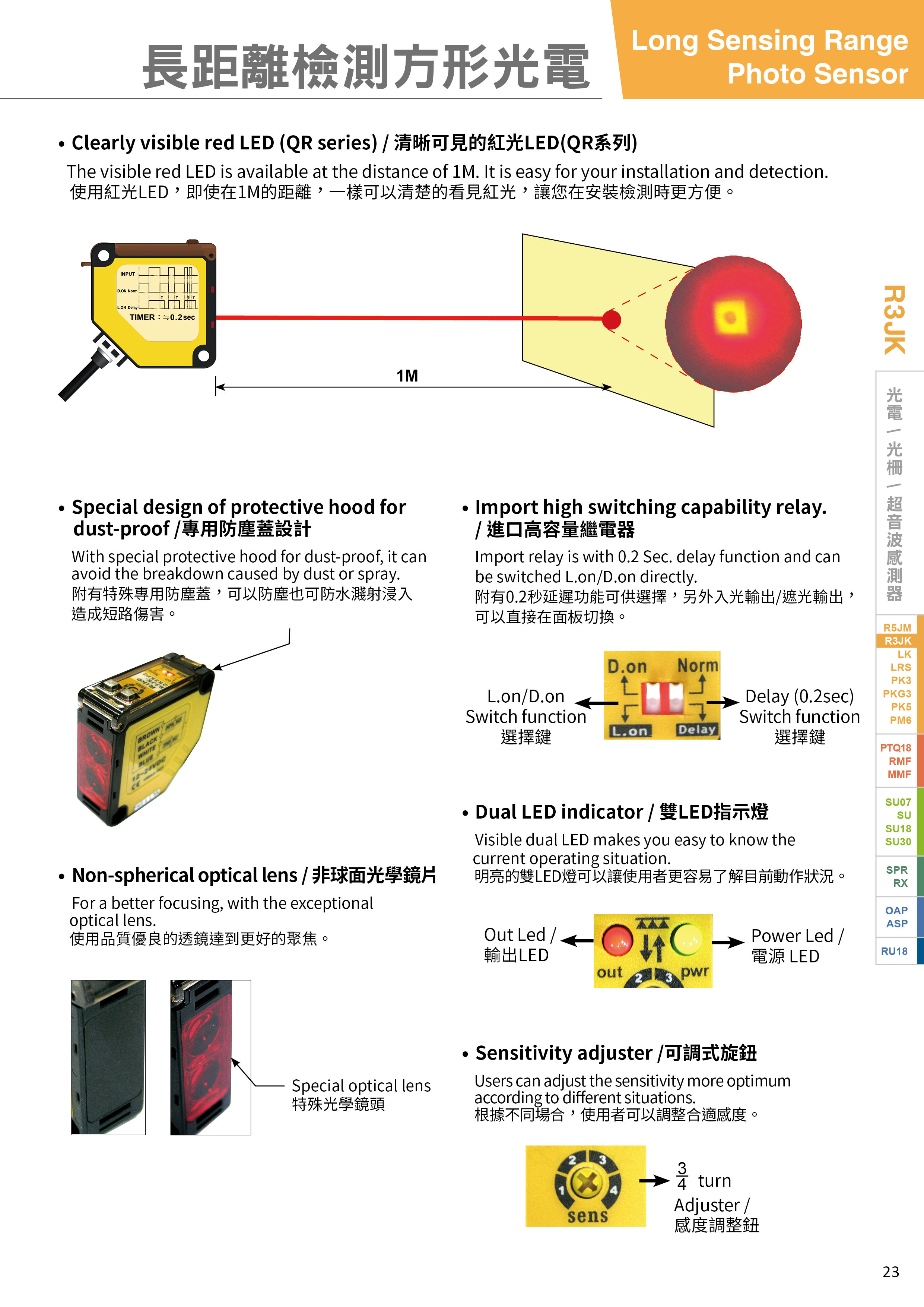

• Special protective hood against waterdrop and dust.
• Its special design enhances more durable and rigid.
• Through beam sensing distance 50M.
• Timer function : On - delay / Off-delay.
• Single output available by request.
Description
Specification
| Model | Long Sensing Range Photo Sensor |
|---|---|
| Detection distance | 200cm, white paper 30 x 30 cm |
| Light Emitter | infrared / 紅外線LED 850nm |
| Operating voltage | AC90 ~ 260V , DC24~30V |
| Current consumption | 40 mA |
| Load current | Relay : DC30V 5A/ AC250V 5A |
| Model / Type | Relay out：Com./NO. |
| Response time | 30 Hz |
| Insulation resistance | 20M Ω min (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -25℃ ~ + 60℃ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP 65 |
| Casing material | ABS |
| Wiring method | Ø5.2 x 2 M / 4-wires |
| Weight | 123.5g |
