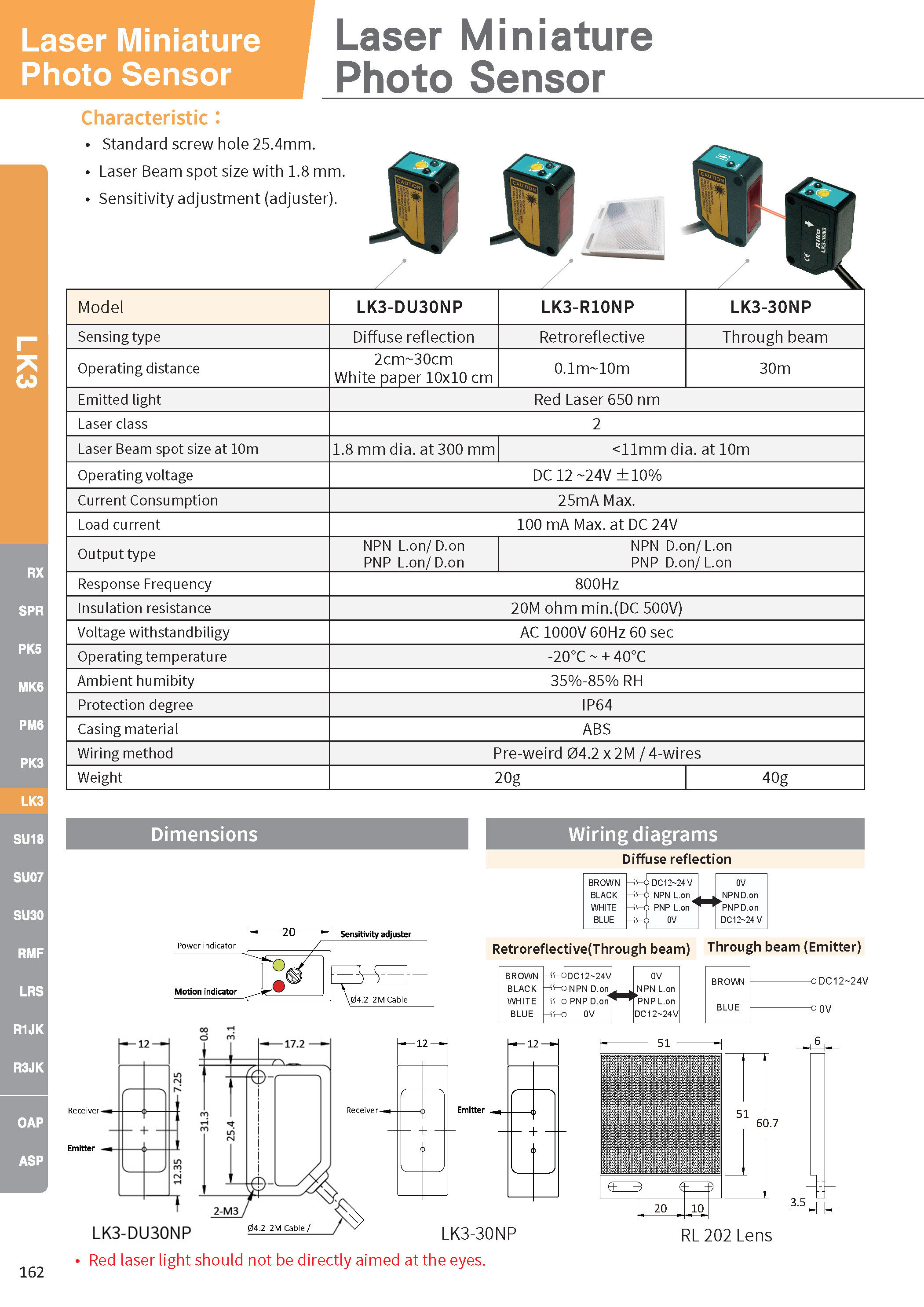

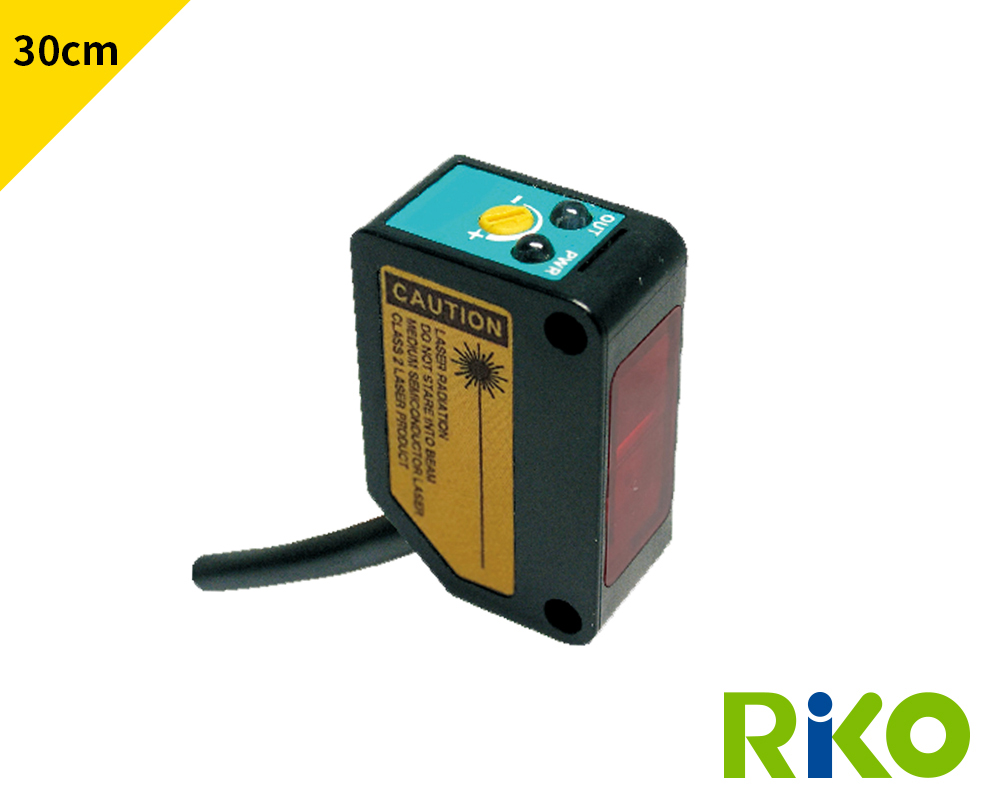

LK3-DU30NP Photo Sensor
• Standard screw hole 25.4mm.
• Laser Beam spot size with 1.8 mm.
• Sensitivity adjustment (adjuster).
Description
Specification
| Model | Laser Miniature Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection |
| Operating distance | 2-30 cm , White paper 10 x 10 cm. |
| Light Emitter | Red laser 650 nm |
| Laser class | 2 |
| Operating voltage | 12 ~ 24 V ±10% |
| Current consumption | 25mA max |
| Load current | Max 100 mA at DC 24V |
| Diameter of light spot | 1.8 mm dia. at 300 mm |
| Model / Type | NPN L.on/ D.on PNP L.on/ D.on |
| Response time | 800 Hz |
| Insulation resistance | 20M ohm min.(DC 500V) |
| Voltage withstandability | AC 1000V 60Hz 60 sec |
| Opera tetemperature | -20℃ ~ + 40℃ |
| Operating temperature | 35% - 85% RH |
| Protection degree | IP64 |
| Casing material | ABS |
| Wiring method | Pre-wired Ø4.2 x 2M / 4-wires |
| Weight | 20g |
