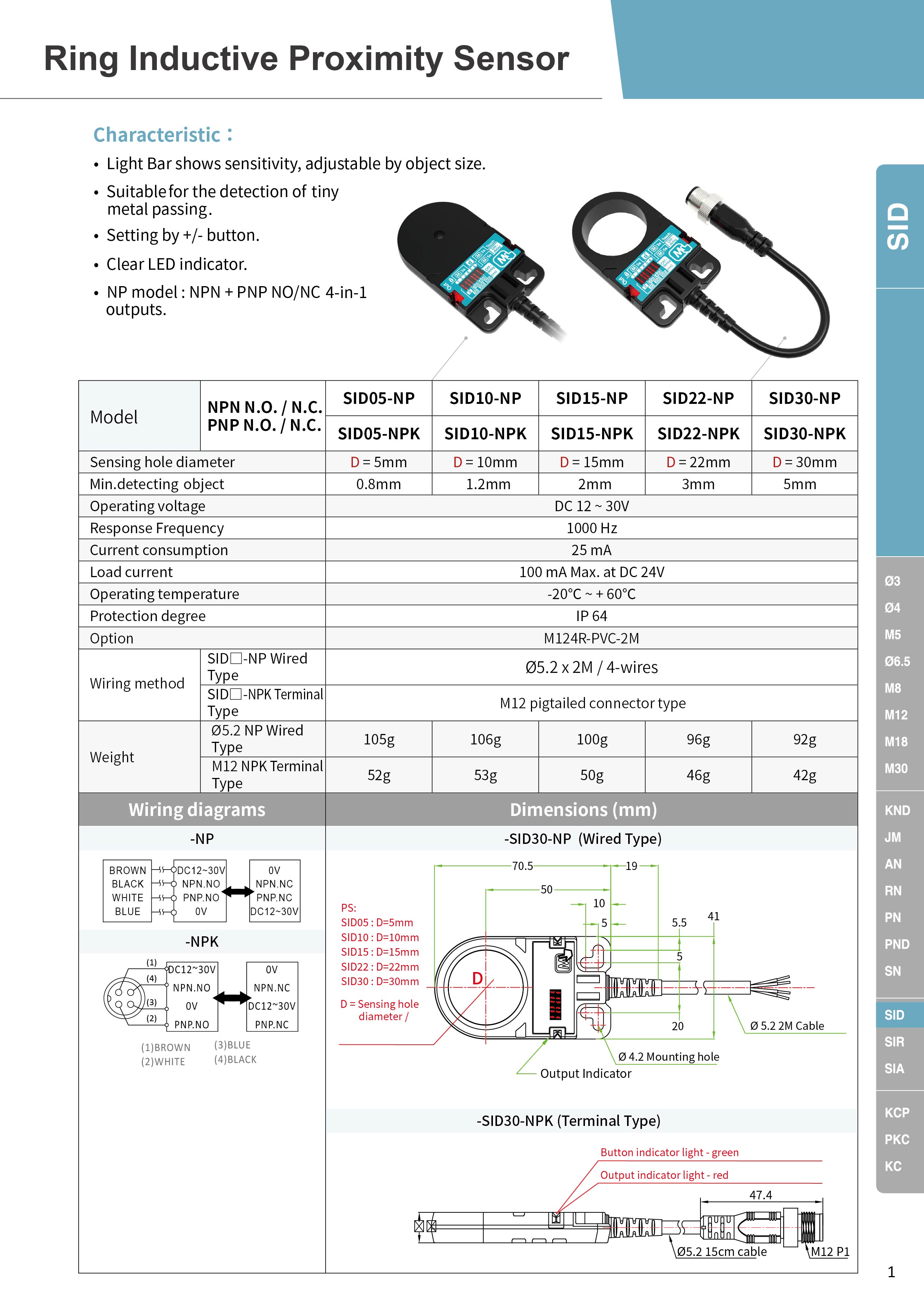

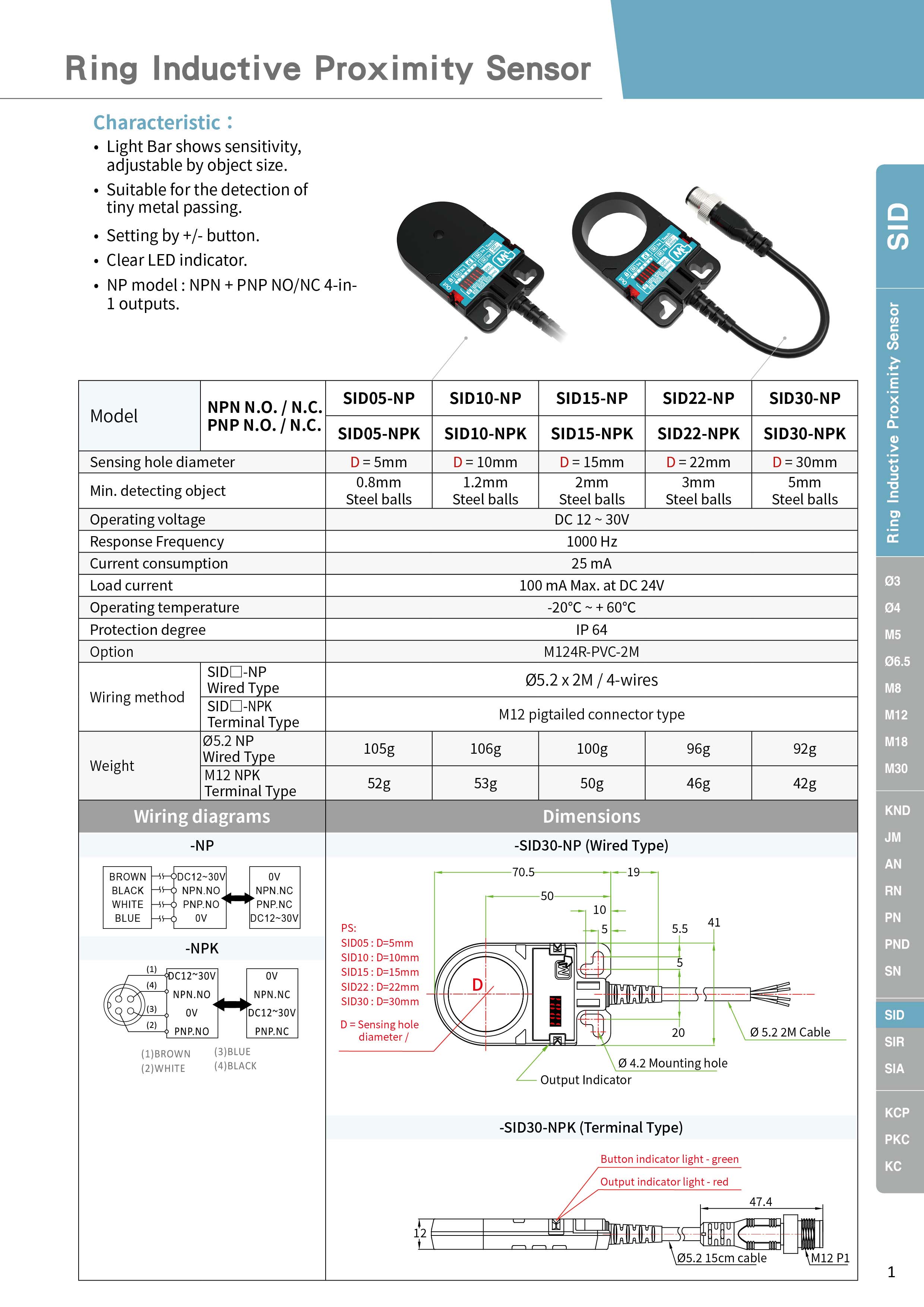

SID15-NP Ring Inductive Proximity Sensor
• Light Bar shows sensitivity, adjustable by object size.
• Suitable for the detection of tiny metal passing.

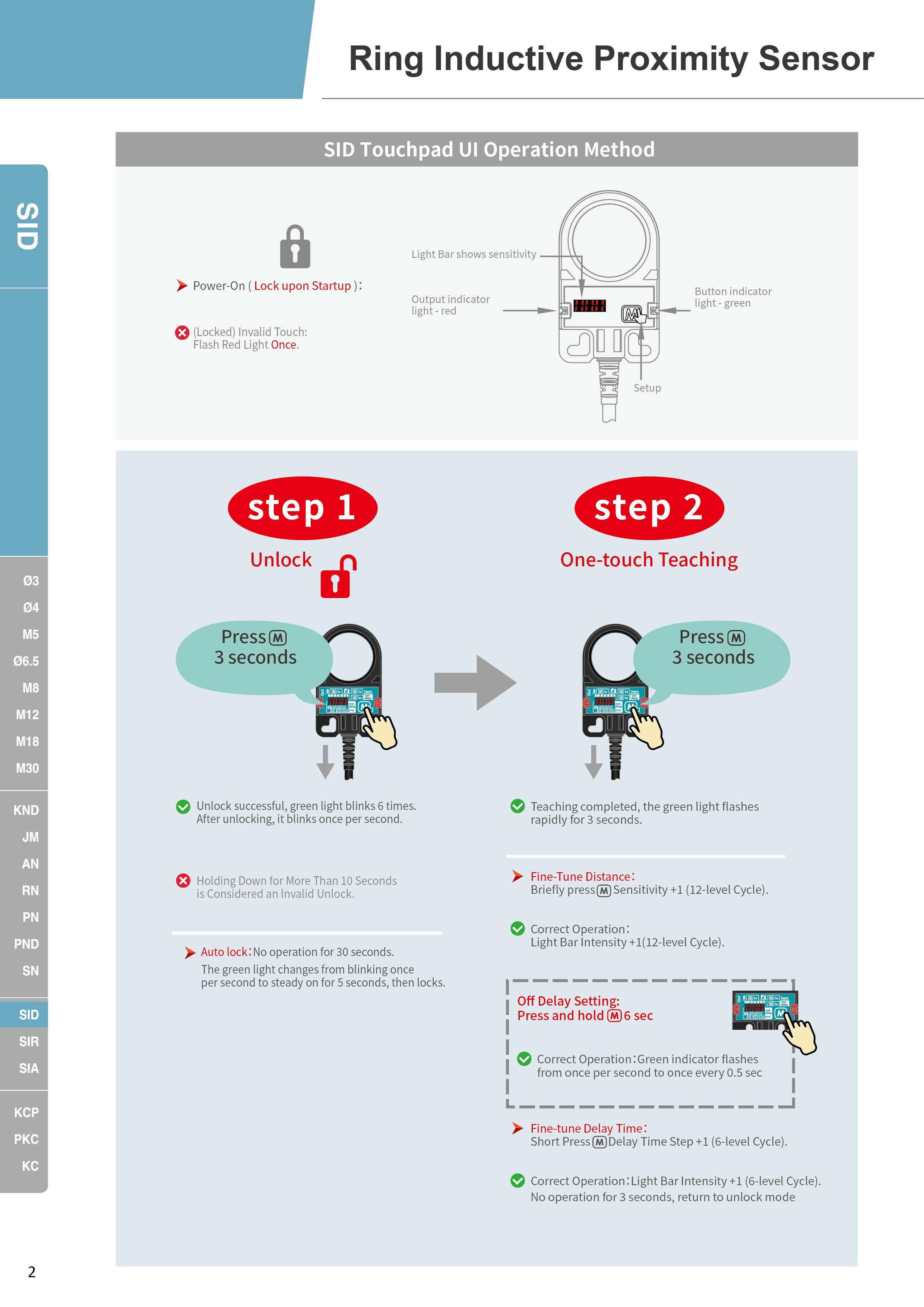

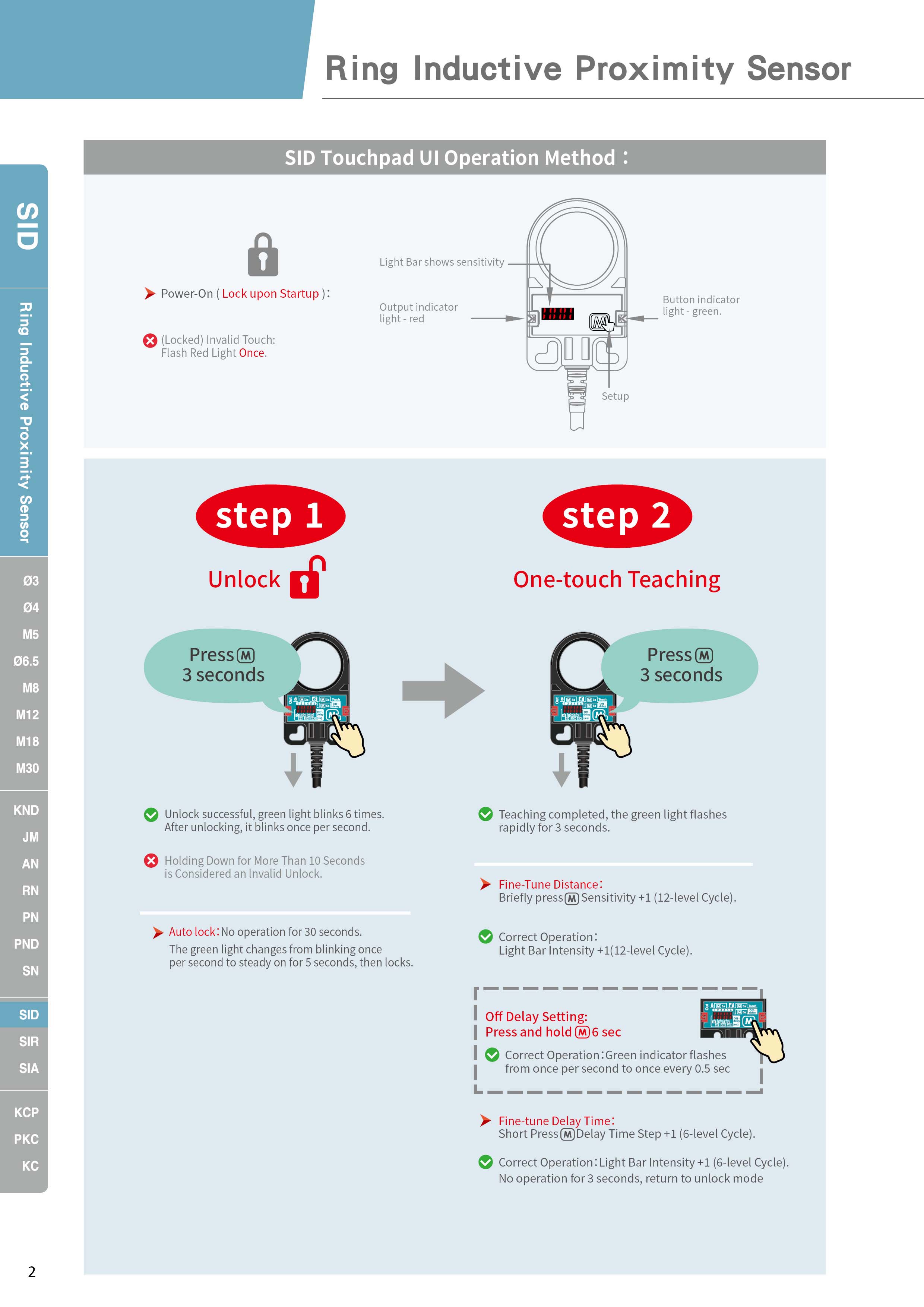

• Setting by 🄼 button.
• Clear LED indicator.
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
Description
Specification
| Model | Ring Inductive Proximity Sensor |
|---|---|
| Sensing hole diameter | D = 15mm |
| Minimum detectable object | 2mm 鋼珠 |
| Operating voltage | DC 12 ~ 30V |
| Response time | 1000 Hz |
| Current consumption | 25 mA |
| Load current | 100 mA Max. at DC 24V |
| Model / Type | NPN N.O / N.C. , PNP N.C. / N.O. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 64 |
| Option | M124R-PVC-2M |
| Wiring method | Ø5.2 X 2M / 4-wires |
| Weight | 100g |
