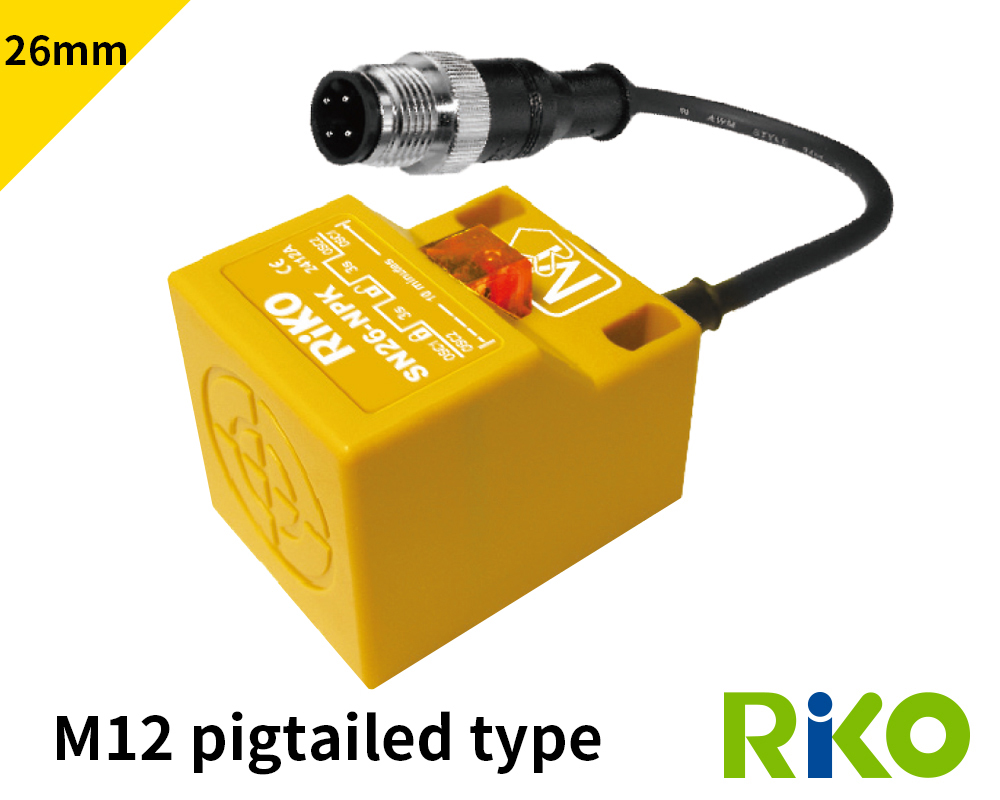

SN26-NPK Close-range rectangular proximity sensor
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
• Large LED indicator, Clearly checking working operation.
• Surge suppressor and overload protection .
• Applications for limit positioning, counting control.
• You can switch the oscillation frequency to avoid mutual interference.
Description
Specification
| Model | Close-range rectangular proximity sensor |
|---|---|
| Model / Type | NPN N.O. / N.C. PNP N.O. / N.C. |
| Detection distance | 26mm |
| Secure sensing distance | 0 ~ 20.8 mm |
| Standard sensing object | Iron 40 x 40 x 1mm |
| Detection direction | Front surface |
| Hysteresis | ≦ 15 % of sensing distance |
| Response time | 50 Hz |
| Operating voltage | DC 12 ~ 30V |
| Current consumption | ≦ 12 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | -5 ℃ ~ + 50 ℃ |
| Protection degree | IP 66 |
| Option | M124R-PVC-2M |
| Wiring method | M12 pigtailed type |
| Weight | 118g |
