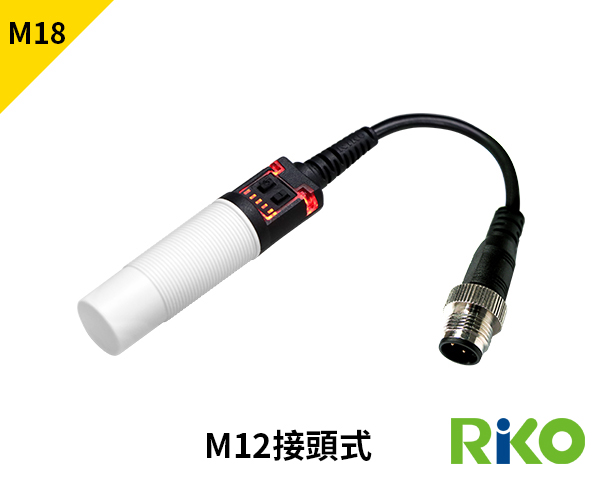

PKC1820-NPK Capacitive Proximity Sensor

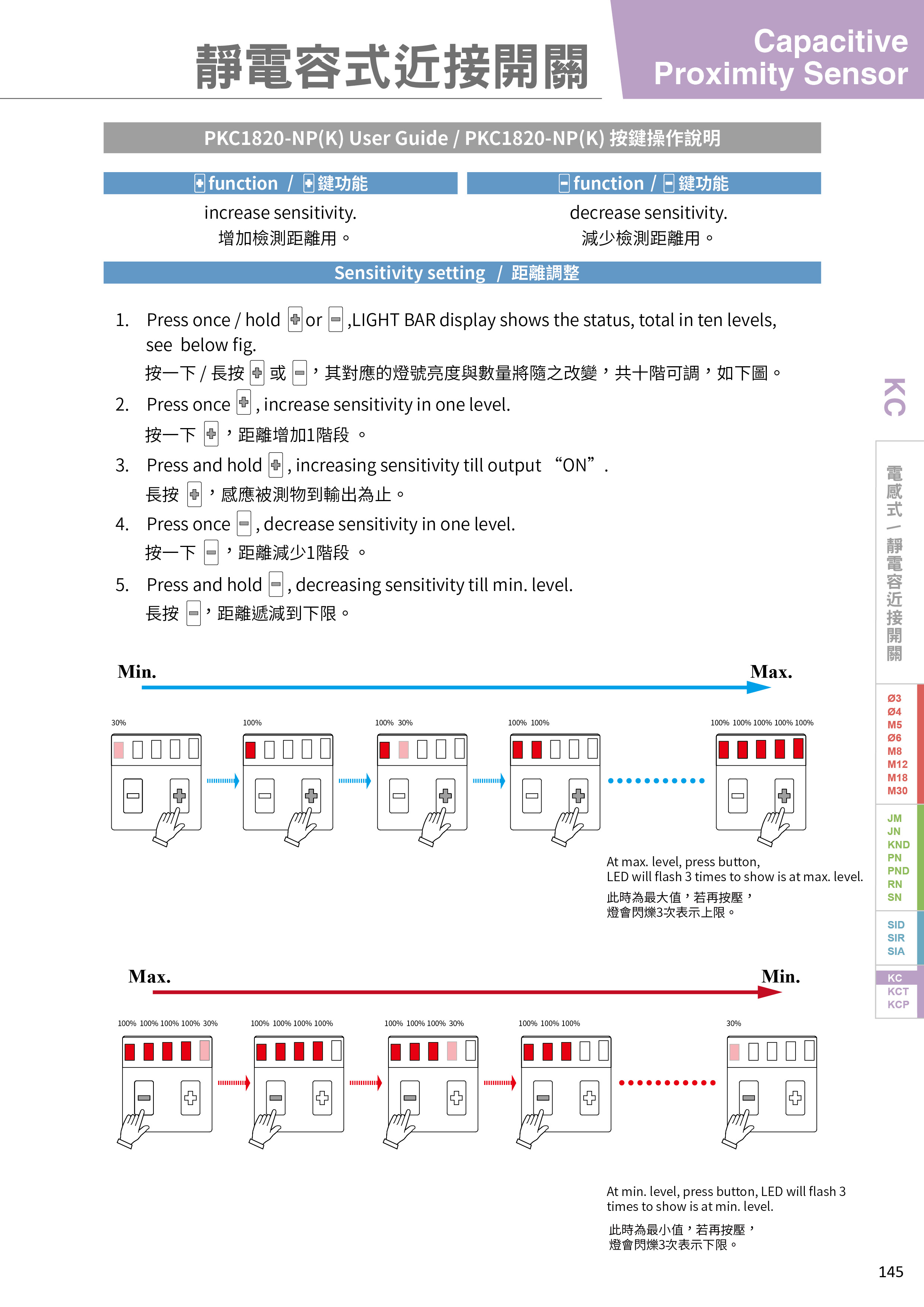

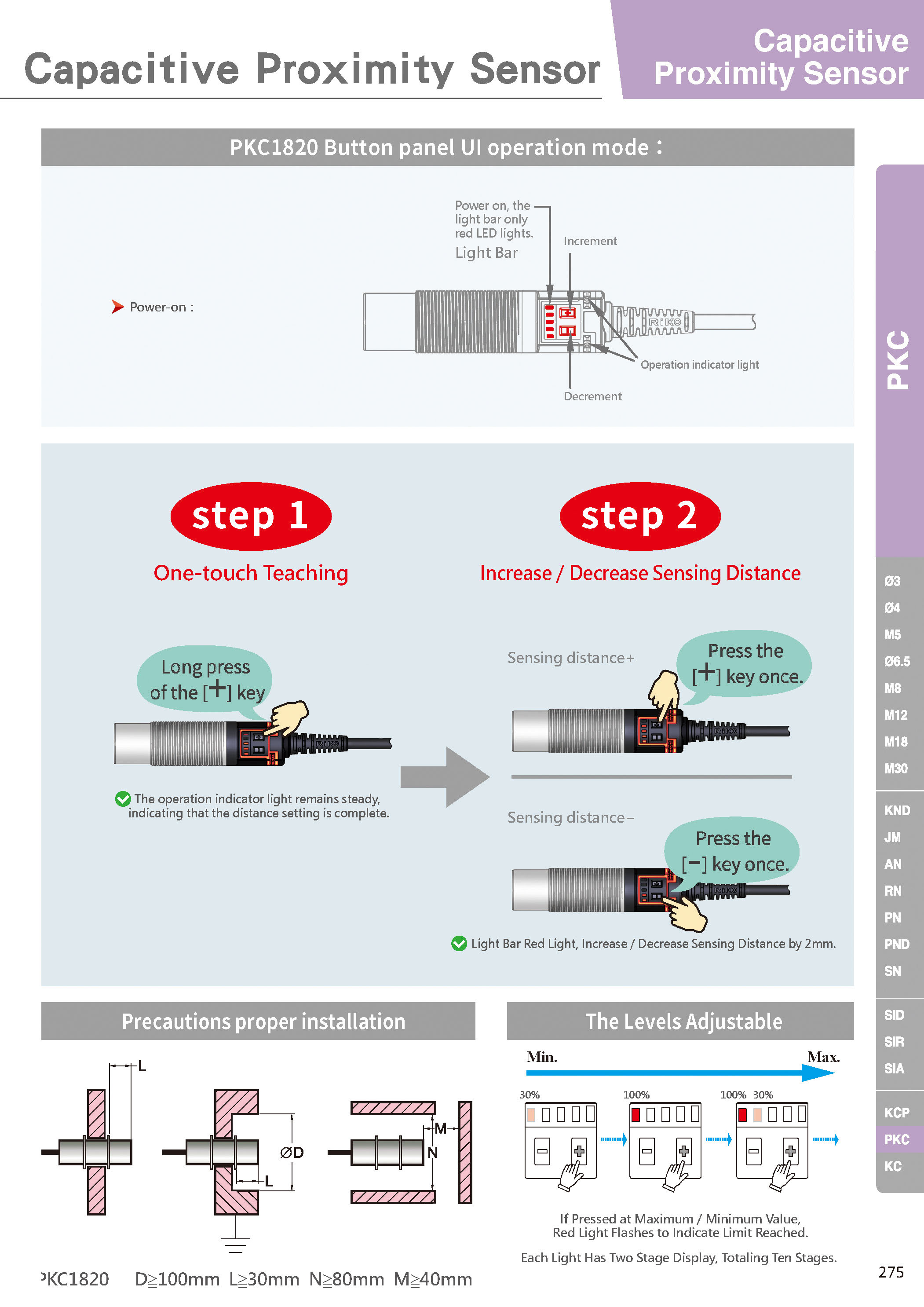

• LIGHT BAR display, +/- teach-in buttons , easy to setting.
• Widely applied to detect metal, oil, glass, plastic, paper etc.
• NP model : NPN + PNP NO/NC 4-in-1 outputs.
Description

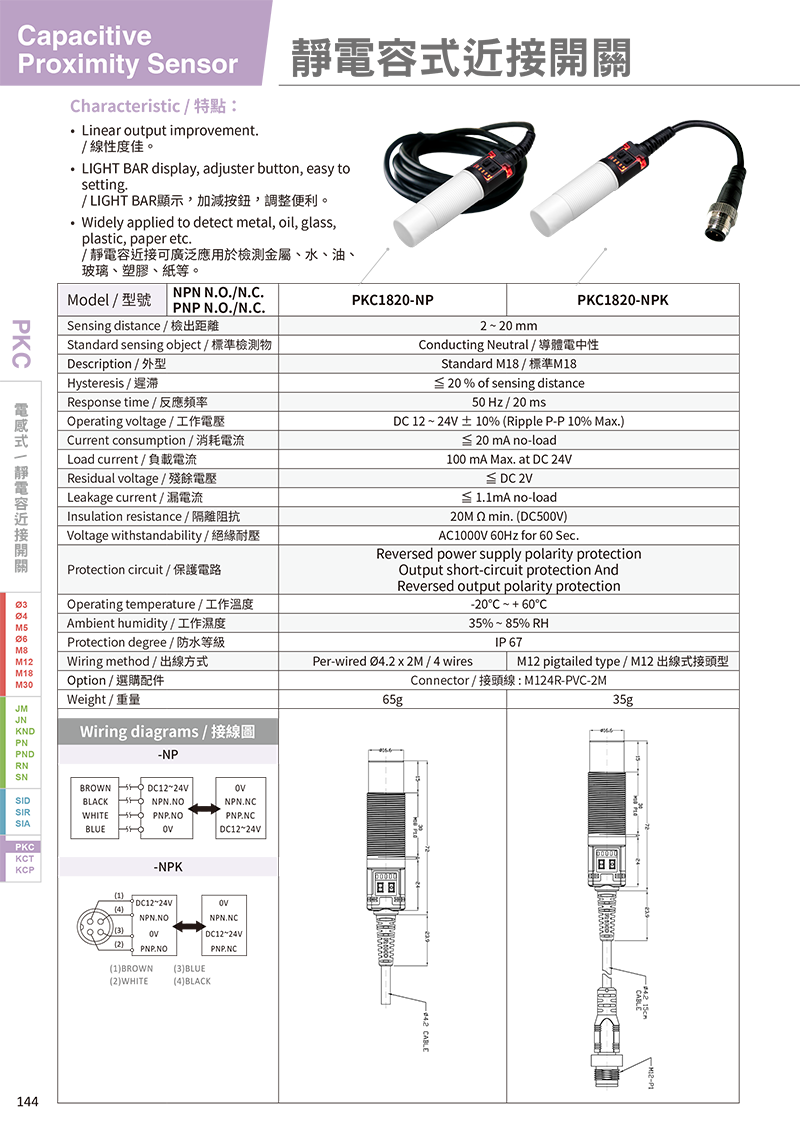

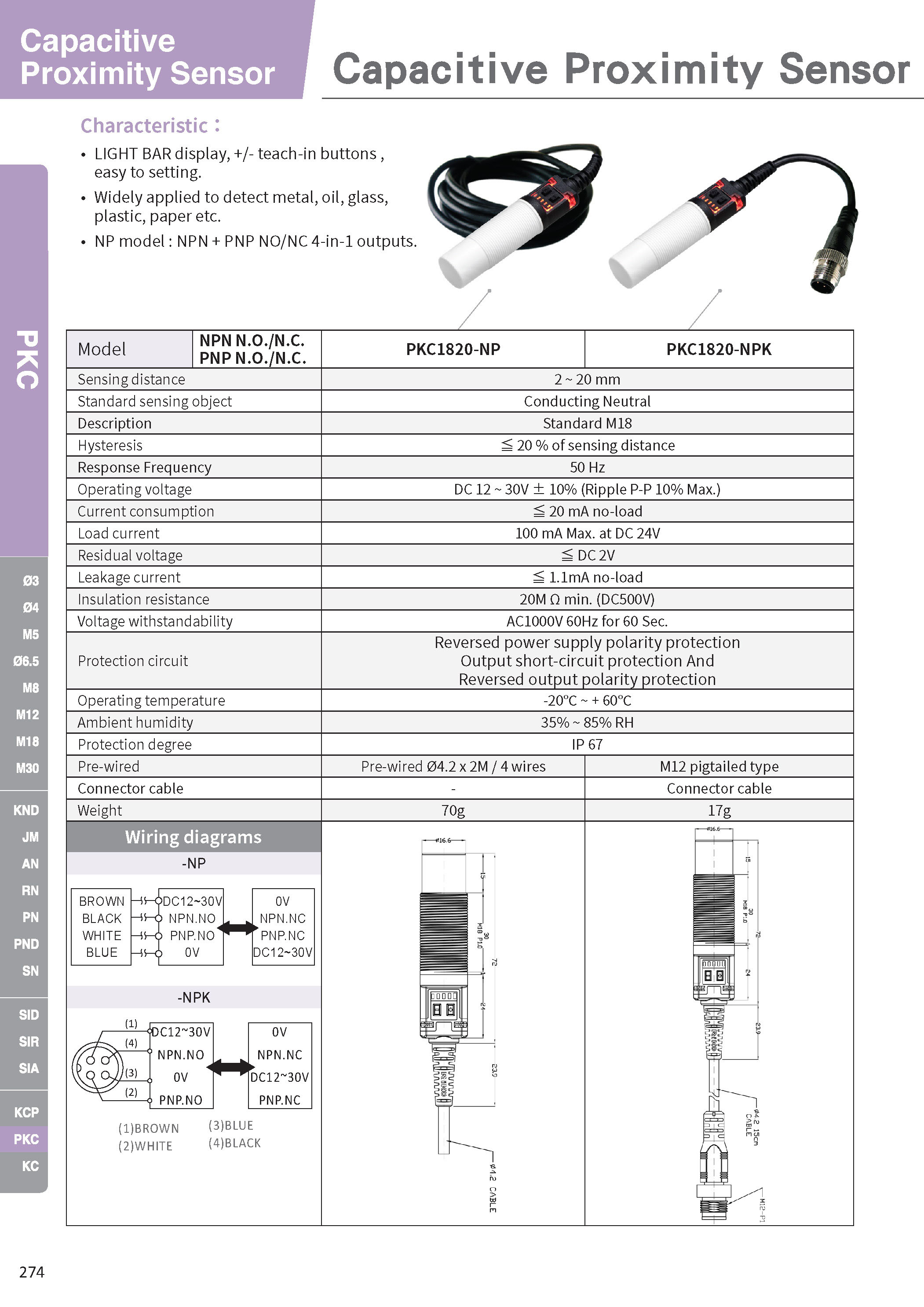

Specification
| Model | Capacitive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. / N. C. , PNP N.O. / N. C |
| Detection distance | 2 ~ 20 mm |
| Standard sensing object | Conducting Neutral |
| Description | Standard M18 |
| Hysteresis | ≦20 % of sensing distance |
| Response time | 50 Hz |
| Operating voltage | DC 12 ~ 24V |
| Current consumption | ≦ 20 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 2V |
| Leakage current | ≦ 1.1mA no-load |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Protection circuit | Reversed power supply polarity protection Output short-circuit protection And Reversed output polarity protection |
| Opera tetemperature | 20℃ ~ + 60℃ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP 67 |

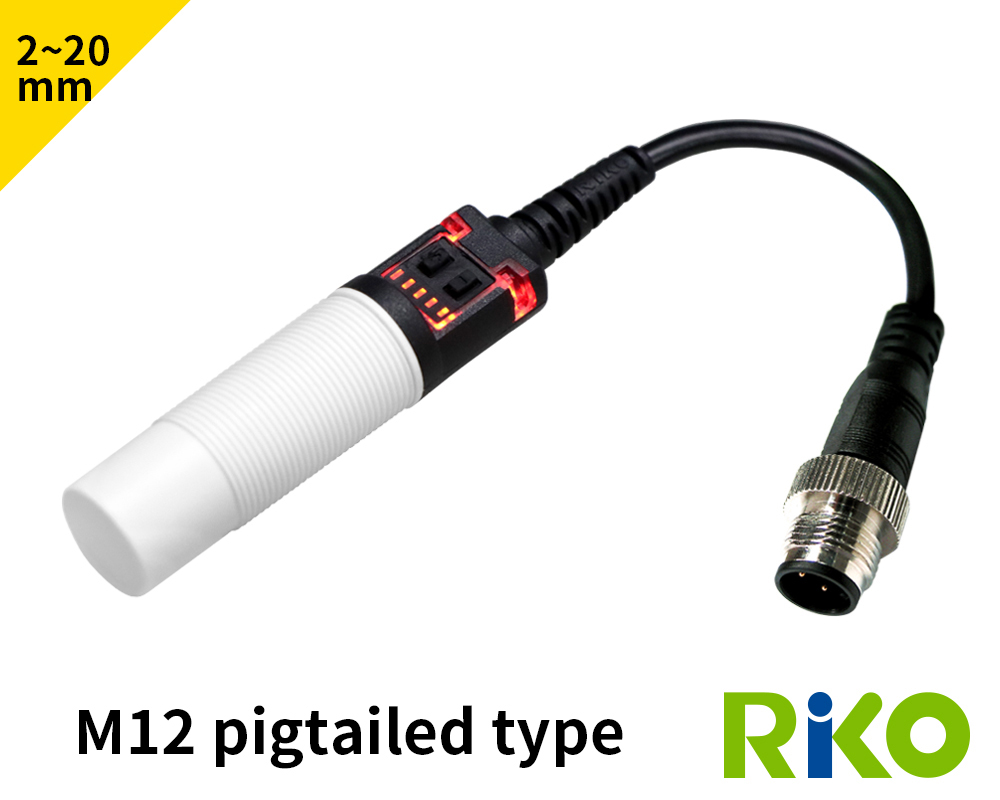

| Wiring method | M12 pigtailed type |
| Option | Connector : M124R-PVC-2M |
| Weight | 17g |
