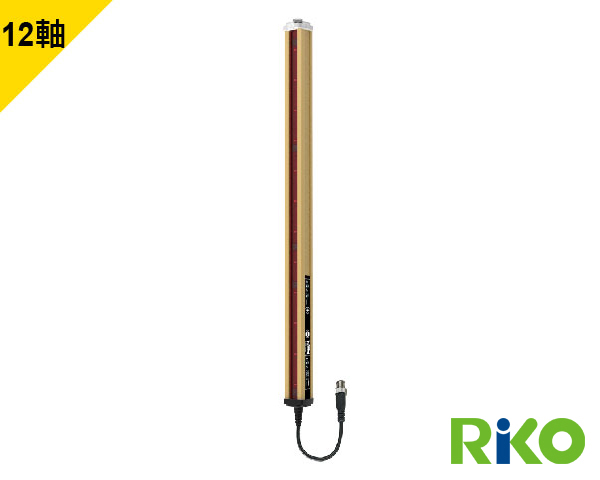

ASP-S4012-NK Area Sensor
• Big and bright LED output indicator.
• Area reflection detection.
Description
Specification
| Model / Type | NPN L.on/D.on |
|---|---|
| Sensing distance | Diffuse reflection |
| Detection height | 440 mm |
| Detection distance | 2 cm ~ 150 cm |
| Resolutio | Ø 80 mm White opaque object |
| Auto teach | Hall effect |
| Running type | More than one beam is reflection ON (Light On) |
| Operating voltage | DC12 ~ 24 V±10% (ripple P-P：10% Max.) |
| Current consumption | 105mA Max./24V |
| Load current | 100 mA Max. at DC 24V |
| Protection circuit | Power Reversed circuit protection, Short circuit protection output. |
| Light Emitter | Emitting light : 940 nm VCSEL |
| No. of Beams | 12 |
| Beam pitch | 40 mm |
| Indication LED | Red light indicator headlight |
| Reaction time | 30 ms |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | - 10 ℃ ~ + 45℃ ( No frost allowed ) |
| Operating temperature | 35% ~ 85% RH |
| Storage temperature | - 10 ℃ ~ + 45℃ (No frost allowed ) |
| Storage humidity | 35% ~ 95% RH |
| Protection degree | IP62 |
| Casing material | Aluminum & PC & PA66 |
| Wiring method | M12 pigtailed type ( 4P ) |
| Option | Connectors: M124R-PVC-2M |
| Weight | 460g |
