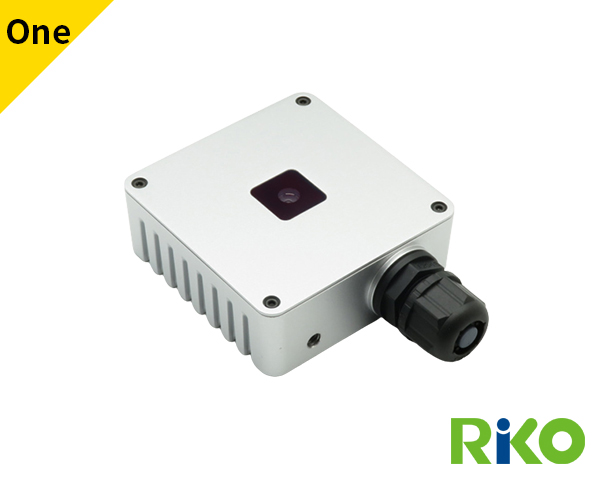

OAK-1 PoE

The OAK-1 PoE employs Power-over-Ethernet (PoE) for both communication and power, and is a more rugged version of the OAK-1 thanks to its IP67 sealed casing. The OAK-1-PoE baseboard offers full 802.3af, Class 3 PoE compliance with 1000BASE-T speeds, and includes one on-board camera which implements RGB vision, allowing for on-device AI processing.

Description

Main Features:

  • 802.3af PoE, 1 Gbps Ethernet
  • IP67 Sealed casing/protection
  • 16GB Internal Storage (eMMC)
  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Run any AI model, even custom architectured/built ones
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
  • Object tracking: 2D and 3D tracking
  • Dimension: 82x114x32 mm
  • Weight: 294g



Specification
Sensor IMX378
DFOV / HFOV / VFOV 81° / 69° / 55°
Resolution 12MP (4032x3040)
Focus Auto-Focus: 8cm - ∞
Max Framerate 60 FPS
F-number 2.0
Lens size 1/2.3 inch
