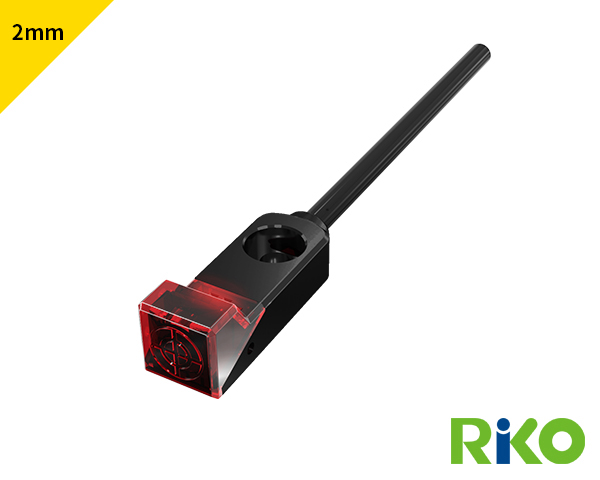

JN02-N Rectangular Inductive Proximity Sensor
• Surge absorption, load protection
• Metal casing, rugged and durable
• Easy fixation with a single screw
Description
Specification
| Model | Rectangular Inductive Proximity Sensor |
|---|---|
| Model / Type | NPN N.O. |
| Detection distance | 2 mm |
| Secure sensing distance | 0 ~１.6 mm |
| Standard sensing object | Iron 8 x 8 x 1mm |
| Sensing distance | Top surface |
| Description | Standard M8 |
| Hysteresis | ≦10 % of sensing distance |
| Response time | 500 Hz |
| Operating voltage | DC 12 ~ 30V |
| Current consumption | ≦ 8 mA no-load |
| Load current | 100 mA Max. at DC 24V |
| Residual voltage | ≦ DC 1.5V |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃ |
| Protection degree | IP 66 |
| Option | |
| Wiring method | Pre-wire Ø3 x 2M / 3wires |
| Weight | 26g |
