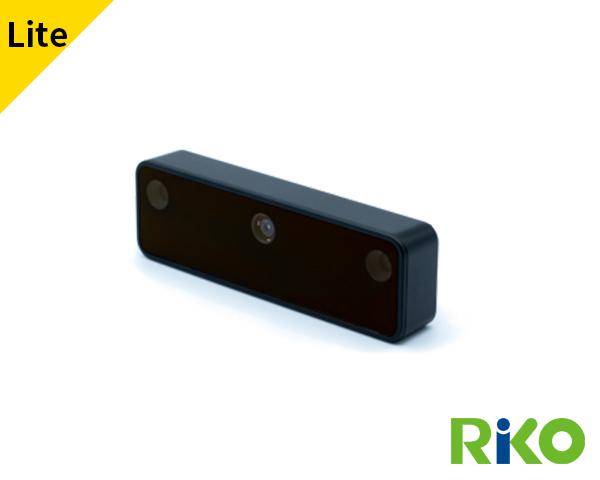

OAK-D-Lite Visual Elevator Fence

Awards:

Main Features:

• USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
• BMI270 IMU, 6-axis sensor combining accelerometer and gyroscope
• 4 TOPS of processing power (1.4 TOPS for AI)
• Run any AI model, even custom architectured/built ones
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
• Stereo depth perception at 200FPS+ with filtering
• Object tracking: 2D and 3D tracking
• Dimensions: 91x28x17.5 mm
• Weight: 61g

Available in two variants:

The OAK-D Lite is available in two variants: Fixed-Focus and Auto-Focus. These variants differ only in the configuration of the center color camera. The Fixed-Focus variant has the lens fixed in place mechanically, whereas the Auto-Focus has an electromagnet that controls the lens position dynamically. Both variants can clearly see objects 50 cm and beyond.

• Auto-Focus cameras are recommended for close objects between 10 cm to 50 cm of the device (see video). They can also be manually set to a specific focus position utilizing the DepthAI API.
• Fixed-Focus cameras are recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see video).

Central RGB Camera Specifications:

Stereo Pair Cameras Specification:
