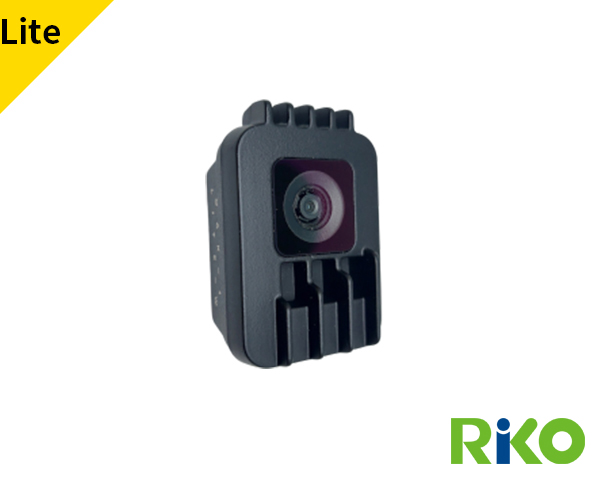

The OAK-1-Lite-W Visual Elevator Fence Discontinued

The OAK-1-Lite-W is perfectly suited for scenarios that require the processing power of the Robotics Vision Core 2 VPU (RVC2) but without the need for depth perception. It is a variant of OAK-1-Lite but with a Wider Field of View, making it ideal for a diverse range of projects.

Quick contact
Description

Product Discontinued

For more information, please feel free to Sales@riko.com



Main Features:

  • USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Run any AI model, even custom architectured/built ones
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
  • Dimension: 36x54.5x27.8 mm
  • Weight: 53.1g





Specification
Sensor IMX214
DFOV / HFOV / VFOV 117°/105°/88°
Resolution 13MP (4208x3120)
Focus FF: 50cm - ∞
Max Framerate 60 FPS
Pixel size 1.12µm x 1.12µm
Lens size 1/3.1 inch
