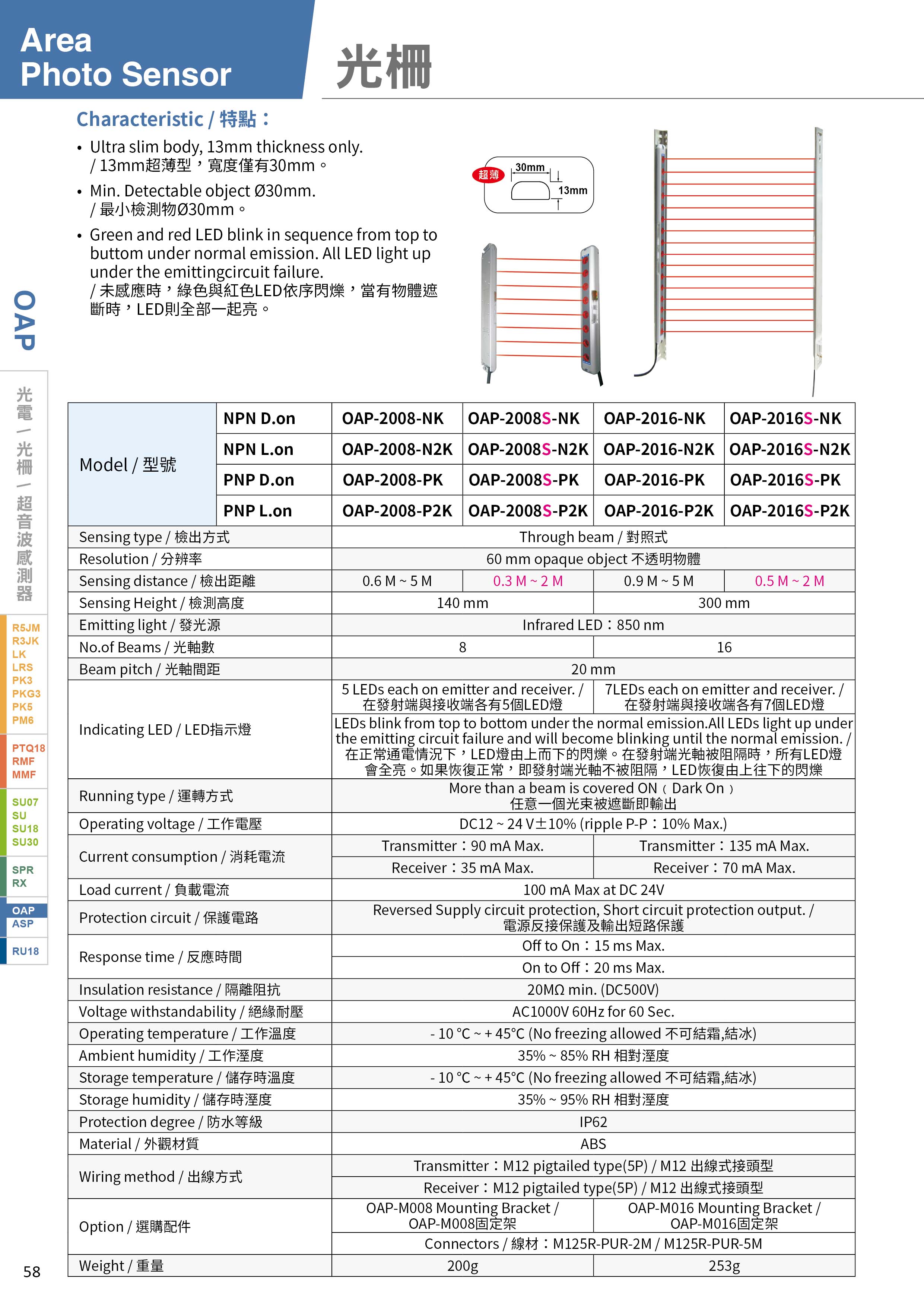

OAP-2008-NK Area Sensor
• Ultra slim body, 13mm thickness only.
• Min. Detectable object Ø25mm.
Description
Specification
| Model / Type | NPN D.on |
|---|---|
| Sensing distance | Through beam |
| Resolutio | Ø 25 mm opaque object 不透明物體 |
| Detection distance | 0.6 M ~ 5 M |
| Detection height | 140 mm |
| Light Emitter | infrared LED : 850nm |
| No. of Beams | 8 |
| Beam pitch | 20 mm |

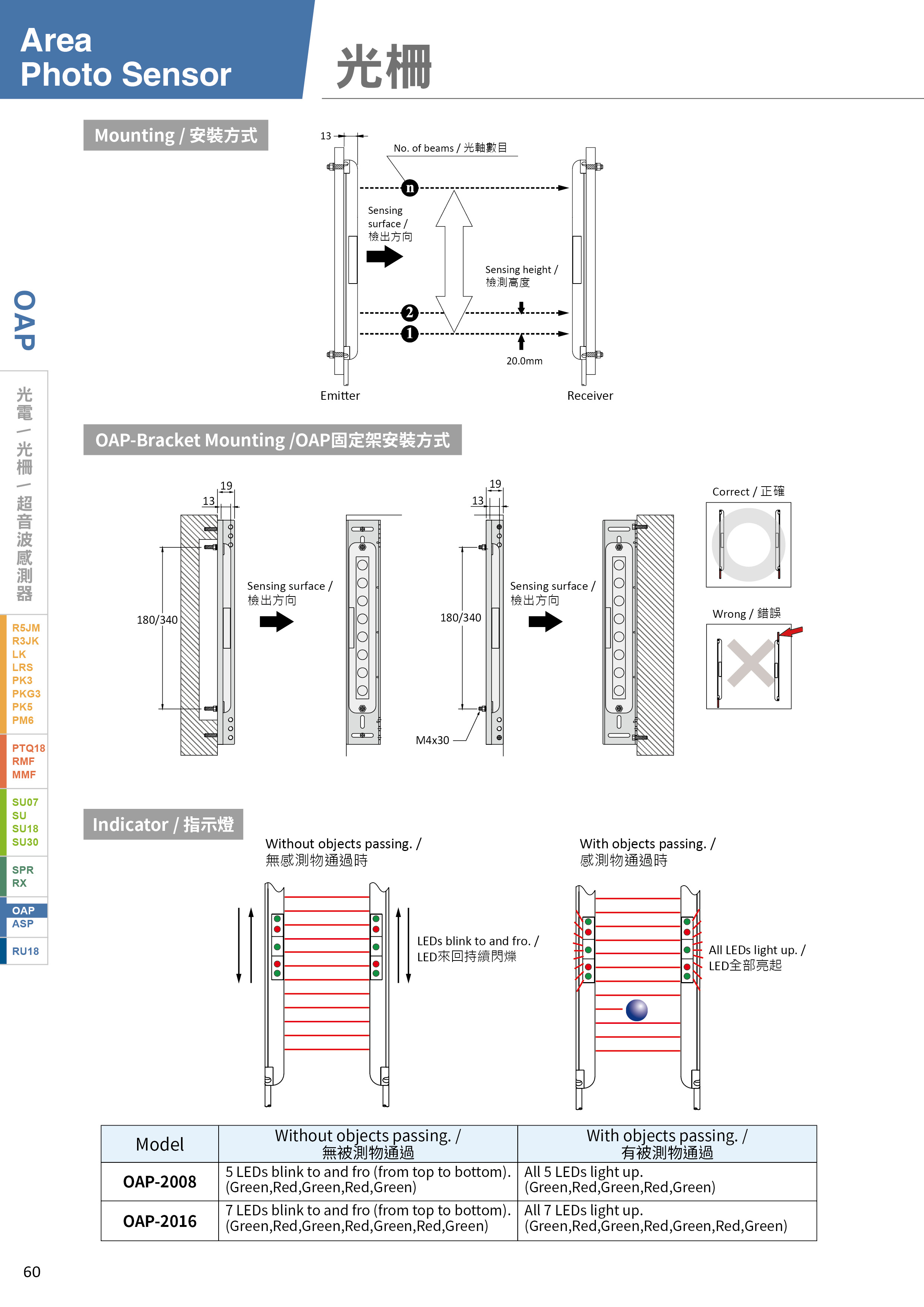

| Indication LED | LEDs blink from top to bottom under the normal emission.All LEDs light up under the emitting circuit failure and will become blinking until the normal emission. |
| Running type | More than one beam is covered ON (Dark On) |
| Operating voltage | DC12 ~ 24 V±10% (ripple P-P：10% Max.) |
| Current consumption | Transmitter : 90 mA Max. Receiver : 35 mA Max. |
| Load current | 100 mA Max at DC 24V |
| Protection circuit | Reversed Supply circuit protection, Short circuit protection output |

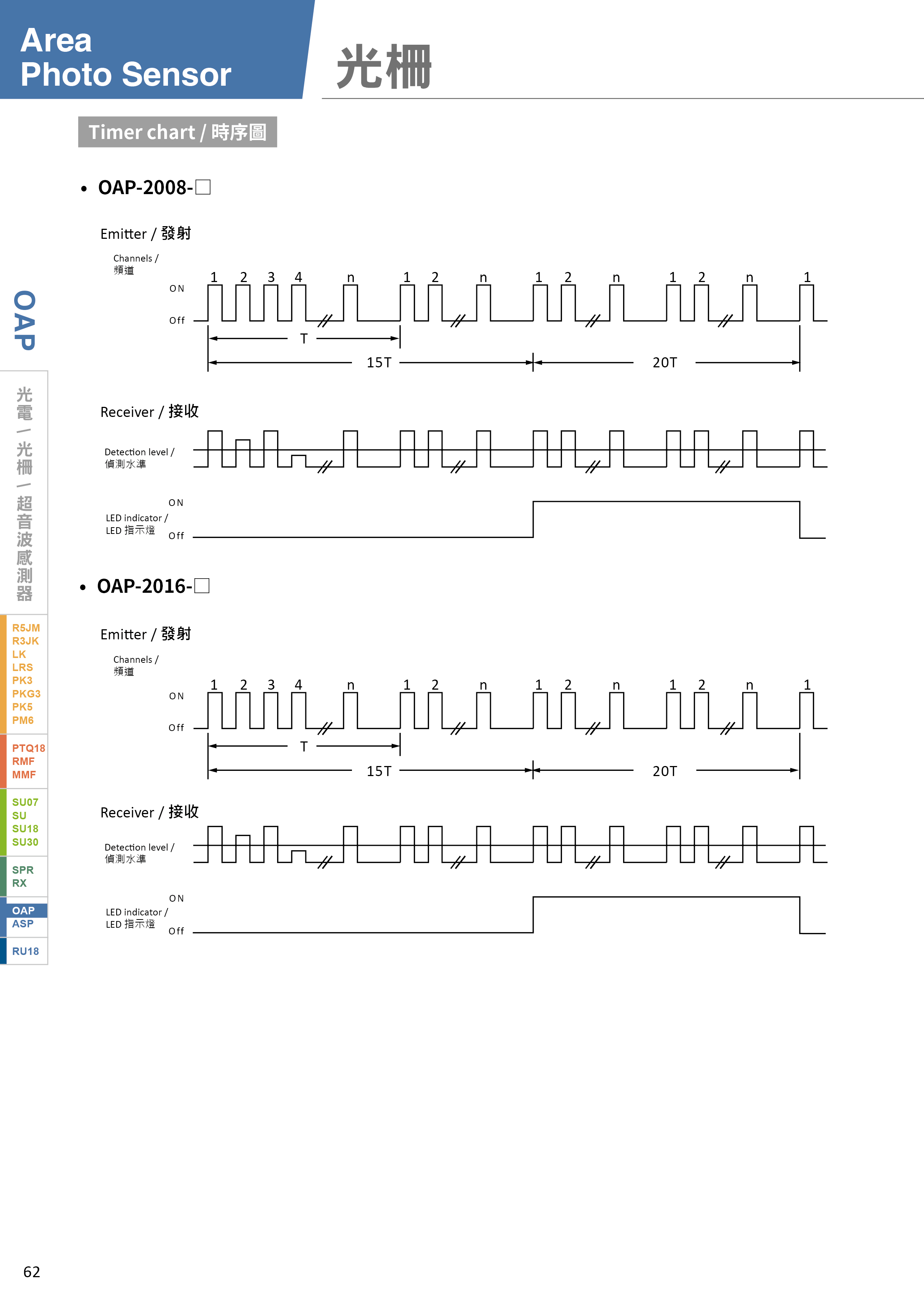

| Reaction time | Off to On : 15 ms Max. On to Off : 20 ms Max. |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | - 10 ℃ ~ + 45℃ (No freezing allowed ) |
| Operating temperature | 35% ~ 85% RH |
| Storage temperature | - 10 ℃ ~ + 45℃ (No freezing allowed ) |
| Storage humidity | 35% ~ 95% RH |
| Protection degree | IP62 |
| Casing material | ABS |

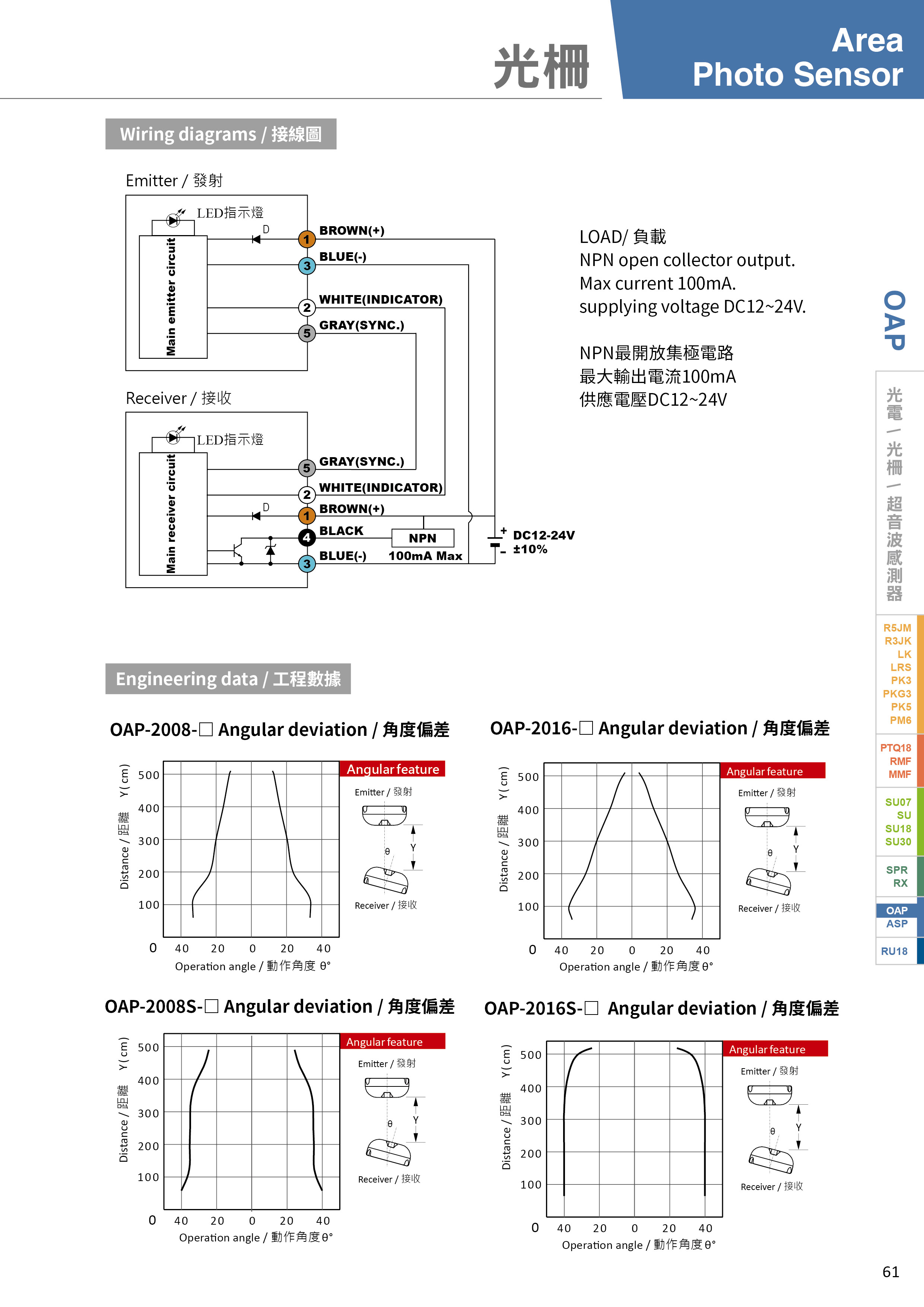

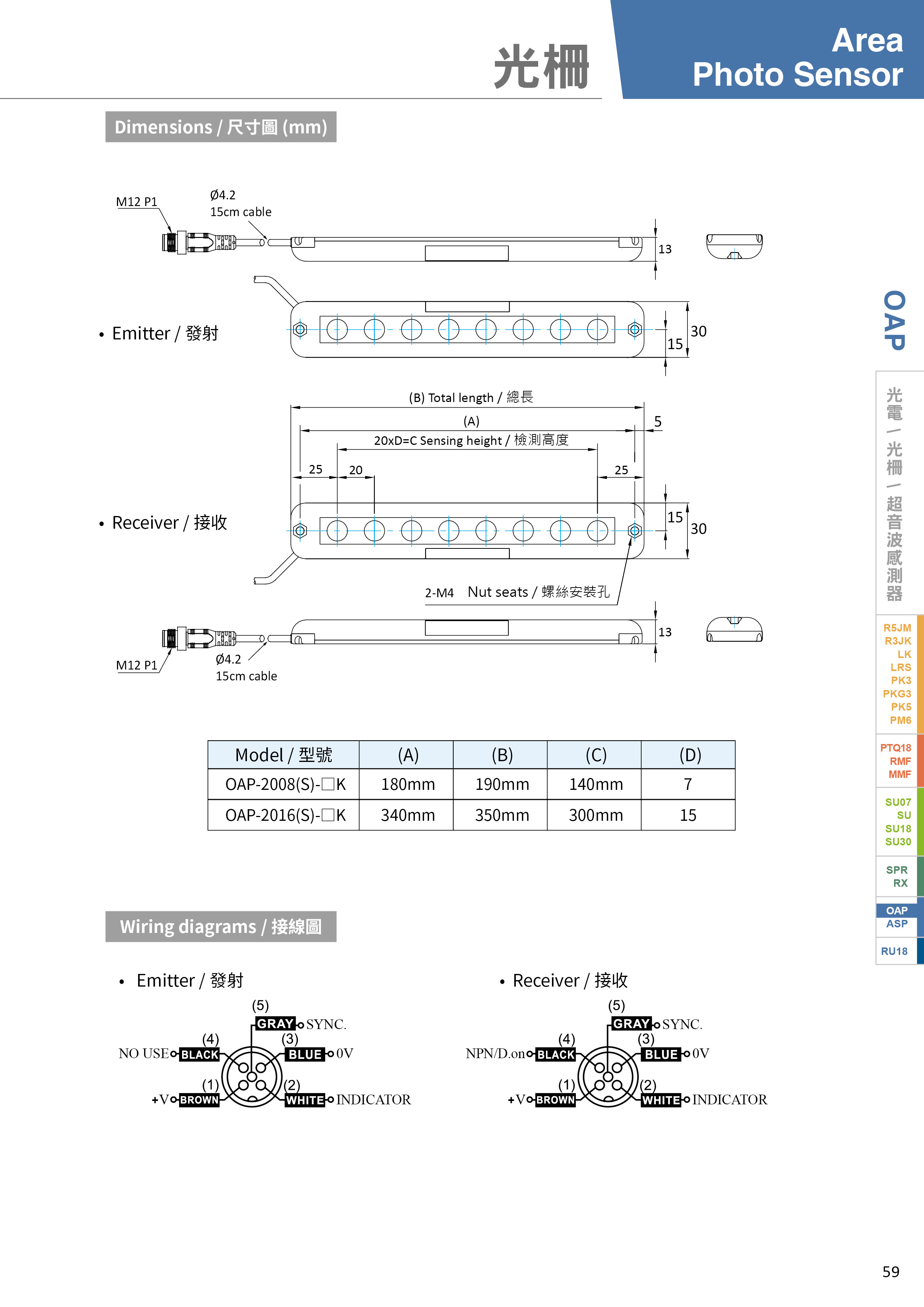

| Wiring method | Transmitter : M12 pigtailed type / Receiver : M12 pigtailed type |
| Option | Mounting Bracket : OAP-M008 / Connectors: M125R-PVC-2M / M125R-PVC-5M |
| Weight | 200g |
