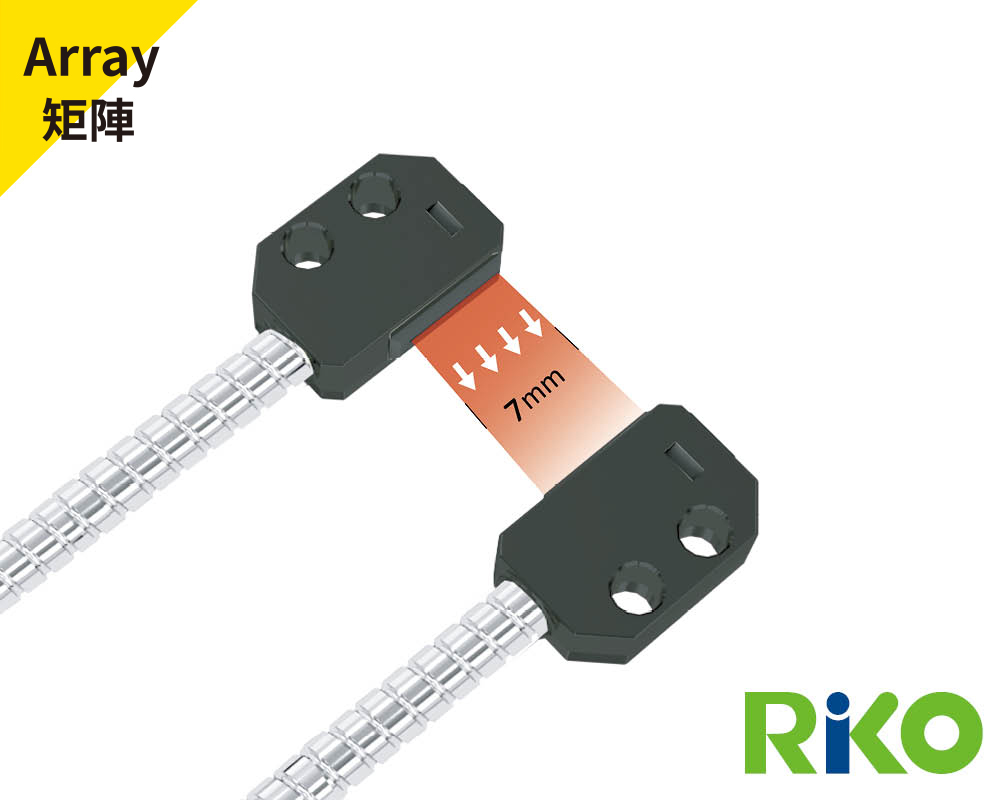

PT-015MLD-20 Array Fiber optics
• Fiber Type：Lens built in Array Fiber optics Sensor
• Mini.bending radius : R60
• Replaceable FT-15MLD-30 / FT-15MLD-20 / FT-15MLD-10
Description
Specification
| Model | Reflective Array Fiber optics |
|---|---|
| Fiber diameter | OD=Ø3.8 ; ID=Ø0.25x30 |
| SD | 230mm |
| Sensing width* | 7mm |
| Opera tetemperature | -55℃~+70℃ |
| Mini.bending radius | R40 |
