OAK-1-Lite Visual Elevator Fence Discontinued

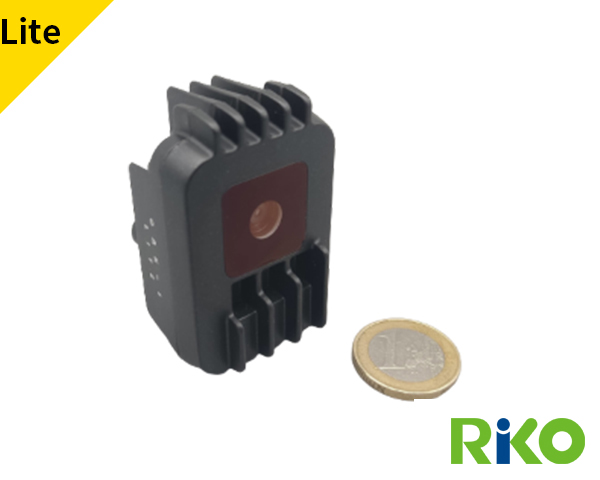

The OAK-1-Lite is the lightweight version of our OAK-1, employing a different 13MP color camera. It is perfectly suited for scenarios that require the processing power of the Robotics Vision Core 2 VPU (RVC2) but without the need for depth perception.

Quick contact
Description

Product Discontinued

For more information, please feel free to Sales@riko.com



Main Features:

  • USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Run any AI model, even custom architectured/built ones
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
  • Object tracking: 2D and 3D tracking
  • Dimension: 36x54.5x27.8 mm
  • Weight: 53.1g



Available in two variants:

The OAK-1 is available in two variants: Fixed-Focus and Auto-Focus. These variants differ only in the configuration of the center color camera. The Fixed-Focus variant has the lens fixed in place mechanically, whereas the Auto-Focus has an electromagnet that controls the lens position dynamically. Both variants can clearly see objects 50 cm and beyond.

  • Auto-Focus cameras are recommended for close objects between 10 cm to 50 cm of the device (see video). They can also be manually set to a specific focus position utilizing the DepthAI API.
  • Fixed-Focus cameras are recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see video).



Specification
Sensor IMX214
DFOV / HFOV / VFOV 81° / 69° / 54°
Resolution 13MP (4208x3120)
Focus AF: 8cm - ∞ OR FF: 50cm - ∞
Max Framerate 60 FPS
F-number 2.2 ± 5%
Lens size 1/3.1 inch
